Toshiba Semiconductor and Storage|场效应晶体管（FETs）、MOSFETs - 页 22

厂商料号	库存情况	价格	数量	数据表	系列	封装/外壳	包装	产品状态	FET 类型	技术	电流 - 连续漏极 (Id) @ 25°C	驱动电压（最大导通电阻，最小导通电阻）	导通电阻 (Rds On)（最大值）@ Id, Vgs	安装类型	栅极阈值电压 (Vgs(th)）（最大值）@ Id	栅极电荷 (Qg)（最大值）@ Vgs	漏极到源极电压 (Vdss)	栅极电压 (Vgs)（最大值）	输入电容 (Ciss)（最大值）@ Vds	认证	FET 特性	供应商设备封装	等级	功耗（最大值）	工作温度
TPHR9203PL1,LQ UMOS9 SOP-ADV(N) PD=170W F=1MHZ Toshiba Semiconductor and Storage	6,098	-	询价单	数据表	U-MOSIX-H	8-PowerTDFN	Tape & Reel (TR)	Active	N-Channel	MOSFET (Metal Oxide)	150A (Tc)	4.5V, 10V	0.92mOhm @ 50A, 10V	Surface Mount	2.1V @ 500µA	81 nC @ 10 V	30 V	±20V	7540 pF @ 15 V	-	-	8-SOP Advance (5x5.75)	-	960mW (Ta), 170W (Tc)	175°C

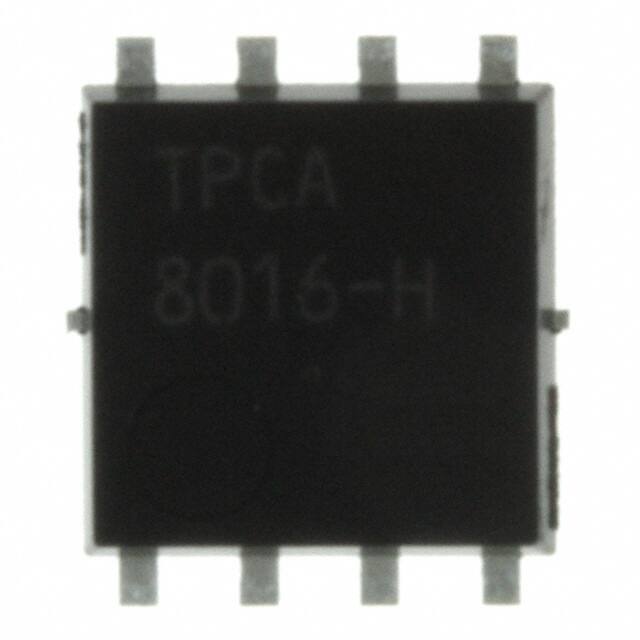

TPCA8016-H(TE12LQM MOSFET N-CH 60V 25A 8-SOPA Toshiba Semiconductor and Storage	2,341	-	询价单	数据表	-	8-PowerVDFN	Digi-Reel®	Obsolete	N-Channel	MOSFET (Metal Oxide)	25A (Ta)	-	21mOhm @ 13A, 10V	Surface Mount	2.3V @ 1mA	22 nC @ 10 V	60 V	-	1375 pF @ 10 V	-	-	8-SOP Advance (5x5)	-	-	-
TK33S10N1Z,LQ MOSFET N-CH 100V 33A DPAK Toshiba Semiconductor and Storage	977	-	询价单	数据表	U-MOSVIII-H	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	N-Channel	MOSFET (Metal Oxide)	33A (Ta)	10V	9.7mOhm @ 16.5A, 10V	Surface Mount	4V @ 500µA	28 nC @ 10 V	100 V	±20V	2050 pF @ 10 V	-	-	DPAK+	-	125W (Tc)	175°C (TJ)
TK60S10N1L,LXHQ MOSFET N-CH 100V 60A DPAK Toshiba Semiconductor and Storage	3,764	-	询价单	数据表	U-MOSVIII-H	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	N-Channel	MOSFET (Metal Oxide)	60A (Ta)	6V, 10V	6.11mOhm @ 30A, 10V	Surface Mount	3.5V @ 500µA	60 nC @ 10 V	100 V	±20V	4320 pF @ 10 V	-	-	DPAK+	-	180W (Tc)	175°C
TK8P60W5,RVQ MOSFET N-CH 600V 8A DPAK Toshiba Semiconductor and Storage	4,072	-	询价单	数据表	DTMOSIV	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	N-Channel	MOSFET (Metal Oxide)	8A (Ta)	10V	560mOhm @ 4A, 10V	Surface Mount	4.5V @ 400µA	22 nC @ 10 V	600 V	±30V	590 pF @ 300 V	-	-	DPAK	-	80W (Tc)	150°C (TJ)
TPCA8008-H(TE12L,Q MOSFET N-CH 250V 4A 8SOP Toshiba Semiconductor and Storage	9,363	-	询价单	数据表	-	8-PowerVDFN	Tape & Reel (TR)	Obsolete	N-Channel	MOSFET (Metal Oxide)	4A (Ta)	10V	580mOhm @ 2A, 10V	Surface Mount	4V @ 1mA	10 nC @ 10 V	250 V	±20V	600 pF @ 10 V	-	-	8-SOP Advance (5x5)	-	1.6W (Ta), 45W (Tc)	150°C (TJ)
TPH8R008NH,L1Q MOSFET N-CH 80V 34A 8SOP Toshiba Semiconductor and Storage	8,924	-	询价单	数据表	U-MOSVIII-H	8-PowerVDFN	Tape & Reel (TR)	Active	N-Channel	MOSFET (Metal Oxide)	34A (Tc)	10V	8mOhm @ 17A, 10V	Surface Mount	4V @ 500µA	35 nC @ 10 V	80 V	±20V	3000 pF @ 40 V	-	-	8-SOP Advance (5x5)	-	1.6W (Ta), 61W (Tc)	150°C (TJ)
TPH5R906NH,L1Q MOSFET N-CH 60V 28A 8SOP Toshiba Semiconductor and Storage	24,969	-	询价单	数据表	U-MOSVIII-H	8-PowerVDFN	Tape & Reel (TR)	Active	N-Channel	MOSFET (Metal Oxide)	28A (Ta)	10V	5.9mOhm @ 14A, 10V	Surface Mount	4V @ 300µA	38 nC @ 10 V	60 V	±20V	3100 pF @ 30 V	-	-	8-SOP Advance (5x5)	-	1.6W (Ta), 57W (Tc)	150°C (TJ)
TK290P60Y,RQ MOSFET N-CH 600V 11.5A DPAK Toshiba Semiconductor and Storage	3,958	-	询价单	数据表	DTMOSV	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	N-Channel	MOSFET (Metal Oxide)	11.5A (Tc)	10V	290mOhm @ 5.8A, 10V	Surface Mount	4V @ 450µA	25 nC @ 10 V	600 V	±30V	730 pF @ 300 V	-	-	DPAK	-	100W (Tc)	150°C (TJ)
XPH3R206NC,L1XHQ MOSFET N-CH 60V 70A 8SOP Toshiba Semiconductor and Storage	14,955	-	询价单	数据表	U-MOSVIII-H	8-PowerVDFN	Tape & Reel (TR)	Active	N-Channel	MOSFET (Metal Oxide)	70A (Ta)	-	3.2mOhm @ 35A, 10V	Surface Mount	2.5V @ 500µA	65 nC @ 10 V	60 V	±20V	4180 pF @ 10 V	AEC-Q101	-	8-SOP Advance (5x5)	Automotive	960mW (Ta), 132W (Tc)	175°C

共 814 条记录«上一页 1... 18 19 20 212223 24 25...82 下一页»
