直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0924G4011FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 4.56 W | CSA, TUV, UL | 3900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
109P0812H6D01FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 31.0dB(A) | 2.52 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
G6015E24B-AGR-EMFAN AXIAL 60X15MM 24VDC WIRE |
5 | - |
|
数据表 |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 5200 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|

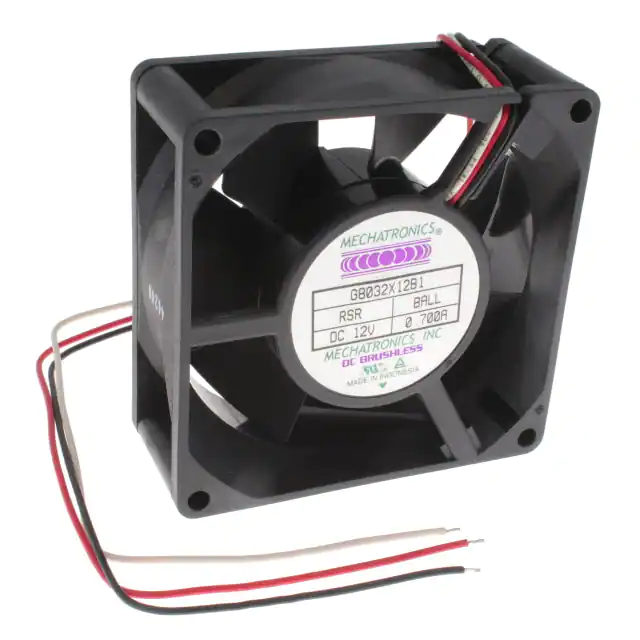

G8032X12B1-RSRFAN AXIAL 80X32MM 12VDC WIRE |
4 | - |
|
数据表 |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 0.286 lb (129.73 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.00mm | - | - | CE, cUL, TUV, UL | - | - | 3 Wire Leads | - |
|
F1238E48B-FHRFAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 121.0 CFM (3.39m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 0.097 lb (44 g) | Tubeaxial | Auto Restart | 38.00mm | 44.0dB(A) | - | CE, cUL, TUV, UL | 3300 RPM | - | 2 Wire Leads | - |
|
|

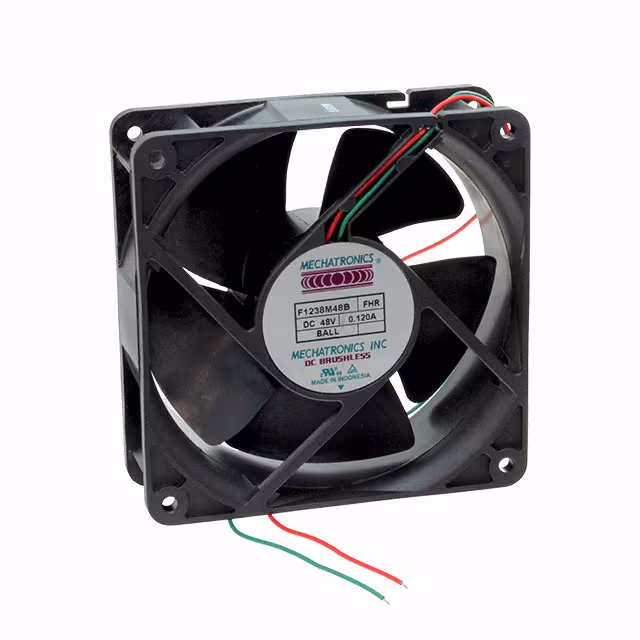

F1238M48B-FHRFAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 103.0 CFM (2.88m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.59 lb (267.62 g) | Tubeaxial | Auto Restart | 38.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2700 RPM | - | 2 Wire Leads | - |
|
MR9238M12B-FSRFAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 131.0 CFM (3.67m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Auto Restart | 38.00mm | 55.4dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|
MR9232H24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 85.0 CFM (2.38m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Auto Restart | 32.00mm | 49.7dB(A) | - | CE, cUL, TUV, UL | 4400 RPM | - | 2 Wire Leads | - |
|
F8025E24B-FHR-EM-L19FAN AXIAL 80X25MM 24VDC WIRE |
2 | - |
|
数据表 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
MQ8038L24B-FSRFAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MQ8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 61.5 CFM (1.72m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 2 Wire Leads | - |
|
F1238E12B1-FSR-L24FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 126.0 CFM (3.53m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|

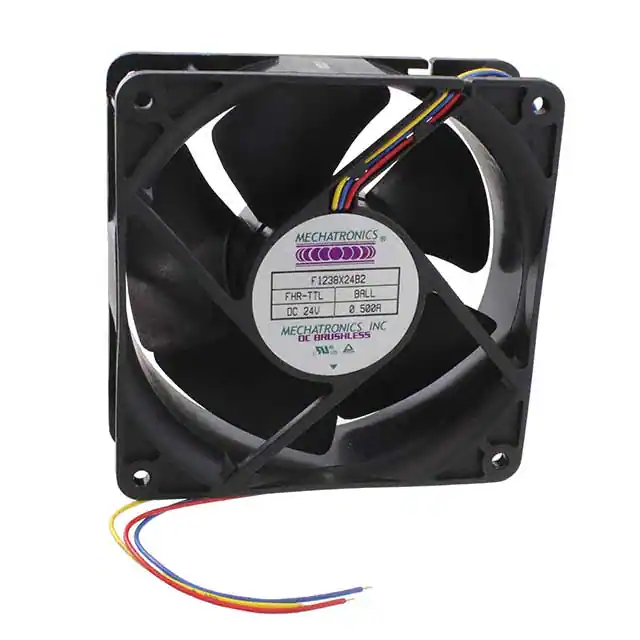

F1238X24B2-FHR-TTLFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
F1238-H | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.59 lb (267.62 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 47.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
G8032H12B1-RSR-EMFAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 48.0 CFM (1.34m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
109P0412K301FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 50.0dB(A) | - | CSA, TUV, UL | 15500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

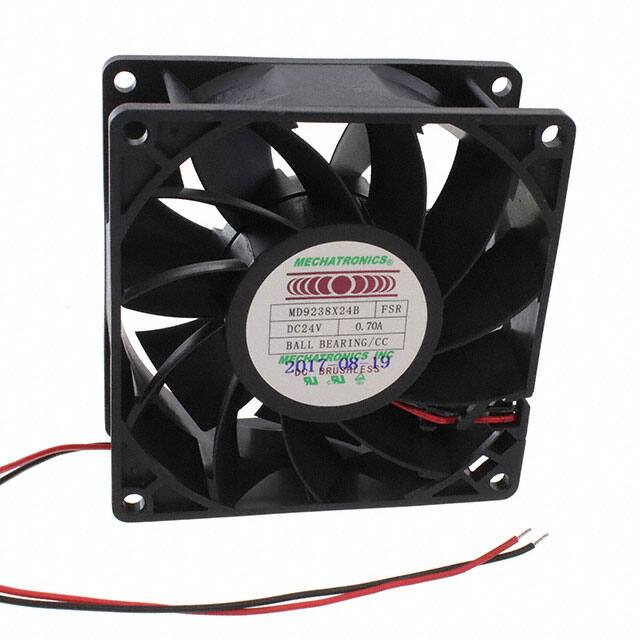

MD9238X24B-FSR-CCFAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 38.00mm | 58.4dB(A) | - | CE, TUV, UL | 5400 RPM | - | 2 Wire Leads | - |
|
DC0803812M2B-2T0FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 79.0 CFM (2.21m³/min) | 0.760 in H2O (189.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 53.0dB(A) | 9.12 W | CE, cURus, TUV | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9RA0912S40011FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.4 W | cURus, TUV | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
MD4028X24B-RSR-CCFAN AXIAL 40X28MM 24VDC WIRE |
4 | - |
|
数据表 |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 28.00mm | 47.3dB(A) | - | cUL, TUV, UL | 11500 RPM | - | 2 Wire Leads | - |
|
G9225H12B6-FSR-EMFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
E1225E12B1+3-FSRFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.434 lb (196.86 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP), Thermistor | 25.00mm | 44.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 3 Wire Leads | - |
