直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

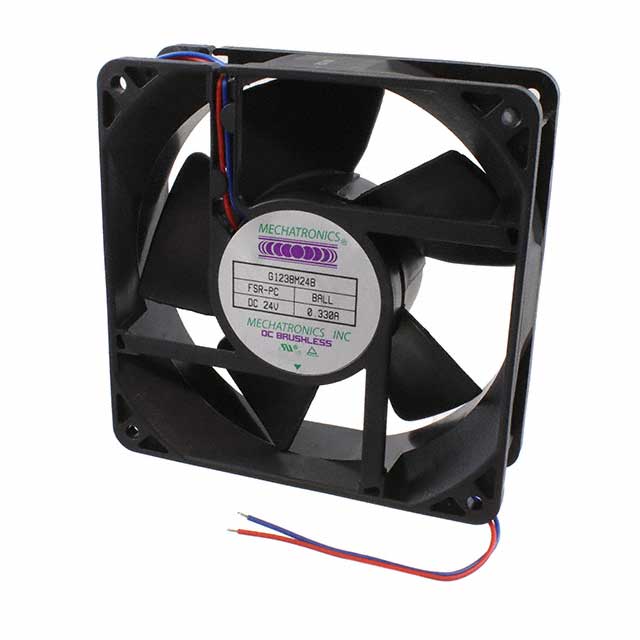

G1238M24B-FSR-PCFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Parylene Coating, Thermal Overload Protector (TOP) | 38.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
G1225L12B2-FSRFAN AXIAL 120X25MM 12VDC WIRE |
3 | - |
|
数据表 |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 66.0 CFM (1.85m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.436 lb (197.77 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 25.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 1800 RPM | - | 3 Wire Leads | - |
|

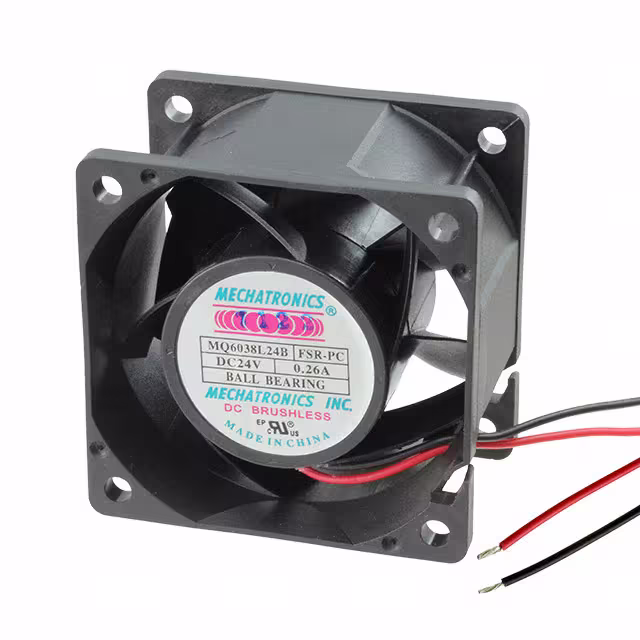

MQ6038L24B-FSR-PCFAN AXIAL 60X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MQ6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.910 in H2O (226.7 Pa) | Ball | 0.234 lb (106.14 g) | Tubeaxial | - | 38.00mm | 53.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
G8025H12B2-RSRFAN 80X25MM BALL 12VDC WIRE |
5 | - |
|
数据表 |
G8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | - | Locked Rotor Sensor | 25.00mm | - | - | CE, cUL, TUV, UL | - | - | 3 Wire Leads | - |
|
BFB0724LFAN BLOWER 75.7X30MM 24VDC WIRE |
3 | - |
|
数据表 |
BFB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 7.0 CFM (0.196m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.211 lb (95.71 g) | Blower | Locked Rotor Protection | 30.00mm | 26.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD4028-12HBXC01AFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4028 XC | Box | Active | 12VDC | Square - 40mm L x 40mm H | 26.5 CFM (0.742m³/min) | 1.600 in H2O (398.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 57.0dB | 9.5 W | cURus, TUV | 16000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
EEC0254B2-000U-A99FAN AXIAL 120X25MM 48VDC WIRE |
0 | - |
|
数据表 |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart | 25.00mm | 40.5dB(A) | 3.8 W | CE, CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9GAX0412P3S025FAN AXL 40X28MM 12VDC RECT CONN |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.117 lb (53.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 64.0dB(A) | - | - | 25000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Position Rectangular Connector | - |
|

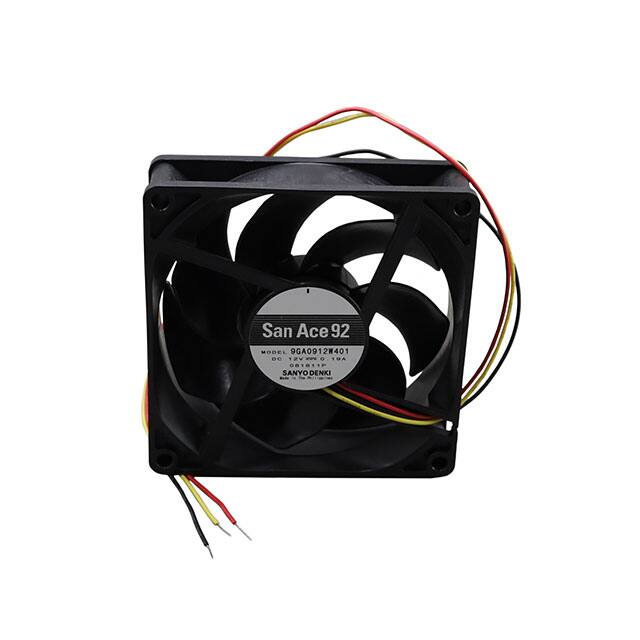

9GA0912W401FAN AXIAL 92X25MM 12VDC WIRE |
3 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | 2.28 W | - | - | - | 3 Wire Leads | - |
|
FFB0812VHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
2 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 57.2 CFM (1.60m³/min) | 0.424 in H2O (105.6 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 44.5dB(A) | 4.56 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
B1232H12B6-BSRFAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.706 lb (320.24 g) | Blower | PWM Control, Thermal Overload Protector (TOP) | 32.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
|
B1232M12B6-BSRFAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 24.0 CFM (0.672m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 0.706 lb (320.24 g) | Blower | PWM Control, Thermal Overload Protector (TOP) | 32.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 3 Wire Leads | - |
|
G1238E12B-FSR-EM-RLFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
MR1238H24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart | 38.00mm | 64.6dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 2 Wire Leads | - |
|
612NGMLEFAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.7 CFM (0.412m³/min) | - | Sintec | 0.146 lb (66.22 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 16.0dB(A) | 700 mW | CE, CSA, UL, VDE | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
F1238S12BT-FSRFAN AXIAL 119X38MM 12VDC TERM |
5 | - |
|
数据表 |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 83.0 CFM (2.32m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.00mm | 34.0dB(A) | - | CE, cUL, TUV, UL | 1800 RPM | - | 2 Terminals | - |
|
11938KA-12J-EL-00FAN AXIAL 119X38.4MM 12VDC WIRE |
1 | - |
|
数据表 |
11938KA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.40mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
B1232H24B1-BSR-SRFAN BLOWER 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.706 lb (320.24 g) | Blower | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
9GA0912M401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | 1.32 W | - | - | - | 3 Wire Leads | - |
|
AFB1212HE-F00FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 41.0dB(A) | 3.84 W | CE, CSA, UL, VDE | 2600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
