直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B7025M12B-BSRFAN BLOWER 69X25MM 12VDC WIRE |
23 | - |
|
数据表 |
B7025 | Bulk | Active | 12VDC | Square/Rounded - 69mm L x 66mm H | 7.8 CFM (0.218m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.121 lb (54.88 g) | Blower | Thermal Overload Protector (TOP) | 25.00mm | 35.0dB(A) | - | - | 2600 RPM | - | 2 Wire Leads | - |
|
F6025X12B1-RSR-TTLFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.156 lb (70.76 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 5200 RPM | - | 3 Wire Leads | - |
|

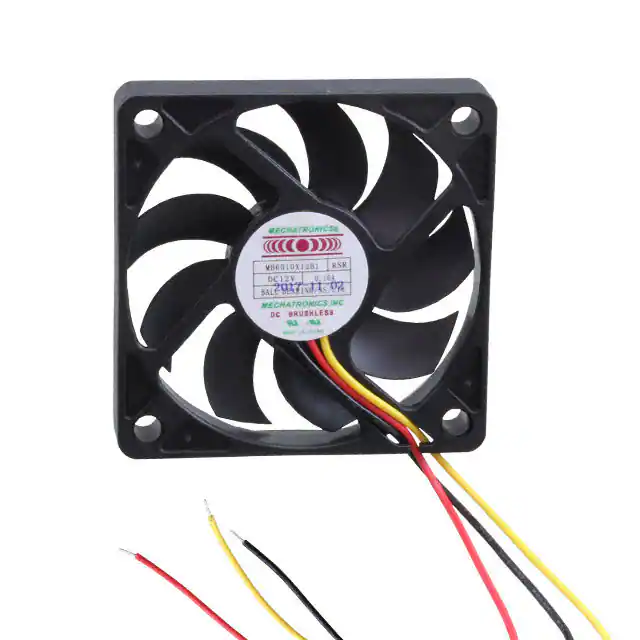

MB6010X12B1-RSR-NS-L18FAN AXIAL 60X10.2MM 12VDC WIRE |
0 | - |
|
数据表 |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.059 lb (26.76 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 10.20mm | 35.0dB(A) | - | cUL, UL | 5300 RPM | - | 3 Wire Leads | - |
|
|
F6025L05B-RSRFAN AXIAL 60X25MM BALL 5VDC WIRE |
8 | - |
|
数据表 |
F6025 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 24.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
MA3010H12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE |
1 | - |
|
数据表 |
MA3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 10.00mm | 28.0dB(A) | - | cUL, TUV, UL | 9000 RPM | - | 3 Wire Leads | - |
|
|
4549HQ/EG50060S1-C331-S9AFAN BLOWER 96.63X9.15MM 5VDC |
7 | - |
|
数据表 |
EG | Box | Active | 5VDC | Rectangular/Rounded - 96.63mm L x 75.66mm H | 5.7 CFM (0.157m³/min) | 0.630 in H2O (156.9 Pa) | Sleeve | 0.098 lb (44.45 g) | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 9.15mm | 44.4dB(A) | 1.9 W | CE, CSA, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
4551HQ/EG75050S1-C031-S9AFAN BLOWER 84X7.5MM 5VDC RECT |
4 | - |
|
数据表 |
EG | Box | Active | 5VDC | Rectangular/Rounded - 84mm L x 80.9mm H | 4.4 CFM (0.123m³/min) | 0.510 in H2O (127.0 Pa) | Sleeve | 0.098 lb (44.45 g) | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 7.50mm | 35.9dB(A) | 1.35 W | CE, CUR, TUV, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
DC0501512U2B-2T0FAN AXIAL 50X15MM 12VDC WIRE |
2 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | - | - | CE, cURus, TUV | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

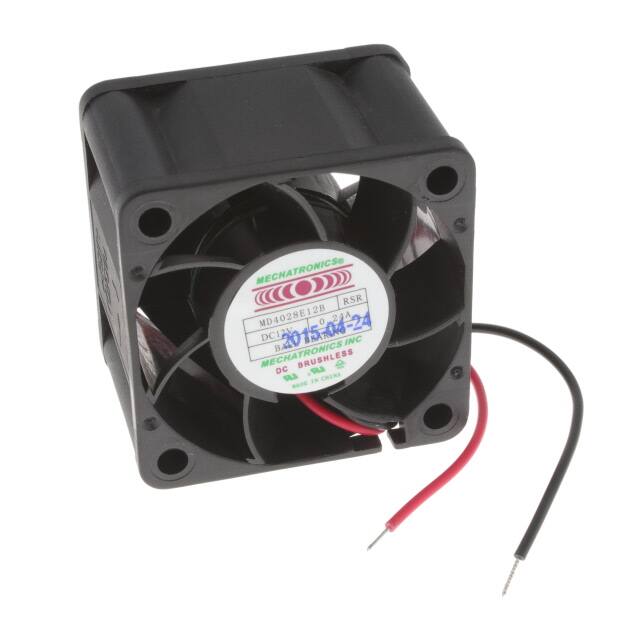

MD4028E12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.2 CFM (0.426m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 44.0dB(A) | - | cUL, TUV, UL | 10300 RPM | - | 2 Wire Leads | - |
|
MD4028X24B-RSR-L24FAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 47.3dB(A) | - | cUL, TUV, UL | 11500 RPM | - | 2 Wire Leads | - |
|
E9225H12B3-FSRFAN AXIAL 92X25MM 12VDC WIRE |
2 | - |
|
数据表 |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
G8015X12B1-RGRFAN AXIAL 80X15.3MM 12VDC WIRE |
0 | - |
|
数据表 |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.30mm | 40.0dB(A) | - | CE, cUL, TUV, UL | 4800 RPM | - | 3 Wire Leads | - |
|
E9225E24B-FSR-L22FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
G5015E12B1-RSRFAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G5015 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 16.0 CFM (0.448m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.00mm | 34.0dB(A) | - | CE, cUL, TUV, UL | 6500 RPM | - | 3 Wire Leads | - |
|
G9225X12B-FSR-TFFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
F8025H24B-FHR-EM-L17FAN AXIAL 80X25MM 24VDC WIRE |
1 | - |
|
数据表 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
MD4028E12B2-FSR-V10FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.2 CFM (0.426m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 28.00mm | 44.0dB(A) | - | cUL, TUV, UL | 10300 RPM | - | 3 Wire Leads | - |
|
|
MB6010H12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE |
0 | - |
|
数据表 |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.059 lb (26.76 g) | Tubeaxial | Thermal Overload Protector (TOP) | 10.20mm | 28.0dB(A) | - | cUL, UL | 3900 RPM | - | 2 Wire Leads | - |
|
9A0612H4D011FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 28.0dB(A) | 1.32 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9A0624M4D01FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 28.0dB(A) | 960 mW | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
