直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFB1724VHG-T500FAN AXIAL 172X50.8MM 24VDC WIRE |
0 | - |
|
数据表 |
EFB | Box | Active | 24VDC | Round - 172mm Dia | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection | 50.80mm | 57.0dB(A) | 23.28 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
9LG1224F1001FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 4.56 W | - | - | - | 3 Wire Leads | - |
|

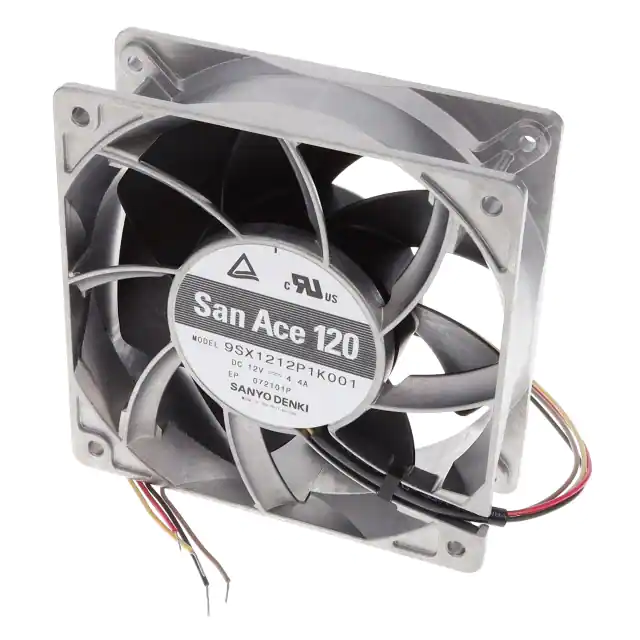

9SX1212P1K001FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 257.7 CFM (7.22m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 0.86 lb (390.09 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 52.8 W | CSA, TUV, UL | 7400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
9TJ24P0H61FAN IMP MTRZD 133X91MM 24VDC |
0 | - |
|
数据表 |
San Ace C133 | Box | Active | 24VDC | Round - 133mm Dia | 226.0 CFM (6.33m³/min) | 1.590 in H2O (396.1 Pa) | Ball | 1.5 lbs (680.4 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 91.00mm | 61.0dB(A) | 28.8 W | CSA, TUV, UL | 4150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

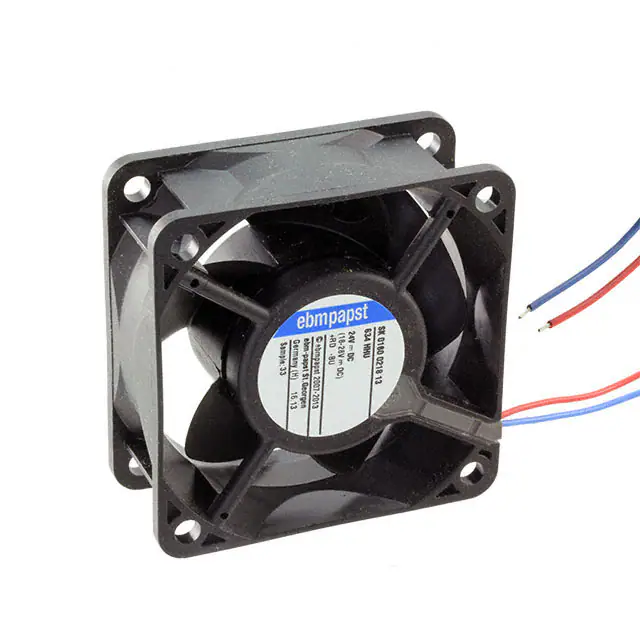

634HHUFAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
630U | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 34.1 CFM (0.955m³/min) | - | Ball | 0.154 lb (69.85 g) | Tubeaxial | - | 25.40mm | 44.0dB(A) | 3.2 W | UL | 8500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9LG1424P5S001FAN AXIAL 140X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 57.0dB(A) | 22 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9LG1448P5G001FAN AXIAL 140X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 69.0dB(A) | 62 W | cURus, TUV | 7500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9LG1212P1H001FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 176.6 CFM (4.94m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 0.926 lb (420.03 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 16.8 W | CSA, TUV, UL | 4700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9WL1412P5S001FAN AXIAL 140X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 140W | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | 1.653 lb (750.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 57.0dB(A) | 22 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
THD2348MU-00P8FAN AXIAL 225X100MM 48VDC WIRE |
0 | - |
|
数据表 |
THD | Box | Active | 48VDC | Round - 225mm Dia | 915.0 CFM (25.62m³/min) | 2.291 in H2O (570.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 100.00mm | 70.0dB(A) | 180 W | CE, cURus, TUV | 5000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | - |
|
F280A1-113-D0720FAN IMP MTRZD 280X128.7MM 48VDC |
0 | - |
|
数据表 |
F280 | Bulk | Active | 48VDC | Round - 280mm Dia | 1304.0 CFM (36.51m³/min) | 2.346 in H2O (584.4 Pa) | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 128.7mm | 81.0dB | 225.6 W | - | 2400 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
MSI3116H48B1+7-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
1 | - |
|
数据表 |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | 6.6 lbs (3 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 161.0mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 3 Wire Leads | - |
|
CFM-5015CF-160-374-20FAN AXIAL 50X15.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.6 CFM (0.437m³/min) | 0.200 in H2O (49.8 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.50mm | 37.4dB(A) | 1.8 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

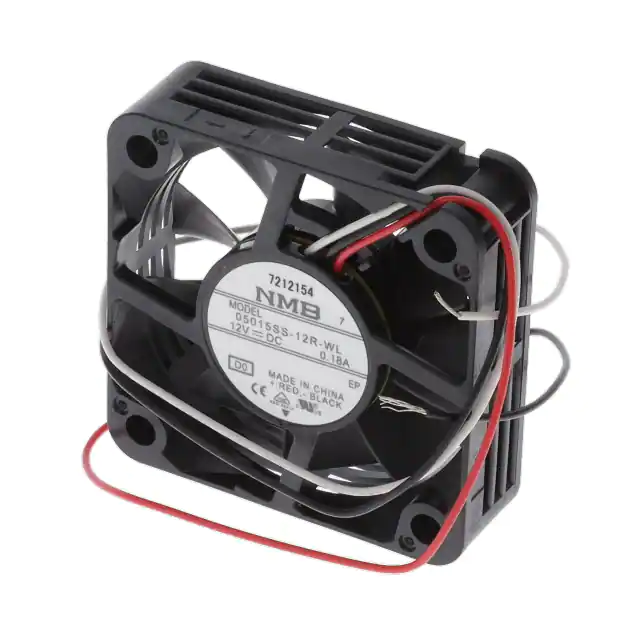

05015SS-12R-WL-D0FAN AXIAL 50X15.35MM 12VDC WIRE |
0 | - |
|
数据表 |
05015SS | Box | Active | 12VDC | Square - 50mm L x 50mm H | 14.8 CFM (0.414m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.35mm | 35.5dB | 1.68 W | - | 6550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

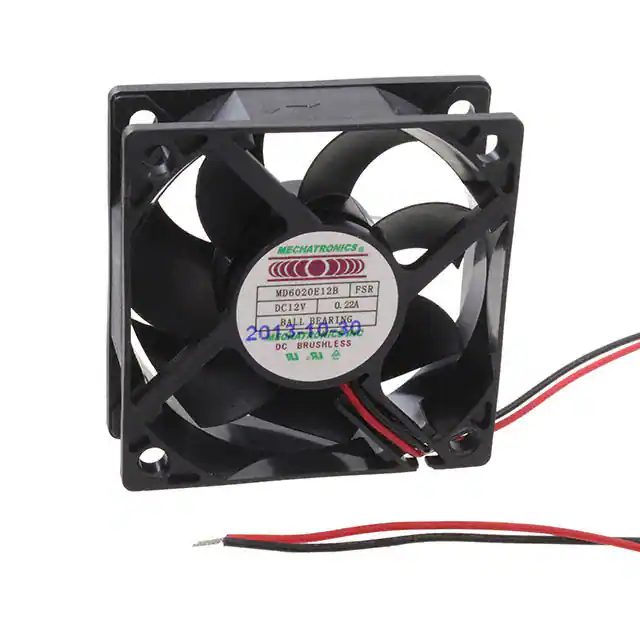

MD6020E12B-FSRFAN AXIAL 60X20.2MM 12VDC WIRE |
1 | - |
|
数据表 |
MD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.094 lb (42.64 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.20mm | 33.5dB(A) | - | cUL, TUV, UL | 4400 RPM | - | 2 Wire Leads | - |
|

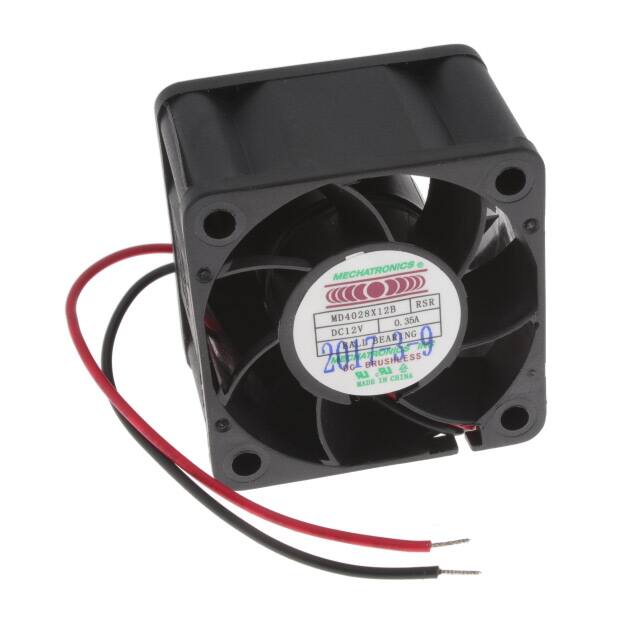

MD4028X12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
1 | - |
|
数据表 |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 47.3dB(A) | - | cUL, TUV, UL | 11500 RPM | - | 2 Wire Leads | - |
|
|
ASB0305MA-DR00FAN AXIAL 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
ASB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 10.00mm | 23.0dB(A) | 550 mW | cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8025V-229-300-20FAN AXIAL 80X25MM 24VDC WIRE |
18 | - |
|
数据表 |
CFM-80V | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.165 lb (74.84 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.4 W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
G4010L12D-RSRFAN AXIAL 40X10.3MM 12VDC WIRE |
4 | - |
|
数据表 |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | 0.026 lb (11.79 g) | Tubeaxial | Thermal Overload Protector (TOP) | 10.30mm | 22.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
FAD1-06025DHLW12-AFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 18.9dB(A) | 720 mW | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
