直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8020M12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.0 CFM (1.06m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
G8032X24B-RSR-EM3FAN AXIAL 80X32MM 24VDC WIRE |
2 | - |
|
数据表 |
G8032 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | - | - | CE, cUL, TUV, UL | - | - | 2 Wire Leads | - |
|
109P0624H601FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 31.0dB(A) | 1.68 W | CSA, TUV, UL | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
F6025E12B-FHR-EM3FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
E9225E12B-FSR-EMFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
MD4028X24B1-RSR-CCFAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.00mm | 47.3dB(A) | - | cUL, TUV, UL | 11500 RPM | - | 3 Wire Leads | - |
|
|
F6025S12B1+6-RHR-WSFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 22.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 4 Wire Leads | - |
|
G6015M24B1-AGR-EMFAN AXIAL 60X15.3MM 24VDC WIRE |
0 | - |
|
数据表 |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.059 lb (26.76 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.30mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
109R0605H4011FAN AXIAL 60X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 1.7 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
F8025E24B-FHR-CC-L16FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 25.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
|
AFB02512LA-CF00FAN AXIAL 25X10MM 12VDC WIRE |
4 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 25mm L x 25mm H | 0.812 CFM (0.023m³/min) | 0.045 in H2O (11.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 18.0dB(A) | 360 mW | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB02512MA-CF00FAN |
2 | - |
|
数据表 |
AF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | 0.085 in H2O (21.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 20.0dB(A) | 0.48 W | cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

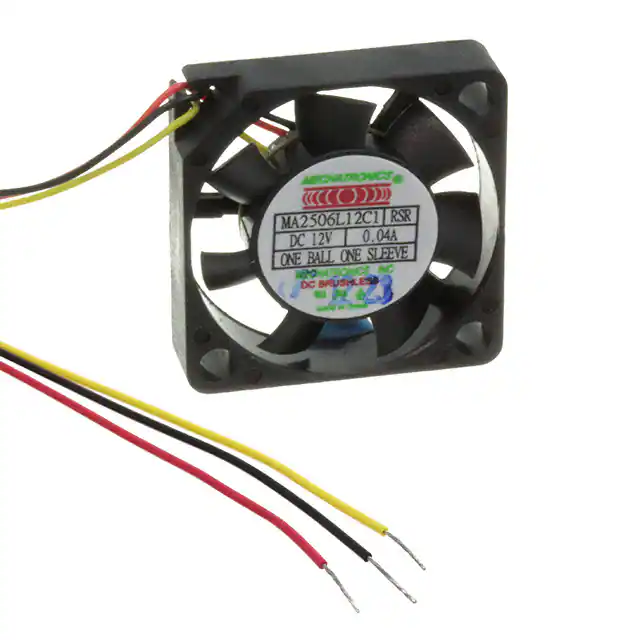

MA2506L12C1-RSRFAN AXIAL 25X6.1MM 12VDC WIRE |
0 | - |
|
数据表 |
MA2506 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | 0.050 in H2O (12.4 Pa) | 1 Ball/1 Sleeve | 0.018 lb (8.16 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 6.10mm | 11.0dB(A) | - | cUL, TUV, UL | 6500 RPM | - | 3 Wire Leads | - |
|
G6015X24B1-AGR-EMFAN AXIAL 60X15.3MM 24VDC WIRE |
0 | - |
|
数据表 |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.059 lb (26.76 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.30mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
MC8038E12B1-FSRFAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 81.5 CFM (2.28m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 52.1dB(A) | - | cUL, TUV, UL | 5800 RPM | - | 3 Wire Leads | - |
|
|
9A0812M401FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 23.0dB(A) | 1.08 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0912M401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 36.7 CFM (1.03m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.44 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
G9225X12B2-FSRFAN AXIAL 92X25MM 12VDC WIRE |
2 | - |
|
数据表 |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
|
109P0624M701FAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 25.0dB(A) | 960 mW | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MC8038H12B-FSR-CCFAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 38.00mm | 48.2dB(A) | - | cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
