直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1238E12BT-FSR-CCFAN AXIAL 119X38MM 12VDC TERM |
1 | - |
|
数据表 |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 126.0 CFM (3.53m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 38.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Terminals | - |
|
|
F1238H12B3-FSRFAN AXIAL 119X38MM 12VDC WIRE |
1 | - |
|
数据表 |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 115.0 CFM (3.22m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Thermistor | 38.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 2500 RPM | - | 2 Wire Leads | - |
|
9G0924S2011FAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 38.0dB(A) | 4.56 W | CSA, TUV, UL | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
614NGMLFAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.7 CFM (0.412m³/min) | - | Sintec | 0.145 lb (65.77 g) | Tubeaxial | - | 25.40mm | 19.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9GA0924W4021FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | 2.16 W | - | - | - | 2 Wire Leads | - |
|
9GA0924W4D011FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | 2.16 W | - | - | - | 3 Wire Leads | - |
|
|
9GA0812A2001FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | - | 3.72 W | - | - | - | 3 Wire Leads | - |
|
9GA0812B2001FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | - | 1.56 W | - | - | - | 3 Wire Leads | - |
|
9GA0812B20011FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | - | 1.56 W | - | - | - | 3 Wire Leads | - |
|
9RA0924M40011FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 23.0dB(A) | 960 mW | cURus, TUV | 2450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

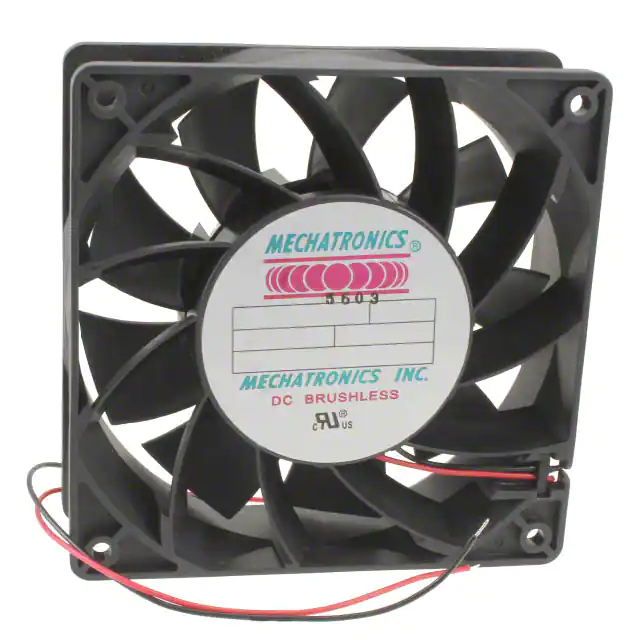

MQ1238E48B-FSRFAN AXIAL 120X38MM 48VDC WIRE |
2 | - |
|
数据表 |
MQ1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 65.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
F1238L48B1-FHR-CC-GBFAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 93.0 CFM (2.60m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.59 lb (267.62 g) | Tubeaxial | Auto Restart, Conformal Coating, Speed Sensor (Tach) | 38.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 3 Wire Leads | - |
|
612F/2-638FAN AXIAL 60X15MM 12VDC RECT |
0 | - |
|
数据表 |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.9 CFM (0.445m³/min) | - | Sintec | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 35.0dB(A) | 1 W | - | 3900 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Position Rectangular Connector | - |
|
|
MXB9733M12B6-BSRFAN BLOWER 97X33MM 12VDC WIRE |
3 | - |
|
数据表 |
MXB9733 | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 24.0 CFM (0.672m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.397 lb (180.08 g) | Blower | PWM Control, Thermal Overload Protector (TOP) | 33.00mm | 51.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
9G1212M4021FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 25.00mm | 29.0dB(A) | 1.68 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
MA3010H05C1-RSRFAN AXIAL 30X10MM 5VDC WIRE |
3 | - |
|
数据表 |
MA3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.150 in H2O (37.3 Pa) | 1 Ball/1 Sleeve | 0.018 lb (8.16 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 10.00mm | 28.0dB(A) | - | cUL, TUV, UL | 9000 RPM | - | 3 Wire Leads | - |
|
9G1212L401FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | - | - | Ball | 0.529 lb (240.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | - | CSA, TUV, UR | 1400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
612F/2HFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | - | Sintec | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 37.0dB(A) | 1.5 W | - | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
614N/2GHHFAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
600NG | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Sintec | 0.19 lb (86.18 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 3.8 W | - | - | 158°F (70°C) | 3 Wire Leads | - |
|
FFB0948VH-F00FAN AXIAL 92X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Active | 48VDC | Square - 92mm L x 92mm H | 82.0 CFM (2.30m³/min) | 0.319 in H2O (79.5 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 48.2dB(A) | 8.16 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
