直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WP0612G4D01FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 39.0dB(A) | 2.52 W | CSA, TUV, UL | 5600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9RA0648J40011FAN AXIAL 60X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 41.0dB(A) | 4.8 W | cURus, TUV | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0648G4001FAN AXIAL 60X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 36.0dB(A) | 2.88 W | cURus, TUV | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GL1212F101FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 36.0dB(A) | 3.36 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
255/2NFAN AXIAL 25X8MM 5VDC WIRE |
0 | - |
|
数据表 |
250 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | - | Sintec | - | Tubeaxial | Speed Sensor (Tach) | 8.00mm | 16.0dB(A) | 400 mW | CE, CSA, UL, VDE | 9600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
_Series.jpg)
|
3412NHFAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 55.3 CFM (1.55m³/min) | - | Ball | 0.22 lb (99.79 g) | Tubeaxial | - | 25.40mm | 36.0dB(A) | 2.5 W | CSA, UL, VDE | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9G1212F101FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 36.0dB(A) | 3.36 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
8412N/2HFAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 37.0dB(A) | 1.7 W | - | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1224E1021FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 8.16 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
612N/2GNFAN AXIAL 60X25.4MM 12VDC WIRE |
2 | - |
|
数据表 |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | - | Sintec | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 28.0dB(A) | 2.1 W | - | - | 158°F (70°C) | 3 Wire Leads | - |
|
3414N/2FAN AXIAL 92X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 49.5 CFM (1.39m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 36.0dB(A) | 2.1 W | - | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

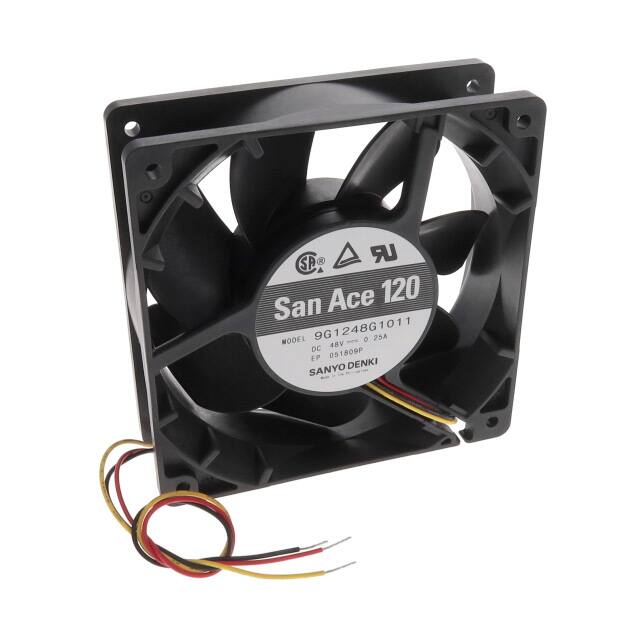

9G1248G1011FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
GF80321B1-000U-SE9FAN AXIAL 80X32MM 12VDC WIRE |
2 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 0.24 lb (108.86 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.00mm | 45.2dB(A) | 3.72 W | CE, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
8414N/2GLFAN AXIAL 80X25.4MM 24VDC WIRE |
2 | - |
|
数据表 |
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 19.4 CFM (0.543m³/min) | - | Sintec | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 26.0dB(A) | 700 mW | - | 1500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
8412NGLVFAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
8400NV | Box | Active | 12VDC | Square - 80mm L x 80mm H | 19.4 CFM (0.543m³/min) | - | Sintec | 0.209 lb (94.8 g) | Tubeaxial | Thermistor | 25.40mm | 12.0dB(A) | 1.1 W | CE, CSA, UL, VDE | 1500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
FFB1212SHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
3 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 56.5dB(A) | 18 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
4318NHFAN AXIAL 119X32MM 48VDC WIRE |
0 | - |
|
数据表 |
4300N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 129.3 CFM (3.62m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 32.00mm | 47.0dB(A) | 6.7 W | - | 3150 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
MA1751E48B2-FSR-TTLFAN AXIAL 172X50.8MM 48VDC WIRE |
4 | - |
|
数据表 |
MA1751 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 269.2 CFM (7.54m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 50.80mm | 61.0dB(A) | - | cUL, TUV, UL | 3150 RPM | - | 3 Wire Leads | - |
|
3318NNFAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
3300N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 47.0 CFM (1.32m³/min) | - | Ball | 0.419 lb (190.06 g) | Tubeaxial | - | 32.00mm | 35.0dB(A) | 1.8 W | CE, CSA, UL, VDE | 2650 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
9WP1212M1021FAN AXIAL 120X38MM 12VDC WIRE |
4 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 2.52 W | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
