直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUB0512HHB-F00FAN AXIAL 50X15MM 12VDC WIRE |
10 | - |
|
数据表 |
AUB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Superflo | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 1.56 W | CE, CSA, UL, VDE | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
F6025X12B1-RHR-WSFAN AXIAL 60X25MM 12VDC WIRE |
3 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 3 Wire Leads | - |
|

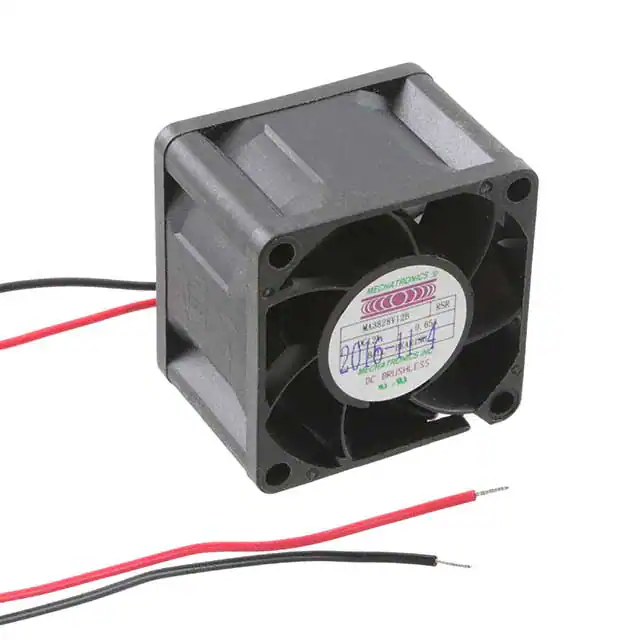

MA3828V12B-RSRFAN AXIAL 38X28MM 12VDC WIRE |
16 | - |
|
数据表 |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 19.5 CFM (0.546m³/min) | 1.145 in H2O (285.2 Pa) | Ball | 0.078 lb (35.38 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 53.1dB(A) | - | cUL, UL | 15000 RPM | - | 2 Wire Leads | - |
|
BFB0312HA-CR00FAN BLOWER 30X10MM 12VDC WIRE |
2 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Sensor | 10.00mm | 29.0dB(A) | 840 mW | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB03512HA-CR00FAN BLOWER 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Sensor | 10.00mm | 29.0dB(A) | 960 mW | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

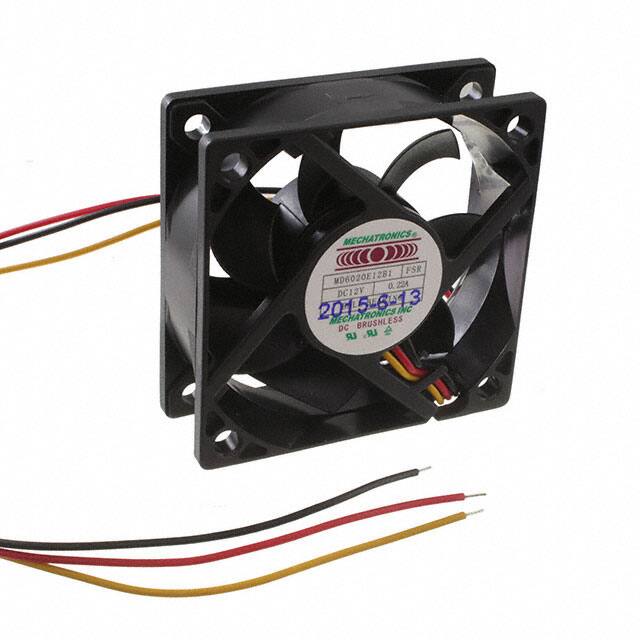

MD6020E12B1-FSRFAN AXIAL 60X20.2MM 12VDC WIRE |
6 | - |
|
数据表 |
MD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.094 lb (42.64 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 20.20mm | 33.5dB(A) | - | cUL, TUV, UL | 4400 RPM | - | 3 Wire Leads | - |
|
MS2507H12D-RSRFAN AXIAL 25X7.4MM SLEEVE 12VDC |
2 | - |
|
数据表 |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | 0.011 lb (4.99 g) | Tubeaxial | - | 7.40mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 14000 RPM | - | - | - |
|
|
EE60251B2-000U-999FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 25.00mm | 30.0dB(A) | 940 mW | CE, CUR, TUV, UL | 3800 RPM | - | 2 Wire Leads | - |
|
FAD1-04020BBMW11FAN AXIAL 40X20MM BALL 5VDC WIRE |
9 | - |
|
数据表 |
FAD1-04020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | - | 20.00mm | 33.0dB(A) | 800 mW | CE, cURus, TUV | 6900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06025SA-24L-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 23.5dB | 1 W | - | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
BFB0312MA-CR00FAN BLOWER 30X10MM 12VDC WIRE |
2 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Sensor | 10.00mm | 26.0dB(A) | 600 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB03512HA-CFAN BLOWER 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Protection | 10.00mm | 29.0dB(A) | 960 mW | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
F8025M12B-FHRFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 35.0 CFM (0.980m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|

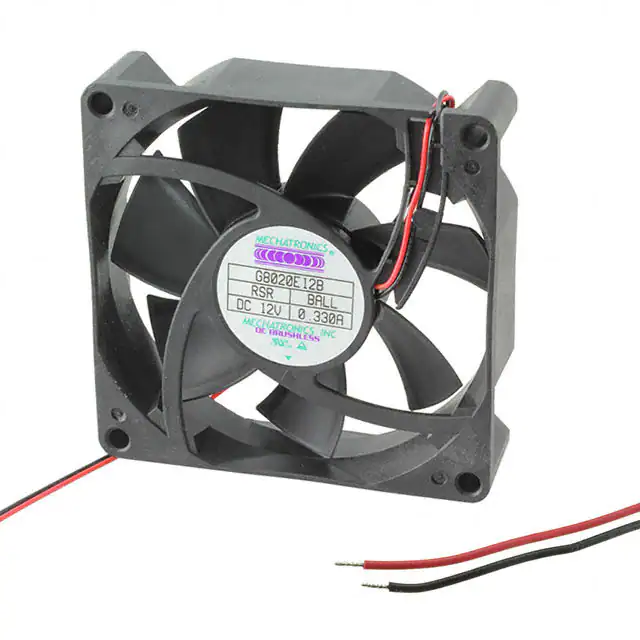

G8020E12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
3 | - |
|
数据表 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 49.0 CFM (1.37m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
G4020H12B1-RSR-L18FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 20.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 7000 RPM | - | 3 Wire Leads | - |
|
|
BFB03505MA-CR00FAN BLOWER 35X10MM 5VDC WIRE |
3 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 1.6 CFM (0.045m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Sensor | 10.00mm | 26.0dB(A) | 600 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MD6020M24B-FSRFAN AXIAL 60X20.2MM 24VDC WIRE |
0 | - |
|
数据表 |
MD6020 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.9 CFM (0.473m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.094 lb (42.64 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.20mm | 27.5dB(A) | - | cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
AFB02512HA-CFAN AXIAL 25X10MM 12VDC WIRE |
6 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.8 CFM (0.050m³/min) | - | Ball | 0.024 lb (10.89 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | - | 720 mW | CE, CSA, UL, VDE | 10000 RPM | - | 2 Wire Leads | - |
|
FAD1-06025DHHW12-AFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 33.1dB(A) | 2.88 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G4010H05B1-RSR-WSFAN AXIAL 40X10.3MM 5VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 10.30mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
