直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1212F401FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.28 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9CRA0312P4J03FAN AXIAL DUAL 38X48MM 12VDC |
0 | - |
|
数据表 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 24.7 CFM (0.692m³/min) | 2.250 in H2O (560.0 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.00mm | 62.0dB(A) | 13.2 W | cURus, TUV | 16000 Front, 13200 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
FFB1212EHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 24 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
BFB1012EH-AF00FAN BLOWER 97.2X33MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 46.0 CFM (1.29m³/min) | 2.814 in H2O (701.0 Pa) | Ball | 0.397 lb (180.08 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 33.00mm | 64.0dB(A) | 29.4 W | CE, CSA, UL, VDE | 5300 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
9GA0848P2S001FAN AXIAL 80X32MM 48VDC WIRE |
4 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 86.5 CFM (2.42m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 57.0dB(A) | 10.56 W | CSA, TUV, UL | 9700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
12038VA-24R-EL-00FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 243.6 CFM (6.82m³/min) | 1.480 in H2O (368.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 64.0dB | 35.5 W | - | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
GFC0412DS-DV17FAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
GFC | Box | Active | 12VDC | Square - 40mm L x 40mm H | 33.2 CFM (0.930m³/min) | 3.330 in H2O (829.5 Pa) | Ball | 0.183 lb (83.01 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 66.0dB(A) | 18 W | CE, cURus, TUV | 20500 Front, 17600 Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads per Fan | - |
|
|
09238RE-24P-GTD-0FAN AXIAL 92X38MM 24VDC WIRE |
3 | - |
|
数据表 |
09238RE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 141.3 CFM (3.96m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 61.0dB(A) | 22.08 W | CE, cULus, VDE | 6700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
4312NMFAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 88.2 CFM (2.47m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | - | 32.00mm | 36.0dB(A) | 2.2 W | CE, CSA, UL, VDE | 2100 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
9WG1212E101-EFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 7.32 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
4314/12FAN AXIAL 119X32MM 24VDC WIRE |
2 | - |
|
数据表 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 0.5 lb (226.8 g) | Tubeaxial | - | 32.00mm | 45.0dB(A) | 5 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
9GA0824P2S0011FAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 86.5 CFM (2.42m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.00mm | 57.0dB(A) | 10.1 W | CSA, TUV, UL | 9700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9GV1248P4J01FAN AXIAL 119X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 180.0 CFM (5.04m³/min) | 1.015 in H2O (252.8 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 59.0dB(A) | 24 W | CSA, TUV, UL | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
412JHHUFAN AXIAL 40X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
400JU | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 14.1 CFM (0.395m³/min) | - | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 25.40mm | 44.0dB(A) | 3.2 W | CE, CSA, UL, VDE | 13000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
17250VA-24R-GA-00FAN AXIAL 172.7X50.8MM 24VDC |
0 | - |
|
数据表 |
17250VA | Bulk | Active | 24VDC | Round - 172.7mm Dia | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | 2.1 lbs (952.5 g) | Tubeaxial | - | 50.80mm | 62.0dB | 43.2 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
9LG0812H4002FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 31.0dB(A) | 1.44 W | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9WPA0824P4G0011FAN AXIAL 80X25.2MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 81.8 CFM (2.29m³/min) | 0.840 in H2O (209.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 54.0dB(A) | 8.52 W | cURus, TUV | 8250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

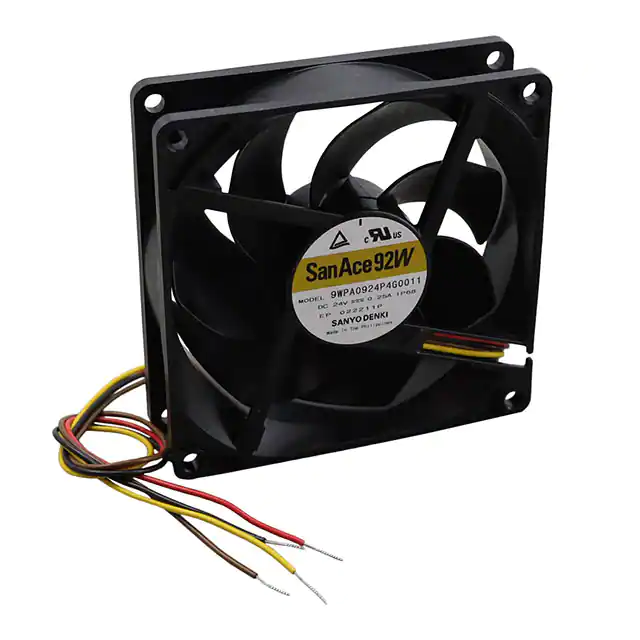

9WPA0924P4G0011FAN AXIAL 92X25.2MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 47.0dB(A) | 6 W | - | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

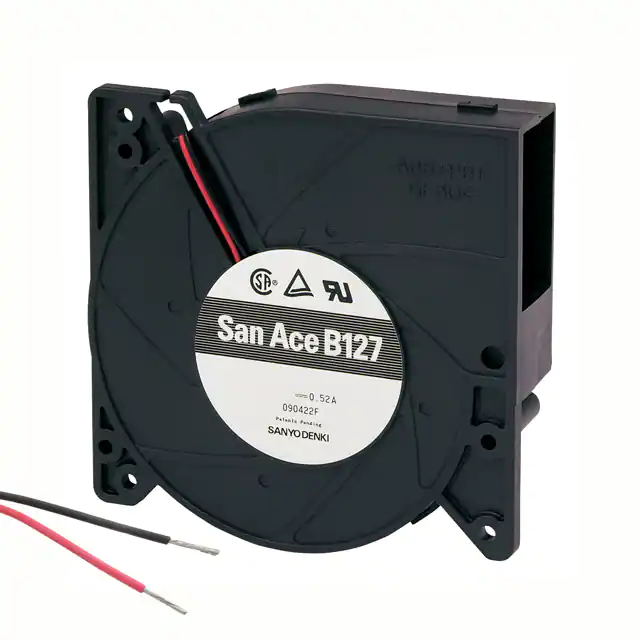

109BJ12HA2FAN BLOWER 126X32MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B127 | Box | Active | 12VDC | Square/Rounded - 126mm L x 127mm H | 27.5 CFM (0.770m³/min) | 0.826 in H2O (205.8 Pa) | Ball | 0.639 lb (289.85 g) | Blower | Locked Rotor Protection | 32.00mm | 46.0dB(A) | 6.24 W | CSA, TUV, UL | 2400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GV1424P1S001FAN AXIAL 140X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 272.0 CFM (7.62m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 37.2 W | CSA, TUV, UL | 6650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
