直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1225-12HBIP69KFAN AXIAL 120X25MM 12VDC WIRE |
104 | - |
|
数据表 |
OD1225-IP69K | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 42.0dB(A) | 5.4 W | CE, cURus, TUV, UR | 3100 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
9BMB24P2K01FAN BLOWER 97.1X33MM 24VDC WIRE |
2,190 | - |
|
数据表 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 56.8 CFM (1.59m³/min) | 5.140 in H2O (1280.0 Pa) | Ball | 0.419 lb (190.06 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.00mm | 66.0dB(A) | 38.88 W | cURus, TUV | 6850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

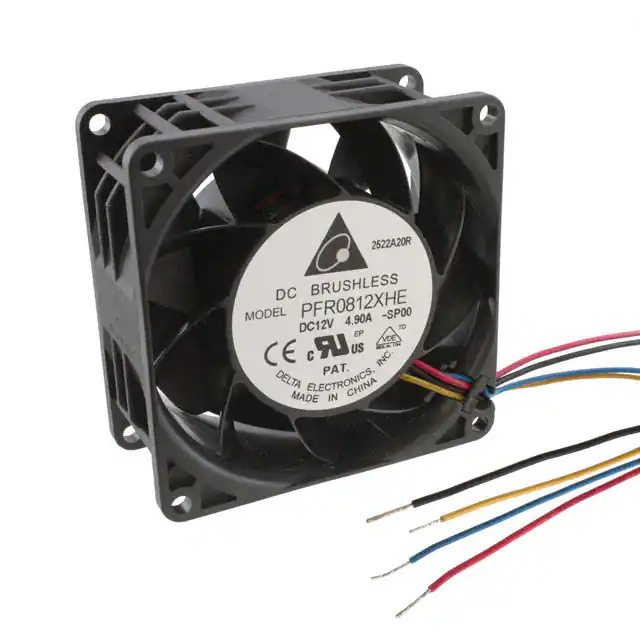

PFR0812XHE-SP00FAN AXIAL 80X38MM 12VDC WIRE |
1,942 | - |
|
数据表 |
PFR | Box | Active | 12VDC | Square - 80mm L x 80mm H | 134.3 CFM (3.76m³/min) | 3.000 in H2O (747.3 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 71.5dB(A) | 42 W | CE, cURus, VDE | 13300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
9G1212H4D01FAN AXIAL 119X25MM 12VDC WIRE |
631 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 40.0dB(A) | 3.72 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1212G401FAN AXIAL 119X25MM 12VDC WIRE |
284 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 51.0dB(A) | 10.8 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1224A401FAN AXIAL 119X25MM 24VDC WIRE |
107 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 44.0dB(A) | 5.04 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
PFC0812DE-SP07FAN AXIAL 80X38MM 12VDC WIRE |
360 | - |
|
数据表 |
PFC | Box | Active | 12VDC | Square - 80mm L x 80mm H | 86.5 CFM (2.42m³/min) | 0.895 in H2O (222.9 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.4dB(A) | 9.6 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
FFB1224EHEFAN AXIAL 120X38MM 24VDC WIRE |
287 | - |
|
数据表 |
FFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 59.0dB(A) | 24 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
9GV0824P1G031FAN AXIAL 80X38MM 24VDC WIRE |
3,662 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 0.485 lb (220.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 38.4 W | CSA, TUV, UL | 10200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
FFB1224EHE-F00FAN AXIAL 120X38MM 24VDC WIRE |
349 | - |
|
数据表 |
FFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 24 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
.F.GN.jpg)
|
PMD1212PMB1-A.(2).F.GNFAN AXIAL 120X38MM 12VDC WIRE |
105 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.650 in H2O (161.9 Pa) | Ball | 0.727 lb (329.76 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 19.2 W | CE, CUR, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
614N/2HH-169FAN AXIAL 60X25.4MM 24VDC WIRE |
175 | - |
|
数据表 |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 31.8 CFM (0.890m³/min) | 0.538 in H2O (134.0 Pa) | Ball | 0.146 lb (66.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 41.0dB(A) | 3 W | CE, CSA, EAC, UL, VDE | 6850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G0648P4S001FAN AXIAL 60X25MM 48VDC WIRE |
512 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.223 in H2O (304.6 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.64 W | cURus, TUV | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
414JFAN AXIAL 40X25.4MM 24VDC WIRE |
302 | - |
|
数据表 |
400J | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.2 CFM (0.314m³/min) | - | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 25.40mm | 39.0dB(A) | 2.4 W | CSA, UL, VDE | 10300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
E9225E48B1-FSRFAN AXIAL 92X25MM 48VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
9A0812F4011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 1.32 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812H4011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 1.56 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812F4D01FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 26.0dB(A) | 1.32 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812H4D01FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 29.0dB(A) | 1.56 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812H4D011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 29.0dB(A) | 1.56 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
