直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV0812P1F03FAN AXIAL 80X38MM 12VDC WIRE |
156 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 108.0 CFM (3.02m³/min) | 1.210 in H2O (301.4 Pa) | Ball | 0.485 lb (220.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 18 W | CSA, TUV, UL | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
4314FAN AXIAL 119X32MM 24VDC WIRE |
1,263 | - |
|
数据表 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 0.485 lb (219.99 g) | Tubeaxial | - | 32.00mm | 45.0dB(A) | 5 W | CE, CSA, UL, VDE | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

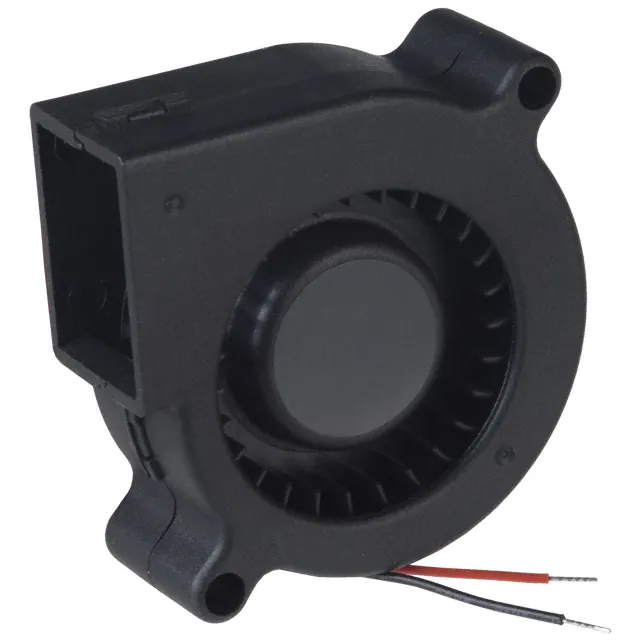

GB1205PKV3-8AY.GNFAN BLOWER 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 4.8 CFM (0.134m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | 0.073 lb (33.11 g) | Blower | Auto Restart, Locked Rotor Protection | 20.00mm | 30.0dB(A) | 1.1 W | CE, CUR, TUV, UL | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
GB1205PKV2-8AY.GNFAN BLOWER 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® GB | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 5.2 CFM (0.146m³/min) | 0.560 in H2O (139.5 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart, Locked Rotor Protection | 20.00mm | 33.0dB(A) | 1.3 W | CE, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KD2406PKB1.(2).GNFAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 34.5dB(A) | 2.1 W | - | 4500 RPM | - | 2 Wire Leads | - |
|
CFM-4028BG-1160-520-20FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 19.5 CFM (0.546m³/min) | 1.560 in H2O (388.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 52.0dB(A) | 6.48 W | CE, cURus, TUV | 16000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-9330B-140-507-20DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93B | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 21.4 CFM (0.599m³/min) | 1.290 in H2O (321.3 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 29.50mm | 47.8dB(A) | 6.36 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
G6015E12B1-RHFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G6015-H | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 5200 RPM | - | 3 Wire Leads | - |
|
|
G8032E24B-RSFAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 46.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 2 Wire Leads | - |
|
|
G8032M24B-RSFAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 2 Wire Leads | - |
|
|
G8032X24B-RSFAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | - | - | CE, cUL, TUV, UL | - | - | 2 Wire Leads | - |
|
|
04028DA-12R-ALF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.1 CFM (0.563m³/min) | 1.930 in H2O (480.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.00mm | 54.5dB | 5.16 W | - | 18000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
04028DA-12R-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.1 CFM (0.563m³/min) | 1.930 in H2O (480.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.00mm | 54.5dB | 5.16 W | - | 18000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
04028DA-12Q-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 16.6 CFM (0.465m³/min) | 1.370 in H2O (341.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 49.5dB | 3.5 W | - | 15000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04028DA-12Q-ALF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 16.6 CFM (0.465m³/min) | 1.370 in H2O (341.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.00mm | 49.5dB | 3.5 W | - | 15000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD1232-12HSS01AFAN AXIAL 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Sealed Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 51.0dB | - | cURus, TUV | 3750 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
|
|
OD1232-12HSS02AFAN AXIAL 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Sealed Sleeve | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | 51.0dB | - | cURus, TUV | 3750 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
|
|
OD1232-12LSS01AFAN AXIAL 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.270 in H2O (67.3 Pa) | Sealed Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 44.0dB | - | cURus, TUV | 2900 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
|
|
OD1232-12LSS02AFAN AXIAL 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.270 in H2O (67.3 Pa) | Sealed Sleeve | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | 44.0dB | - | cURus, TUV | 2900 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
|
|
OD1232-12MSS01AFAN AXIAL 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Sealed Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 48.0dB | - | cURus, TUV | 3300 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
