直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17000197AFAN AXL 25X10MM CR0212LB-G50(GL) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 1.6 CFM (0.045m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 18.3dB(A) | 540 mW | CE, cUL, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000198AFAN 30X10MM CR0305HB-G50(T) 5VDC |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 4.0 CFM (0.112m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 34.0dB(A) | 550 mW | CE, cUL, TUV, UL | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
.jpg)
|
9GV0624P1G03FAN AXIAL 60X38MM 24VDC WIRE |
743 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 33.6 W | CSA, TUV, UL | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
17000200AFAN AXIAL 12VDC CR3512MB-G50 |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.02 lb (9.07 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 32.0dB(A) | 660 mW | CE, cUL, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9GV0624P1M03FAN AXIAL 60X38MM 24VDC WIRE |
408 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 68.0 CFM (1.90m³/min) | 1.990 in H2O (495.7 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 17.52 W | CSA, TUV, UL | 13000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
.GN.JPG)
|
PMD2406PMB1-A.(2).GNFAN AXIAL 60X38MM 24VDC WIRE |
709 | - |
|
数据表 |
PMD | Box | Active | 24VDC | Square - 60mm L x 60mm H | 56.5 CFM (1.58m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Auto Restart | 38.00mm | 56.0dB(A) | 10.3 W | CE, CUR, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
.GN.JPG)
|
PMD2409PMB1-A.(2).GNFAN AXIAL 92X38MM 24VDC WIRE |
231 | - |
|
数据表 |
PMD | Box | Active | 24VDC | Square - 92mm L x 92mm H | 120.2 CFM (3.37m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 0.419 lb (190.06 g) | Tubeaxial | - | 38.00mm | 57.6dB(A) | 12.2 W | CE, CUR, TUV, UL | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
ODB600-12HBFAN BLOWER 120.5X32MM 12VDC WIRE |
390 | - |
|
数据表 |
ODB600PT | Box | Active | 12VDC | Square/Rounded - 120.5mm L x 120.5mm H | 35.0 CFM (0.980m³/min) | 0.590 in H2O (147.0 Pa) | Ball | - | Blower | - | 32.00mm | 49.0dB | - | cURus | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|

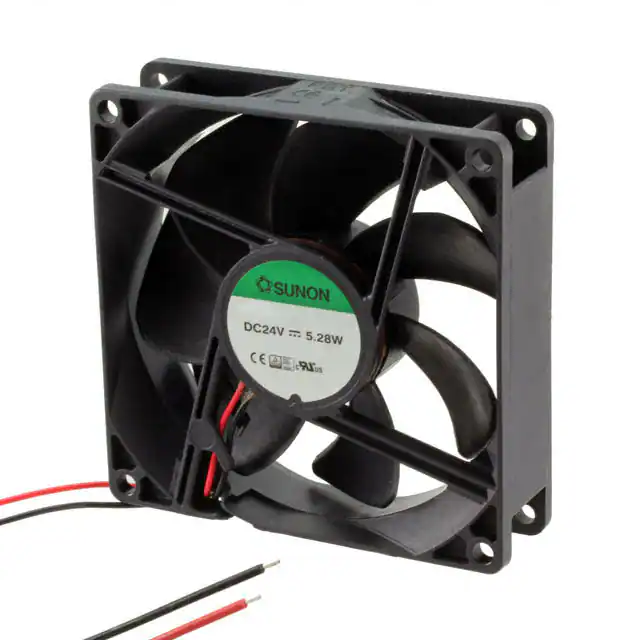

GE92252B1-000U-AC9FAN AXIAL 92X25MM 24VDC WIRE |
1,070 | - |
|
数据表 |
GE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.249 lb (112.94 g) | Tubeaxial | Auto Restart | 25.00mm | 47.0dB(A) | 5.28 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
|
PF97331B1-B00U-A99FAN BLOWER 97X33MM 12VDC WIRE |
800 | - |
|
数据表 |
PF | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 95mm H | 44.2 CFM (1.24m³/min) | 3.390 in H2O (844.4 Pa) | Ball | 0.406 lb (184.16 g) | Blower | Auto Restart | 33.00mm | 58.0dB(A) | 19.2 W | CE, cURus, TUV, UL | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
GE80252B1-000U-AC9FAN AXIAL 80X25MM 24VDC WIRE |
360 | - |
|
数据表 |
GE | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | - | 25.00mm | 47.5dB(A) | 4.8 W | CE, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP56 - Dust Protected, Water Resistant |
|

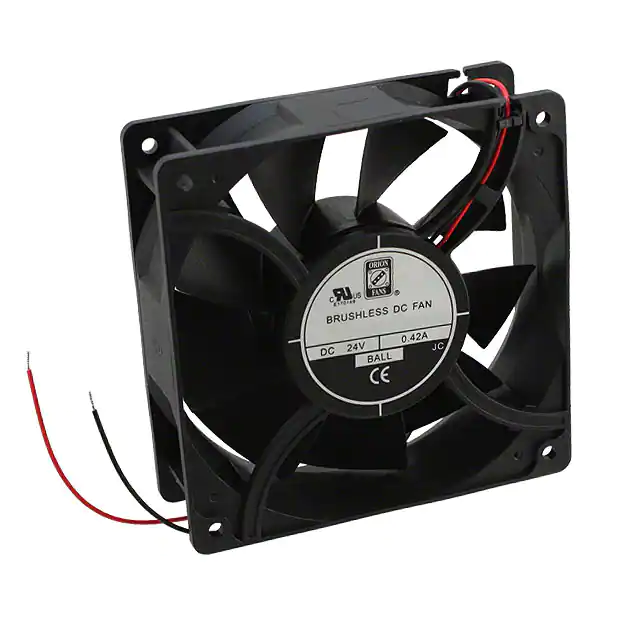

OD1238-24LBXCFAN AXIAL 120X38.5MM 24VDC WIRE |
379 | - |
|
数据表 |
OD1238 XC | Box | Active | 24VDC | Square - 120mm L x 120mm H | 150.0 CFM (4.20m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 52.0dB | 9 W | cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD8032-12HBIP69KFAN AXIAL 80X32MM 12VDC WIRE |
114 | - |
|
数据表 |
OD8032-IP69K | Box | Active | 12VDC | Square - 80mm L x 80mm H | 77.0 CFM (2.16m³/min) | 0.730 in H2O (181.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 32.00mm | 50.0dB(A) | 7.8 W | CE, cURus, TUV, UR | 6000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
OD8032-24HBIP69KFAN AXIAL 80X32MM 24VDC WIRE |
104 | - |
|
数据表 |
OD8032-IP69K | Box | Active | 24VDC | Square - 80mm L x 80mm H | 77.0 CFM (2.16m³/min) | 0.730 in H2O (181.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 32.00mm | 50.0dB(A) | 7.8 W | CE, cURus, TUV, UR | 6000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
424JHFAN AXIAL 40X28MM 24VDC WIRE |
495 | - |
|
数据表 |
420J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 22.4 CFM (0.627m³/min) | - | Ball | 0.99 lb (449.06 g) | Tubeaxial | - | 28.00mm | 54.0dB(A) | 7.08 W | CSA, UL, VDE | 17200 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
255MFAN AXIAL 25X8MM 5VDC WIRE |
1,273 | - |
|
数据表 |
250 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | - | Sintec | 0.011 lb (4.99 g) | Tubeaxial | - | 8.00mm | 5.0dB(A) | 200 mW | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
614NHHFAN AXIAL 60X25.4MM 24VDC WIRE |
994 | - |
|
数据表 |
600N | Box | Active | 24VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 0.145 lb (65.77 g) | Tubeaxial | - | 25.40mm | 41.0dB(A) | 3 W | CE, CSA, UL, VDE | 6850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9G1212H102FAN AXIAL 119X38MM 12VDC WIRE |
670 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 39.0dB(A) | 4.56 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
ODB600-24HBFAN BLOWER 120.5X32MM 24VDC WIRE |
2,156 | - |
|
数据表 |
ODB600PT | Box | Active | 24VDC | Square/Rounded - 120.5mm L x 120.5mm H | 35.0 CFM (0.980m³/min) | 0.590 in H2O (147.0 Pa) | Ball | - | Blower | - | 32.00mm | 49.0dB | - | cURus | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
8414NHFAN AXIAL 80X25.4MM 24VDC WIRE |
398 | - |
|
数据表 |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | - | Ball | 0.21 lb (95.25 g) | Tubeaxial | - | 25.40mm | 37.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
