直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
612NHH-118FAN AXIAL 60X25.4MM 12VDC WIRE |
1,647 | - |
|
数据表 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 0.146 lb (66.22 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 43.0dB(A) | 2.9 W | CE, CSA, UL, VDE | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
4414FMFAN AXIAL 119X25.4MM 24VDC WIRE |
882 | - |
|
数据表 |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 82.4 CFM (2.31m³/min) | - | Ball | 0.386 lb (175.09 g) | Tubeaxial | - | 25.40mm | 38.0dB(A) | 3.2 W | CE, CSA, UL, VDE | 2400 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
8318FAN AXIAL 80X32MM 48VDC WIRE |
819 | - |
|
数据表 |
8300 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | - | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 36.0dB(A) | 2.6 W | CE, CSA, UL, VDE | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
9GA0812P1H611FAN AXIAL 80X38MM 12VDC WIRE |
560 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 79.4 CFM (2.22m³/min) | 1.530 in H2O (381.1 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 7.2 W | CSA, TUV, UL | 8250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0812P1H61FAN AXIAL 80X38MM 12VDC WIRE |
241 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 79.5 CFM (2.23m³/min) | 1.528 in H2O (380.6 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 7.2 W | CSA, TUV, UL | 8250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

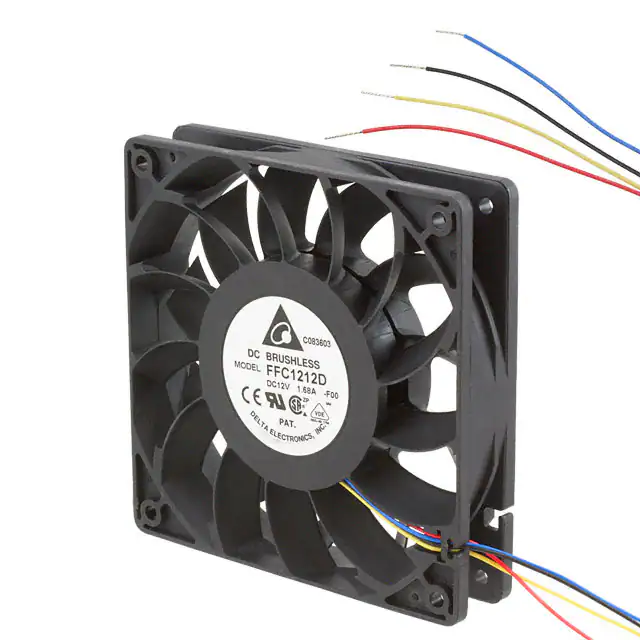

FFC1212D-F00FAN AXIAL 120X25MM 12VDC WIRE |
2,262 | - |
|
数据表 |
FFC | Box | Active | 12VDC | Square - 120mm L x 120mm H | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 56.4dB(A) | 17.4 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
9CRE0412P5J03FAN AXIAL DUAL 40X56MM 12VDC |
231 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 31.8 CFM (0.890m³/min) | 2.290 in H2O (570.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 62.0dB(A) | 16.8 W | cURus, TUV | 15800 Front, 12200 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
GF80251B1-000U-AE9FAN AXIAL 80X25MM 12VDC WIRE |
327 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart | 25.00mm | 47.5dB(A) | 3.96 W | CE, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
8314HFAN AXIAL 80X32MM 24VDC WIRE |
451 | - |
|
数据表 |
8300 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 48.0dB(A) | 6 W | CE, CSA, UL, VDE | 5000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
PFB0824DHEFAN AXIAL 80X38MM 24VDC WIRE |
2,151 | - |
|
数据表 |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 65.0dB(A) | 32.4 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9GV0848P1G03FAN AXIAL 80X38MM 48VDC WIRE |
1,785 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 0.485 lb (220.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 40.32 W | CSA, TUV, UL | 10200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
QFR1212GHEEVTFAN AXL 120X38MM 12VDC RECT CONN |
372 | - |
|
数据表 |
QFR | Box | Not For New Designs | 12VDC | Square - 120mm L x 120mm H | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 21.6 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Position Rectangular Connector | - |
|

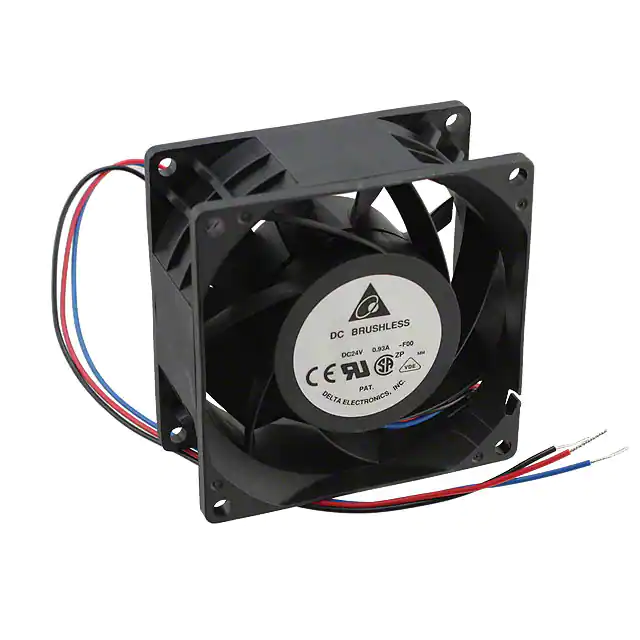

PFB0824UHE-F00FAN AXIAL 80X38MM 24VDC WIRE |
1,049 | - |
|
数据表 |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 61.0dB(A) | 18.48 W | CE, CSA, UL, VDE | 7500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
8314FAN AXIAL 80X32MM 24VDC WIRE |
237 | - |
|
数据表 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | - | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 36.0dB(A) | 2.5 W | CE, CSA, UL, VDE | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
9CRA0812P8G001FAN AXIAL DUAL 80X80MM 12VDC |
799 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | 0.993 lb (450.42 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 80.00mm | 76.0dB(A) | 63.6 W | cURus, TUV | 12000 Front, 11300 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
OD1238-12MBXJ10AFAN AXIAL 120X38MM 12VDC WIRE |
600 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 207.0 CFM (5.80m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.827 lb (375.12 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 63.0dB | 27.6 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
4414FFAN AXIAL 119X25.4MM 24VDC WIRE |
324 | - |
|
数据表 |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 0.38 lb (172.37 g) | Tubeaxial | - | 25.40mm | 43.0dB(A) | 5 W | CE, CSA, UL, VDE | 2900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
GFC0412DS-SM06B0GFAN AXIAL DUAL 40X56MM 12VDC |
1,616 | - |
|
数据表 |
GFC | Box | Not For New Designs | 12VDC | Square - 40mm L x 40mm H | 37.6 CFM (1.05m³/min) | 4.110 in H2O (1023.8 Pa) | Ball | 0.183 lb (83.01 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 69.0dB(A) | 27.24 W | cURus, TUV | 23000 Front, 20500 Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads per Fan | - |
|

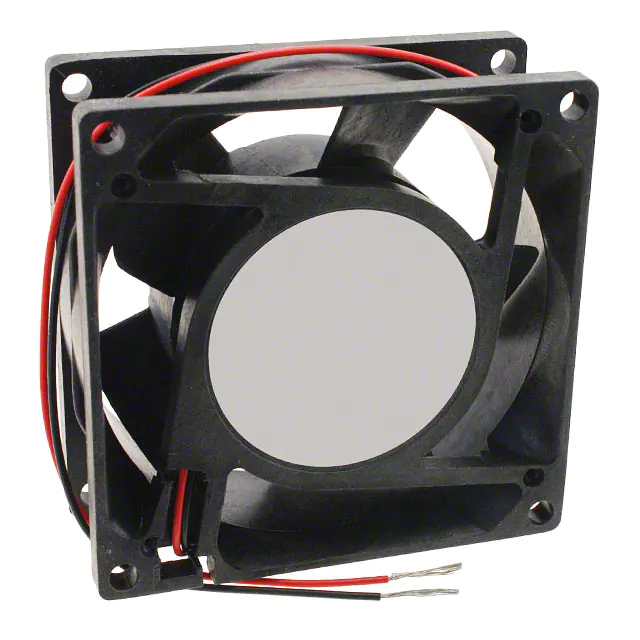

19030614AFAN AXIAL 80X32MM 24VDC ST24K3 |
25 | - |
|
数据表 |
Sprint | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.325 in H2O (80.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 44.2dB(A) | 4.5 W | UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
PFB0824DHEYDGFAN AXIAL 80X38MM 24VDC WIRE |
1,465 | - |
|
数据表 |
PFB | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 32.4 W | CE, CSA, UL, VDE | 9000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
