直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0812L4D011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 20.0dB(A) | 720 mW | CSA, TUV, UL | 1850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812M4D01FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 23.0dB(A) | 1.08 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812M4D011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 23.0dB(A) | 1.08 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812L401FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | 720 mW | CSA, TUV, UL | 1850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812L4011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | 720 mW | CSA, TUV, UL | 1850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812M4011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 23.0dB(A) | 1.08 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
KD1212PMBX-6 A. FFAN AXIAL 119.5X38.5MM 12VDC |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 120.0 CFM (3.36m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.712 lb (322.96 g) | Tubeaxial | Speed Sensor (Tach) | 38.50mm | 46.5dB(A) | 7.68 W | CUR, TUV, UL | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0922524L2B-3T3FAN 92X25MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 2.64 W | CE, cURus | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922524M2B-3T3FAN 92X25MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 3.36 W | CE, cURus | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922524H2B-3T3FAN 92X25MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 38.0dB(A) | 4.8 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
BFB0512HFAN BLOWER 51.3X15MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 51.3mm L x 51mm H | 3.9 CFM (0.109m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Protection | 15.00mm | 38.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
BFB0524MFAN BLOWER 51.3X15MM 24VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 3.2 CFM (0.090m³/min) | 0.433 in H2O (107.9 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Protection | 15.00mm | 32.5dB(A) | 1.68 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0301012H2B-BT4FAN 30X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 29.0dB(A) | 840 mW | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0301012M2B-BT4FAN 30X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 24.0dB(A) | 600 mW | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0301012L2B-BT4FAN 30X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 17.0dB(A) | 360 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
CBM-7530CF-250-493DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 | - |
|
数据表 |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 14.7 CFM (0.412m³/min) | 0.850 in H2O (211.7 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart | 24.50mm | 49.3dB(A) | 10.8 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-9232S-250-509-20FAN AXIAL 92.2X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92S | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 102.8 CFM (2.91m³/min) | 0.620 in H2O (154.4 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.00mm | 51.0dB(A) | 13.2 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9238S-148-523-20FAN AXIAL 92X37.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92S | Box | Active | 12VDC | Square - 92mm L x 92mm H | 92.0 CFM (2.58m³/min) | 0.630 in H2O (156.9 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.50mm | 52.3dB(A) | 11.4 W | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

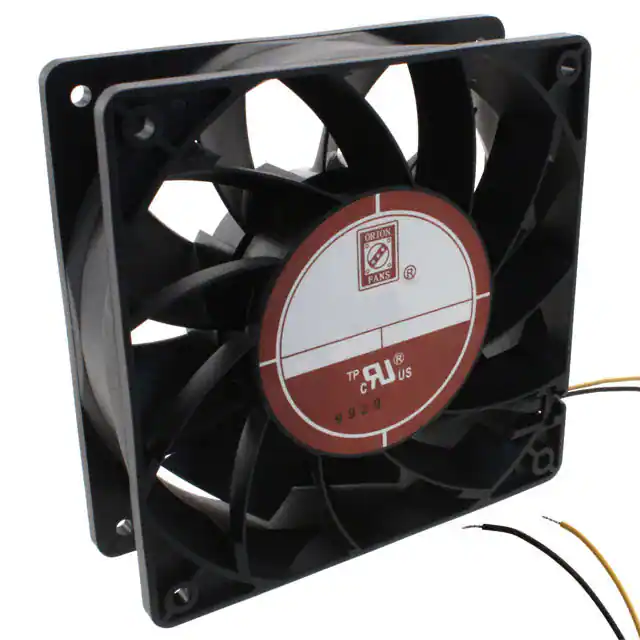

OD1238-48HBVXCFAN AXIAL 120X38MM 48VDC WIRE |
610 | - |
|
数据表 |
OD1238 VA | Box | Active | 48VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 65.0dB | 48 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB1224SHE-CR00FAN AXIAL 120X38MM 24VDC WIRE |
1,148 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 55.5dB(A) | 14.88 W | CE, CSA, UL, VDE | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
