直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8414NFAN AXIAL 80X25.4MM 24VDC WIRE |
385 | - |
|
数据表 |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 40.6 CFM (1.14m³/min) | - | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.40mm | 32.0dB(A) | 2 W | CE, CSA, UL, VDE | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
17000201AFAN AXIAL 5VDC CR3505DB-G50(T) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 3.0 CFM (0.084m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.02 lb (9.07 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 17.0dB(A) | 210 mW | CE, cUL, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9GA0712P1H001FAN AXIAL 70X38MM 12VDC WIRE |
581 | - |
|
数据表 |
San Ace 70 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 67.8 CFM (1.90m³/min) | 1.830 in H2O (455.8 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 57.0dB(A) | 13.2 W | CSA, TUV, UL | 12000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
17000202AFAN AXIAL 12VDC CR0212MB-G50(GL) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 2.1 CFM (0.059m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 23.0dB(A) | 720 mW | CE, cUL, TUV, UL | 1000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD1225-24HBIP68FAN AXIAL 120X25MM 24VDC WIRE |
260 | - |
|
数据表 |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 42.0dB(A) | 7.7 W | CE, cURus, TUV, UR | 3100 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OD1225-48HBIP68FAN AXIAL 120X25MM 48VDC WIRE |
165 | - |
|
数据表 |
OD1225 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 42.0dB(A) | 4.5 W | CE, cURus, TUV, UR | 3100 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

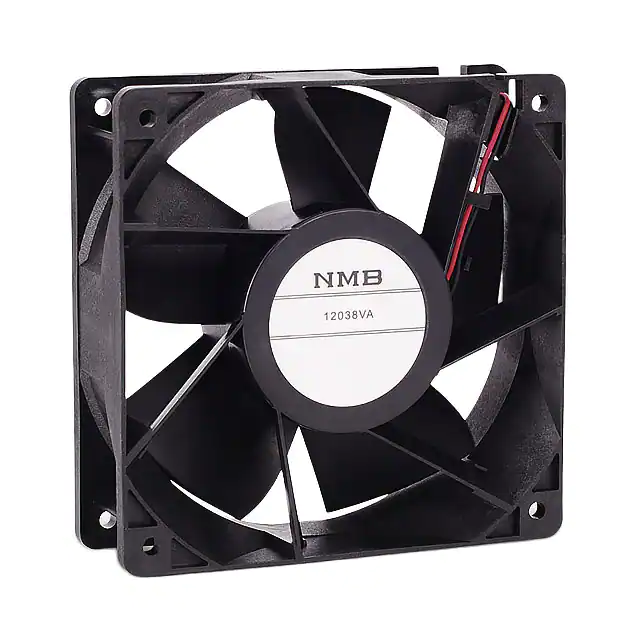

12038VA-24R-GA-00FAN AXIAL 120X38MM 24VDC WIRE |
4,955 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 243.7 CFM (6.82m³/min) | 1.480 in H2O (368.7 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | - | 38.00mm | 64.0dB | 35.5 W | - | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
9BMB24F201FAN BLOWER 97.1X33MM 24VDC WIRE |
1,021 | - |
|
数据表 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 36.7 CFM (1.03m³/min) | 1.647 in H2O (410.0 Pa) | Ball | 0.419 lb (190.06 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 33.00mm | 56.0dB(A) | 10.8 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
.GN.JPG)
|
PMD1212PTB1-A.(2).GNFAN AXIAL 120X25MM 12VDC WIRE |
3,958 | - |
|
数据表 |
PMD | Box | Active | 12VDC | Square - 120mm L x 120mm H | 150.0 CFM (4.20m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 0.485 lb (219.99 g) | Tubeaxial | - | 25.00mm | 54.0dB(A) | 12 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD1238-12HBXJ10AFAN AXIAL 120X38MM 12VDC WIRE |
3,670 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 250.0 CFM (7.00m³/min) | 1.480 in H2O (368.7 Pa) | Ball | 0.827 lb (375.12 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 69.0dB | 44.4 W | cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

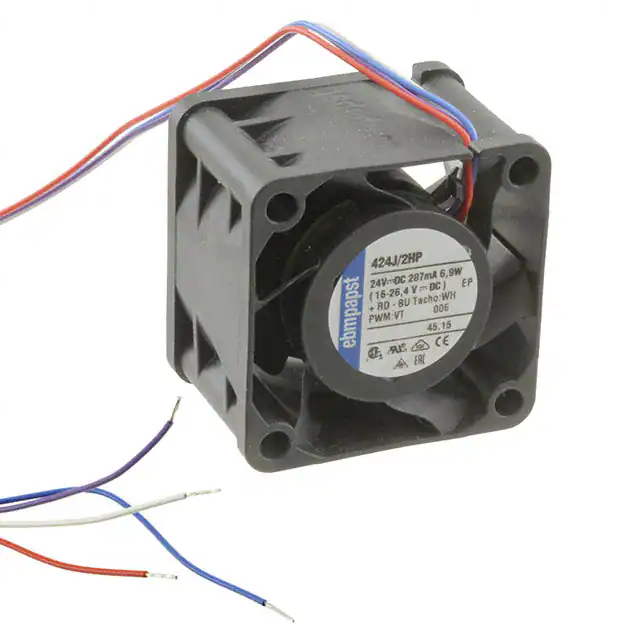

424J/2HPFAN AXIAL 40X28MM 24VDC WIRE |
323 | - |
|
数据表 |
420J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 22.4 CFM (0.627m³/min) | 2.129 in H2O (530.3 Pa) | Ball | 0.099 lb (44.91 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 54.0dB(A) | 7.2 W | CSA, UL, VDE | 17200 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
GF60151B6-1E00U-AE9Thermal Products |
796 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 21.3 CFM (0.596m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 34.5dB(A) | 1.56 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
PFR0612XHE-SP00FAN AXIAL 60X38MM 12VDC WIRE |
3,650 | - |
|
数据表 |
PFR | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.2 CFM (2.13m³/min) | 3.185 in H2O (793.4 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 67.7dB(A) | 27.6 W | CE, cURus, TUV | 16500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
9G1224M401FAN AXIAL 119X25MM 24VDC WIRE |
967 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 1.92 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MS1238H12B1+6-FHR-2EMFAN AXIAL 120X38MM 12VDC WIRE |
170 | - |
|
数据表 |
MS1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 203.3 CFM (5.69m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | - | - | 4000 RPM | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
MS1238E24B1+6-FHR-2EMFAN AXIAL 120X38MM 24VDC WIRE |
145 | - |
|
数据表 |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 68.0dB(A) | - | - | 5000 RPM | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
.GN.JPG)
|
PMD2412PTB1-A.(2).GNFAN AXIAL 120X25MM 24VDC WIRE |
2,040 | - |
|
数据表 |
PMD | Box | Active | 24VDC | Square - 120mm L x 120mm H | 150.0 CFM (4.20m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 0.485 lb (219.99 g) | Tubeaxial | - | 25.00mm | 54.0dB(A) | 11.8 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

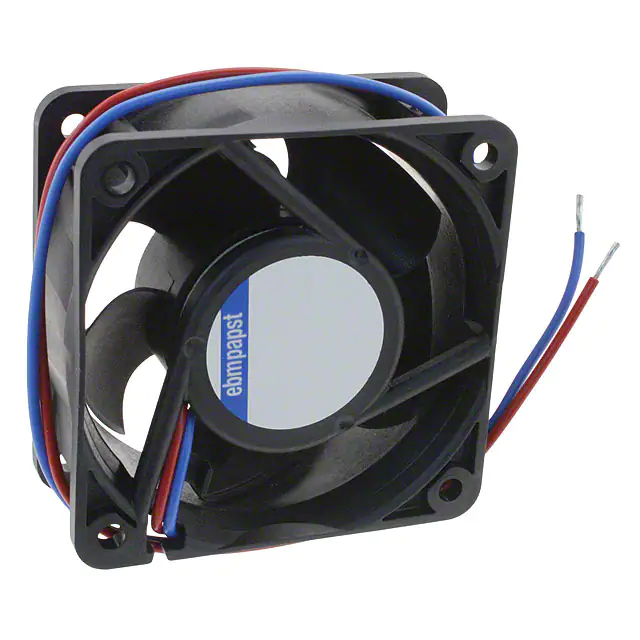

624NFAN AXIAL 60X25.4MM 24VDC WIRE |
1,025 | - |
|
数据表 |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | - | Ball | 0.187 lb (84.82 g) | Tubeaxial | - | 25.40mm | 35.0dB(A) | 2.2 W | CE, CSA, UL, VDE | 6100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
622MFAN AXIAL 60X25.4MM 12VDC WIRE |
349 | - |
|
数据表 |
620 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 17.7 CFM (0.496m³/min) | - | Ball | 0.187 lb (84.82 g) | Tubeaxial | - | 25.40mm | 29.0dB(A) | 1 W | CE, CSA, UL, VDE | 4550 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

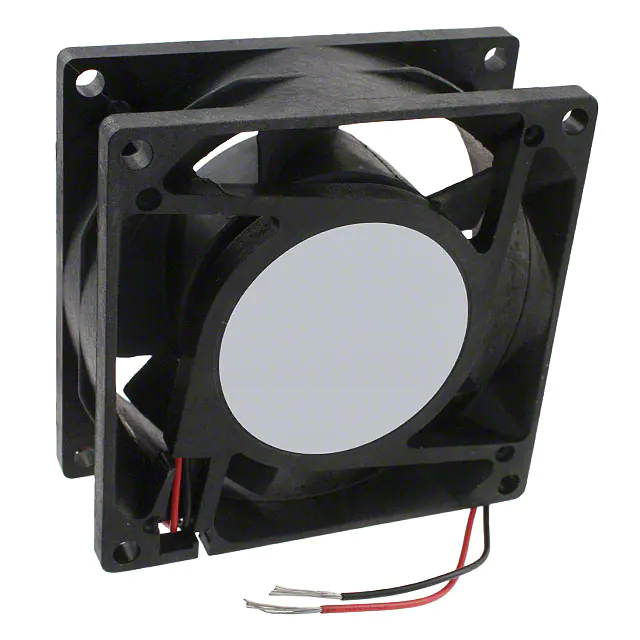

19032556AFAN AXIAL 80X32MM 24VDC ST24Z3 |
538 | - |
|
数据表 |
Sprint | Box | Active | 24VDC | Square - 80mm L x 80mm H | 45.0 CFM (1.26m³/min) | 0.372 in H2O (92.7 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 51.5dB(A) | 6.7 W | CE, UL | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
