直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

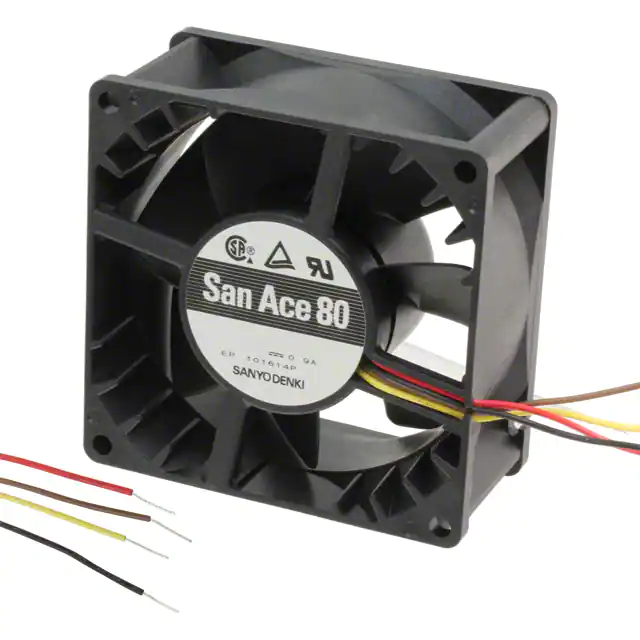

9GA0824P1S611FAN AXIAL 80X38MM 24VDC WIRE |
192 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 91.8 CFM (2.57m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 11.28 W | CSA, TUV, UL | 9550 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
614NHFAN AXIAL 60X25.4MM 24VDC WIRE |
673 | - |
|
数据表 |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 27.1 CFM (0.759m³/min) | - | Ball | 0.145 lb (65.77 g) | Tubeaxial | - | 25.40mm | 37.0dB(A) | 2.1 W | CE, CSA, UL, VDE | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
_Series.jpg)
|
3414NHHFAN AXIAL 92X25.4MM 24VDC WIRE |
549 | - |
|
数据表 |
3400N | Box | Active | 24VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | - | Ball | 0.22 lb (99.79 g) | Tubeaxial | - | 25.40mm | 39.0dB(A) | 3.1 W | CSA, UL, VDE | 3250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
612NNFAN AXIAL 60X25.4MM 12VDC WIRE |
276 | - |
|
数据表 |
600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | - | Ball | 0.145 lb (65.77 g) | Tubeaxial | - | 25.40mm | 35.0dB(A) | 1.6 W | CE, CSA, UL, VDE | 5100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
712F/2M-006FAN AXIAL 70X15MM 12VDC RECT |
178 | - |
|
数据表 |
700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 21.2 CFM (0.594m³/min) | - | Sintec | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.1 W | - | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Position Rectangular Connector | - |
|

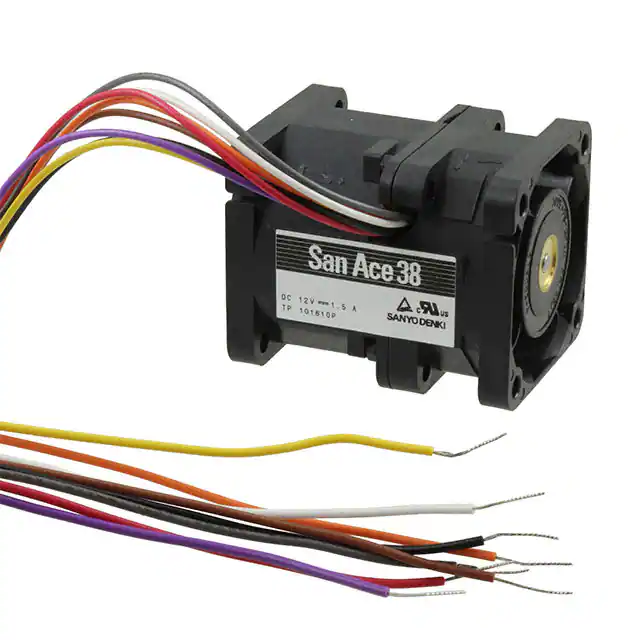

9CRA0312P4K03FAN AXIAL DUAL 38X48MM 12VDC |
1,394 | - |
|
数据表 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 27.2 CFM (0.762m³/min) | 2.810 in H2O (700.0 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.00mm | 64.0dB(A) | 18 W | cURus, TUV | 17600 Front, 14520 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
17000207AFAN AXIAL 12VDC CR0312HB-G50 |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 4.0 CFM (0.112m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 34.0dB(A) | 840 mW | CE, cUL, TUV, UL | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MA3828S12B-RSRFAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 6.2 CFM (0.174m³/min) | 0.136 in H2O (33.9 Pa) | Ball | 0.078 lb (35.38 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 30.8dB(A) | - | cUL, UL | 5000 RPM | - | 2 Wire Leads | - |
|
|
DC0922524J2B-2T2FAN 92X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 25.0dB(A) | 2.16 W | CE, cURus | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0922524M2B-2T2FAN 92X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 3.36 W | CE, cURus | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0351005W2B-2T2FAN 35X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 28.0dB(A) | 540 mW | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
06023GA-12M-AL-00FAN BLOWER 60.6X23MM 12VDC WIRE |
0 | - |
|
数据表 |
06023GA | Bulk | Active | 12VDC | Square/Rounded - 60.6mm L x 59.9mm H | 7.7 CFM (0.216m³/min) | 0.800 in H2O (199.3 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 23.00mm | 37.0dB | 2.76 W | - | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
06023GA-12N-AT-00FAN BLOWER 60.6X23MM 12VDC WIRE |
0 | - |
|
数据表 |
06023GA | Bulk | Active | 12VDC | Square/Rounded - 60.6mm L x 59.9mm H | 8.4 CFM (0.235m³/min) | 0.920 in H2O (229.2 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 23.00mm | 41.0dB | 3.12 W | - | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
06023GA-24N-AT-00FAN BLOWER 60.6X23MM 24VDC WIRE |
0 | - |
|
数据表 |
06023GA | Bulk | Active | 24VDC | Square/Rounded - 60.6mm L x 59.9mm H | - | - | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 23.00mm | - | - | - | - | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
9A0912M402FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 36.7 CFM (1.03m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 1.44 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9A0912F402FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 43.8 CFM (1.23m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 30.0dB(A) | 1.68 W | CSA, TUV, UL | 2650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9A0912F4021FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 43.8 CFM (1.23m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 30.0dB(A) | 1.68 W | CSA, TUV, UL | 2650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9A0912L402FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 28.2 CFM (0.790m³/min) | 0.054 in H2O (13.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 23.0dB(A) | 840 mW | CSA, TUV, UL | 1750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9A0912L4021FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 28.2 CFM (0.790m³/min) | 0.054 in H2O (13.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 23.0dB(A) | 840 mW | CSA, TUV, UL | 1750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9A0912M4021FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 36.7 CFM (1.03m³/min) | 0.091 in H2O (22.7 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 1.44 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
