直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0512M702FAN AXIAL 52X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 0.205 CFM (0.006m³/min) | 0.086 in H2O (21.5 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 22.0dB(A) | 840 mW | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0505M702FAN AXIAL 52X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 52 | Box | Active | 5VDC | Square - 52mm L x 52mm H | 7.2 CFM (0.202m³/min) | 0.086 in H2O (21.5 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 22.0dB(A) | 750 mW | CSA, TUV, UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
E9225X12B1-FSRFAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
MD4028V24B-FSR-PCFAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
MD4028 | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Parylene Coating, Thermal Overload Protector (TOP) | 28.00mm | 53.1dB(A) | - | cUL, TUV, UL | 15000 RPM | - | 2 Wire Leads | - |
|

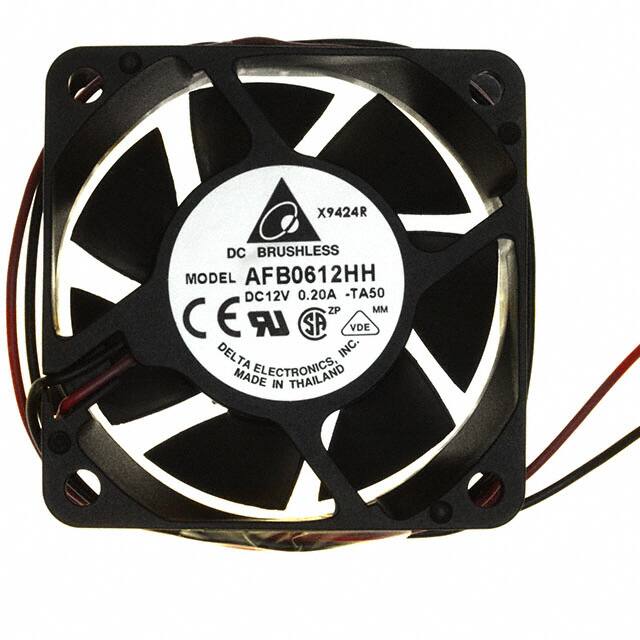

AFB0612HH-TA50FAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.294 in H2O (73.2 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 40.0dB(A) | 2.04 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
.GN.JPG)
|
KD1206PHB1.(2).GNFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.092 lb (41.73 g) | Tubeaxial | - | 15.00mm | 37.0dB(A) | 1.9 W | CE, CUR, TUV, UL | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KD1206PHB2.(2).GNFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | - | 15.00mm | 32.0dB(A) | 1.1 W | CE, CUR, TUV, UL | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0351012V2B-3T3FAN 35X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 5.5 CFM (0.154m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 480 mW | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0351012U2B-3T3FAN 35X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 4.4 CFM (0.123m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 23.0dB(A) | 360 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922512V2B-2T2FAN 92X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 49.0dB(A) | 4.92 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
GFC0412DS-TP01FAN AXIAL DUAL 40X56MM 12VDC |
13,658 | - |
|
数据表 |
GFC | Box | Active | 12VDC | Square - 40mm L x 40mm H | 30.5 CFM (0.854m³/min) | 1.726 in H2O (429.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 61.0dB(A) | 12 W | CE, cURus, TUV | 15300 Front, 11300 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | - |
|
612NHFAN AXIAL 60X25.4MM 12VDC WIRE |
1,515 | - |
|
数据表 |
600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.1 CFM (0.759m³/min) | - | Ball | 0.187 lb (84.82 g) | Tubeaxial | - | 25.40mm | 37.0dB(A) | 2 W | CE, CSA, UL, VDE | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
624HFAN AXIAL 60X25.4MM 24VDC WIRE |
983 | - |
|
数据表 |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 27.1 CFM (0.759m³/min) | - | Ball | 0.187 lb (84.82 g) | Tubeaxial | - | 25.40mm | 39.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 6850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
622HFAN AXIAL 60X25.4MM 12VDC WIRE |
447 | - |
|
数据表 |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 27.1 CFM (0.759m³/min) | - | Ball | 0.187 lb (84.82 g) | Tubeaxial | - | 25.40mm | 39.0dB(A) | 2.3 W | CE, CSA, UL, VDE | 6850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
624HHFAN AXIAL 60X25.4MM 24VDC WIRE |
225 | - |
|
数据表 |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 0.187 lb (84.82 g) | Tubeaxial | - | 25.40mm | 43.0dB(A) | 3.6 W | CE, CSA, UL, VDE | 8200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
622HHFAN AXIAL 60X25.4MM 12VDC WIRE |
192 | - |
|
数据表 |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 0.187 lb (84.82 g) | Tubeaxial | - | 25.40mm | 43.0dB(A) | 3.5 W | CE, CSA, UL, VDE | 8200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
BF.jpg)
|
CFM-A225BF-258-597-22FAN AXIAL 120X25.4MM 24VDC WIRE |
133 | - |
|
数据表 |
CFM-120BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 185.5 CFM (5.19m³/min) | 0.980 in H2O (244.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 59.7dB(A) | 27.36 W | CE, cURus, TUV | 5800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
OD1238-12HBIP68FAN AXIAL 120X38MM 12VDC WIRE |
548 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart | 38.00mm | 44.1dB(A) | 6 W | CE, cURus, TUV, UR | 2895 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
OD1238-24HBIP55FAN AXIAL 120X38MM 24VDC WIRE |
191 | - |
|
数据表 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart | 38.00mm | 44.1dB(A) | 12 W | CE, cURus, TUV, UR | 2895 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

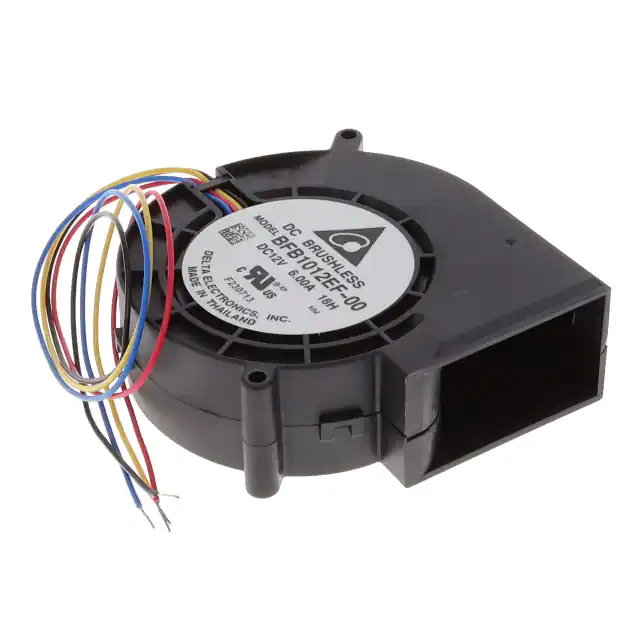

BFB1012EF-0018HFAN BLOWER 96.6X32.9MM 12VDC |
1,179 | - |
|
数据表 |
BFB - High-Performance | Box | Active | 12VDC | Rectangular/Rounded - 96.6mm L x 94.3mm H | 56.1 CFM (1.57m³/min) | 6.903 in H2O (1719.5 Pa) | Ball | 0.397 lb (180.08 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.90mm | 69.0dB(A) | 60 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
