直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0602524J2B-2T2FAN 60X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 26.0dB(A) | 4.8 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602524M2B-2T2FAN 60X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 3.6 W | CE, cURus | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602524H2B-2T2FAN 60X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 6.72 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802548M2B-BT4FAN 80X25MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 44.0dB(A) | 12 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0802548L2B-BT4FAN 80X25MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 42.0dB(A) | 9.6 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0922548V2B-2T0FAN 92X25MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 49.0dB(A) | 19.68 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0922524V2B-3T0FAN 92X25MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 9.84 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
PFB0624GHE-TD88FAN AXIAL 60X38MM 24VDC WIRE |
1,350 | - |
|
数据表 |
PFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 57.5dB(A) | 10.32 W | CE, CSA, UL, VDE | 10000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
DC0802548I2B-BT4FAN 80X25MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 37.0dB(A) | 6.24 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
614NGHFAN AXIAL 60X25.4MM 24VDC WIRE |
276 | - |
|
数据表 |
600NG | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.3 CFM (0.708m³/min) | 0.363 in H2O (90.5 Pa) | Sintec | 0.146 lb (66.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.40mm | 41.0dB(A) | 2.5 W | CE, CSA, EAC, UL, VDE | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
OD1238-24LBFAN AXIAL 120X38.5MM 24VDC WIRE |
413 | - |
|
数据表 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 33.0dB | 4 W | cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

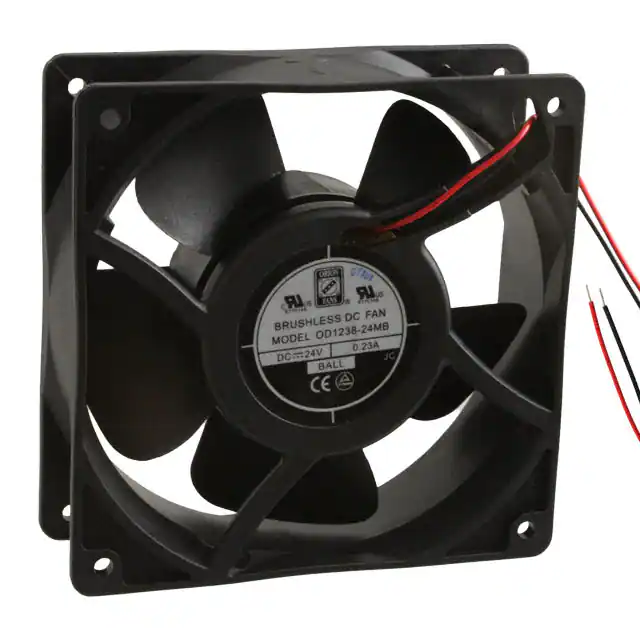

OD1238-24MBFAN AXIAL 120X38MM 24VDC WIRE |
192 | - |
|
数据表 |
OD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.72 lb (326.59 g) | Tubeaxial | - | 38.00mm | 41.0dB | 6 W | cURus, TUV | 2540 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9GA0924P4G03FAN AXIAL 92X25MM 24VDC WIRE |
207 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 68.1 CFM (1.91m³/min) | 0.326 in H2O (81.2 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 3.6 W | CSA, TUV, UL | 4400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
SG40281B1-000U-G99FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
SG | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 25.6 CFM (0.717m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 58.5dB(A) | 6.24 W | CUR, TUV, UL | 19000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD8038-24HBIP69KFAN AXIAL 80X38MM 24VDC WIRE |
426 | - |
|
数据表 |
OD8038-IP69K | Box | Active | 24VDC | Square - 80mm L x 80mm H | 71.0 CFM (1.99m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 49.0dB(A) | 7.2 W | CE, cURus, TUV, UR | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
17000194AFAN AXL 25X10MM CR0212MB-G50(GL) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 2.1 CFM (0.059m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 23.0dB(A) | 720 mW | CE, cUL, TUV, UL | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000195AFAN 25X10 CR0205MB-G50(GLT) 5VDC |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 2.1 CFM (0.059m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 23.0dB(A) | 450 mW | CE, cUL, TUV, UL | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9RA1224P4G001FAN AXIAL 120X25MM 24VDC WIRE |
170 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 6.72 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
17000196AFAN AXL 25X10MM CR0212DB-G50(GL) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 1.1 CFM (0.031m³/min) | 0.040 in H2O (10.0 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.00mm | 12.5dB(A) | 480 mW | CE, cUL, TUV, UL | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
.jpg)
|
9GV0624P1G031FAN AXIAL 60X38MM 24VDC WIRE |
849 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 33.6 W | CSA, TUV, UL | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
