直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17000193AFAN 57.25X15.2MM CRB0612UB-D03 Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 57.25mm L x 50.37mm H | 8.3 CFM (0.232m³/min) | 0.910 in H2O (226.7 Pa) | Ball | 0.079 lb (35.83 g) | Blower | Auto Restart, Locked Rotor Protection | 15.20mm | 47.2dB(A) | 3.12 W | CE, cUL, TUV, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19030613AFAN AXIAL 80X32MM 12VDC ST12K3 Comair Rotron |
167 | - |
|
数据表 |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.325 in H2O (80.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 44.2dB(A) | 4.4 W | CE, CSA, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19028933AFAN AXIAL 79.8X41.8MM 12V SD12B1 Comair Rotron |
107 | - |
|
数据表 |
Sprite | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031706AFAN AXIAL 79.8X41.8MM 24V SD24K5 Comair Rotron |
266 | - |
|
数据表 |
Sprite | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 50.0 CFM (1.40m³/min) | 0.256 in H2O (63.8 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 41.80mm | 55.4dB(A) | 7.7 W | CE, UL | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

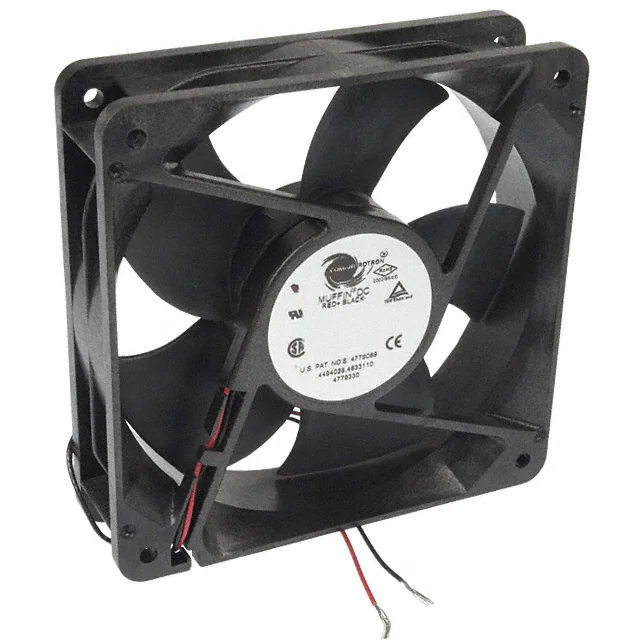

19032489AFAN AXIAL 120X32MM 12VDC MC12B3 Comair Rotron |
266 | - |
|
数据表 |
Muffin | Box | Active | 12VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 47.8dB(A) | 7.9 W | CE, UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19028867AFAN AXIAL 119.1X39.1MM MD48B1 Comair Rotron |
121 | - |
|
数据表 |
Muffin XL | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.12mm | 50.0dB(A) | 5.8 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031076AFAN AXIAL 127X38.1MM 48V GL48B4 Comair Rotron |
130 | - |
|
数据表 |
Galaxy | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 53.6dB(A) | 15 W | CE, UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
16003387AFAN BLWR 80X32.4MM 24V WT24Z7-E2 Comair Rotron |
578 | - |
|
数据表 |
Whiffet | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 20.0 CFM (0.560m³/min) | - | Ball | - | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 56.8dB(A) | 10.2 W | CE, UL | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
19031074AFAN AXIAL 127X38.1MM 12V GL12B4 Comair Rotron |
190 | - |
|
数据表 |
Galaxy | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 53.6dB(A) | 16 W | CE, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
19039692AFAN AXIAL 171.4X50.8MM JQD24Z3A2 Comair Rotron |
266 | - |
|
数据表 |
Major | Bulk | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 64.1dB(A) | 35 W | CE, UL | 4450 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
