直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17001198AFAN AXIAL 48VDC PQD48U3E2X-E3 Comair Rotron |
47 | - |
|
数据表 |
Patriot | Bulk | Active | 48VDC | Round - 171.4mm Dia | 332.0 CFM (9.30m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 64.0dB(A) | 40.8 W | CE, cUL, UL | 4830 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
19031263AFAN AXIAL 172X50.8MM 24V PQ24B7 Comair Rotron |
140 | - |
|
数据表 |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 51.2dB(A) | 24 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
17001191AFAN AXIAL 24VDC PQD24B3E2X-E3 Comair Rotron |
36 | - |
|
数据表 |
Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 235.0 CFM (6.58m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 54.3dB(A) | 24 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

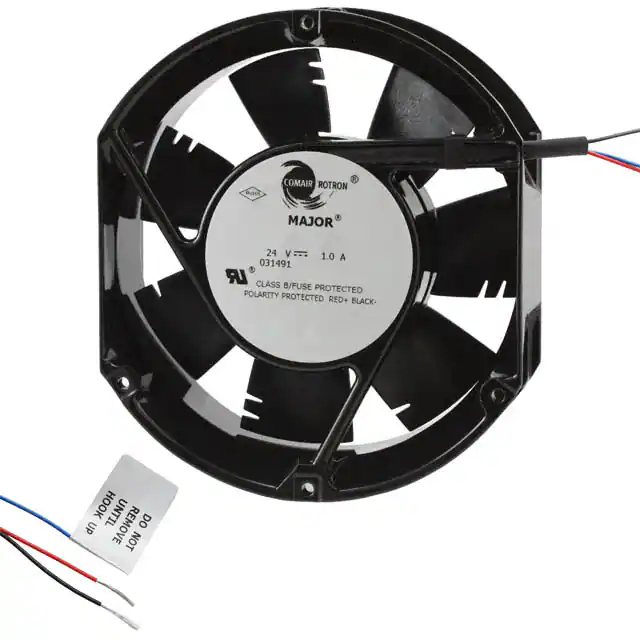

19031491AFAN AXIAL 171.5X50.8MM JQ24B7 Comair Rotron |
185 | - |
|
数据表 |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 54.3dB(A) | 20.3 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19031092AFAN AXIAL 171.5X50.8MM JQ12C4 Comair Rotron |
402 | - |
|
数据表 |
Major | Box | Active | 12VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 200.0 CFM (5.60m³/min) | 0.615 in H2O (153.2 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 49.0dB(A) | 18 W | CE, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
17002054ACR9225-XD12BPL Comair Rotron |
500 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.0 CFM (2.46m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 58.0dB(A) | 6.96 W | CE, UL | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17002062ACR9225-XD48BPL Comair Rotron |
500 | - |
|
数据表 |
- | Box | Active | 48VDC | Square - 92mm L x 92mm H | 88.0 CFM (2.46m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 58.0dB(A) | 6.72 W | CE, UL | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17002059ACR9225-LD48BPL Comair Rotron |
500 | - |
|
数据表 |
- | Box | Active | 48VDC | Square - 92mm L x 92mm H | 48.0 CFM (1.34m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 46.0dB(A) | 1.92 W | CE, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17002055ACR9225-LD24BPL Comair Rotron |
500 | - |
|
数据表 |
- | Box | Active | 24VDC | Square - 92mm L x 92mm H | 48.0 CFM (1.34m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 46.0dB(A) | 2.64 W | CE, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17002057ACR9225-HD24BPL Comair Rotron |
500 | - |
|
数据表 |
- | Box | Active | 24VDC | Square - 92mm L x 92mm H | 64.0 CFM (1.79m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 50.0dB(A) | 5.04 W | CE, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
