直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19032525AFAN AXIAL 120X38.1MM 12V MS12B3 Comair Rotron |
205 | - |
|
数据表 |
Muffin XP | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 49.1dB(A) | 7 W | cUL, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

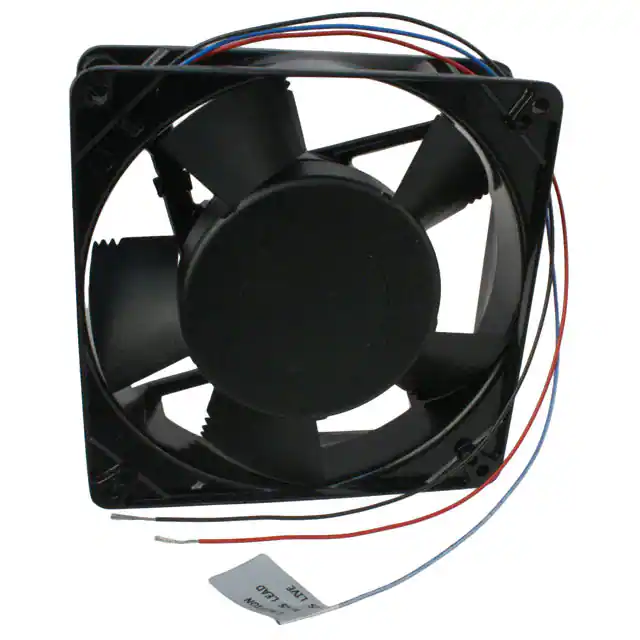

19031377AFAN AXIAL 127X38.1MM 48V GL48B7 Comair Rotron |
199 | - |
|
数据表 |
Galaxy | Box | Active | 48VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.10mm | 53.6dB(A) | 15 W | UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19028887AFAN AXIAL 119.1X39.1MM MD48B5 Comair Rotron |
123 | - |
|
数据表 |
Muffin XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 39.12mm | 50.0dB(A) | 5.8 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
17000300AFAN AXIAL 127X38.1MM GL12Z3 Comair Rotron |
86 | - |
|
数据表 |
Galaxy | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 192.0 CFM (5.38m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 59.4dB(A) | 31.6 W | CE, cUL, UL | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031083AFAN AXIAL 172X50.8MM 12V PQ12B4 Comair Rotron |
80 | - |
|
数据表 |
Patriot | Bulk | Active | 12VDC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 51.2dB(A) | 25.2 W | CE, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
17001159AFAN AXIAL 12VDC MSD12K3E2X-E3 Comair Rotron |
116 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 51.8dB(A) | 11 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

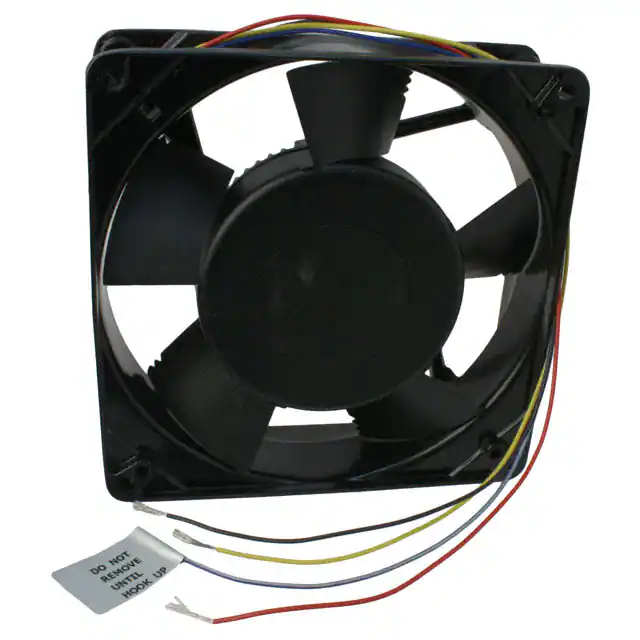

19031239AFAN AXIAL 127X38.1MM 48V GL48R7 Comair Rotron |
190 | - |
|
数据表 |
Galaxy | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.10mm | 53.6dB(A) | 15 W | CE, UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

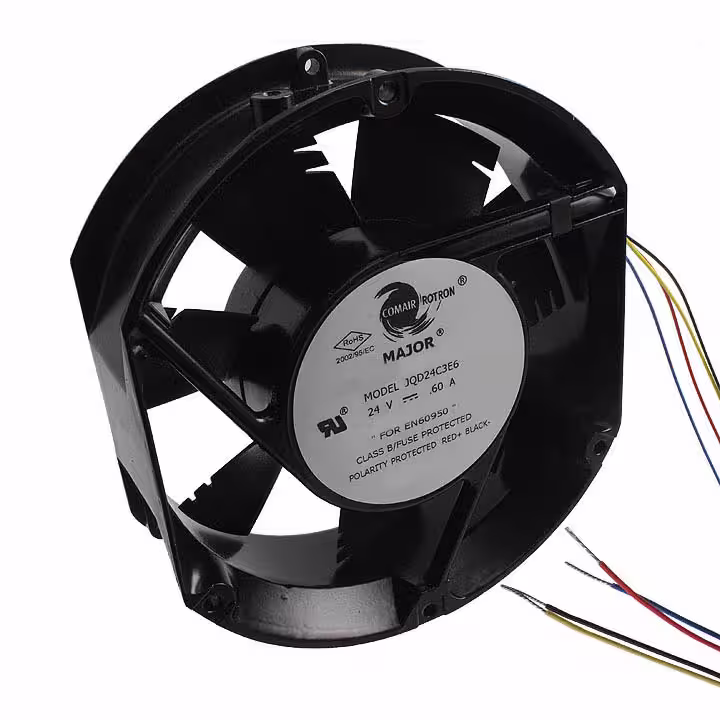

16005460AFAN AXIAL 171.4X50.8MM JQD24C3E6 Comair Rotron |
76 | - |
|
数据表 |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 200.0 CFM (5.60m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 50.8dB(A) | 14.4 W | CE, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

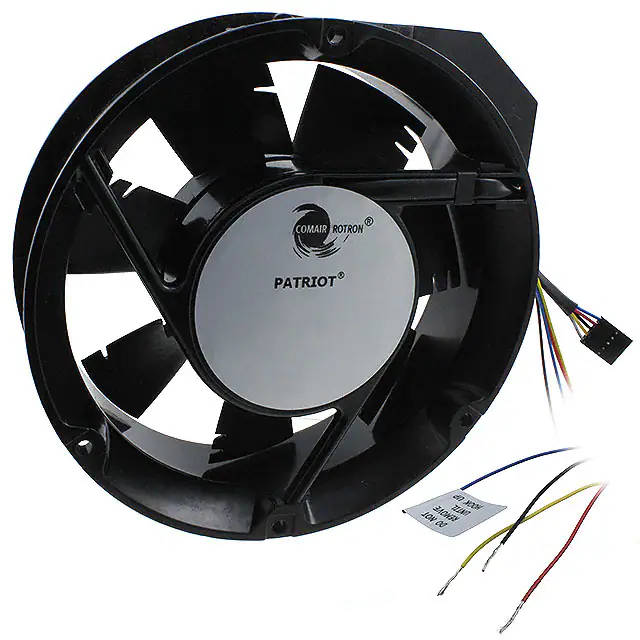

19039696AFAN AXIAL 171.4X50.8MM PQD48Z3A2 Comair Rotron |
209 | - |
|
数据表 |
Patriot | Bulk | Active | 48VDC | Round - 171.4mm Dia | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.2dB(A) | 35 W | CE, cUL, UL | 4450 RPM | -40 ~ 185°F (-40 ~ 85°C) | 5 Position Rectangular Connector | - |
|
17001180AFAN AXIAL 48VDC GLD48U3E2X-E3 Comair Rotron |
36 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 240.0 CFM (6.72m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 65.0dB(A) | 38.4 W | CE, cUL, UL | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
