直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17000302AFAN BLOWER 50.8MM SPDD24K1 24VDC Comair Rotron |
72 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square/Rounded - 161.8mm L x 161.8mm H | 100.5 CFM (2.81m³/min) | - | Ball | - | Blower | Auto Restart, Locked Rotor Protection | 50.80mm | 67.2dB(A) | 75.3 W | CE, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

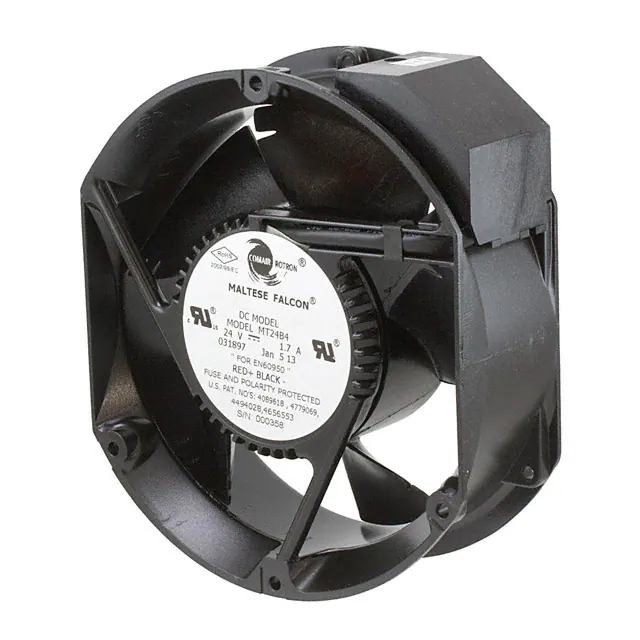

19031897AFAN AXIAL 171.5X55MM 24V MT24B4 Comair Rotron |
680 | - |
|
数据表 |
Maltese | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 55.00mm | 57.1dB(A) | 35.5 W | cUL, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

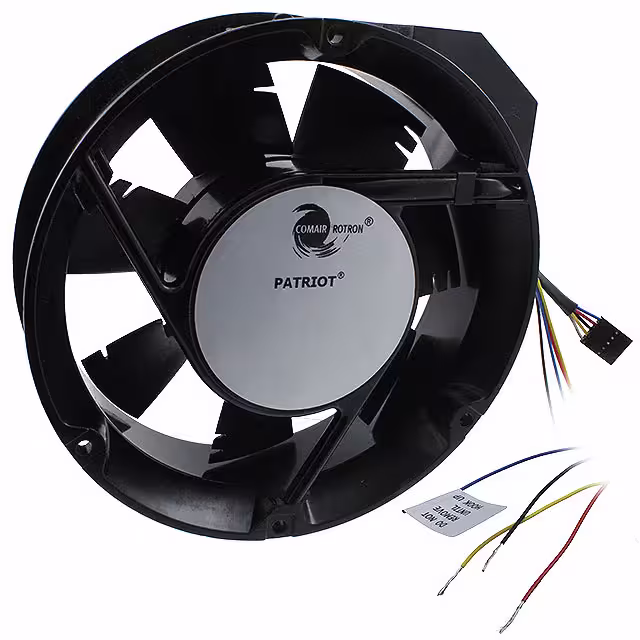

19039695AFAN AXIAL 171.4X50.8MM PQD24Z3A2 Comair Rotron |
66 | - |
|
数据表 |
Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.2dB(A) | 35 W | CE, UL | 4450 RPM | -40 ~ 185°F (-40 ~ 85°C) | 5 Position Rectangular Connector | - |
|
17001179AFAN AXIAL 24VDC GLD24U3E2X-E3 Comair Rotron |
116 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 240.0 CFM (6.72m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 65.0dB(A) | 39.1 W | CE, cUL, UL | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

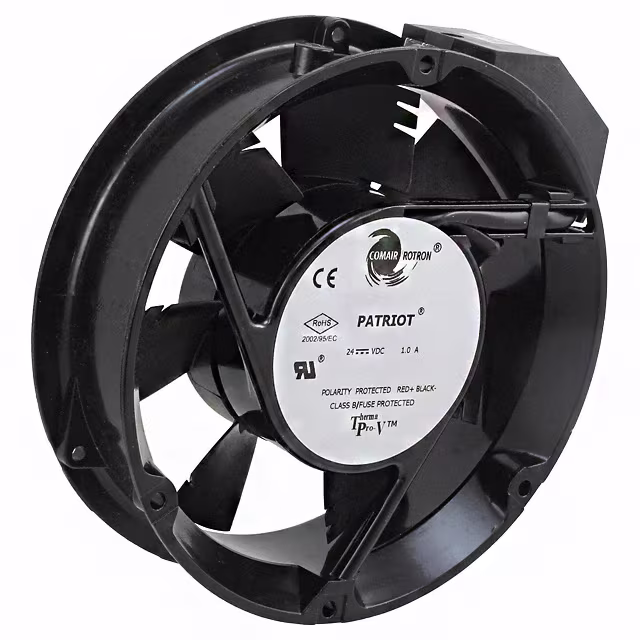

19039299AFAN AXIAL 172.7X50.8MM PQ24S4HX Comair Rotron |
250 | - |
|
数据表 |
Patriot | Bulk | Active | 24VDC | Round - 172.7mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Temperature Dependent Speed Control | 50.80mm | 51.2dB(A) | 20.3 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
19031328AFAN AXIAL 171.5X50.8MM JQ48B7 Comair Rotron |
128 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 54.3dB(A) | 20.1 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
17001197AFAN AXIAL 24VDC PQD24U3E2X-E3 Comair Rotron |
58 | - |
|
数据表 |
Patriot | Bulk | Active | 24VDC | Round - 171.4mm Dia | 332.0 CFM (9.30m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 64.0dB(A) | 40.8 W | CE, cUL, UL | 4830 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17000177AFAN 51.11X15MM CRB05112MB150300 Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 51.11mm L x 47.76mm H | 3.3 CFM (0.092m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.057 lb (25.85 g) | Blower | Auto Restart, Locked Rotor Protection | 15.00mm | 37.1dB(A) | 960 mW | CE, cUL, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
17000179AFAN 51.11X15MM CRB05112LB150300 Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 51.11mm L x 47.76mm H | 2.4 CFM (0.067m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.057 lb (25.85 g) | Blower | Auto Restart, Locked Rotor Protection | 15.00mm | 31.6dB(A) | 600 mW | CE, cUL, TUV, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

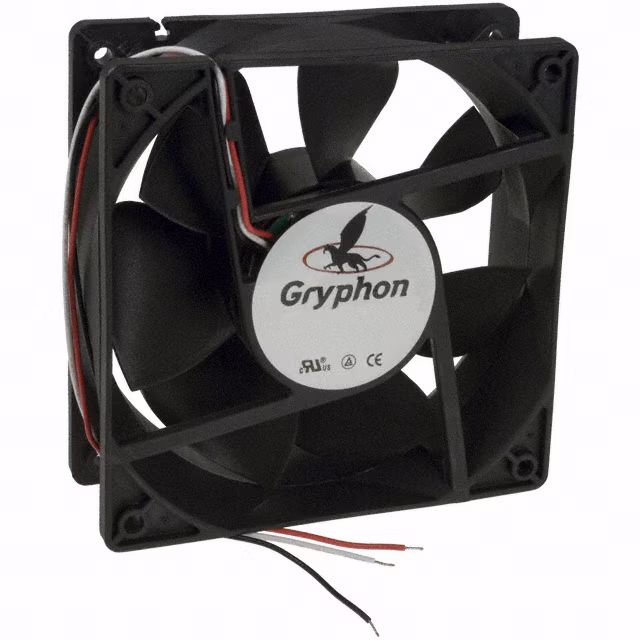

GDA1238-48BBFAN AXIAL 120X38MM 48VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 48VDC | Square - 120mm L x 120mm H | 128.0 CFM (3.58m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.586 lb (265.81 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 40.8dB(A) | 16.8 W | - | 3000 RPM | - | 3 Wire Leads | - |
