直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19032183AFAN BLOWER 160.7X50.2MM SPD24B1 Comair Rotron |
92 | - |
|
数据表 |
Spinnaker | Bulk | Active | 24VDC | Rectangular/Rounded - 160.7mm L x 161.3mm H | 60.0 CFM (1.68m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 2.1 lbs (952.5 g) | Blower | Auto Restart, Locked Rotor Protection | 50.20mm | 57.0dB(A) | 30 W | UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

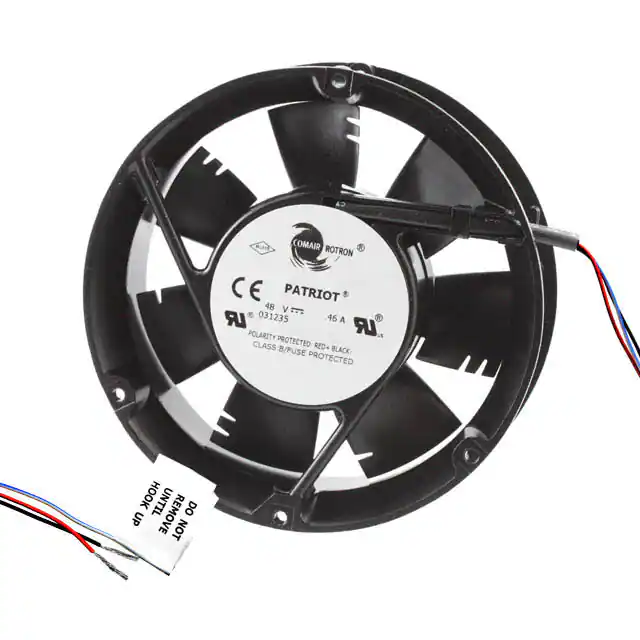

19031235AFAN AXIAL 172X50.8MM 48V PQ48B7 Comair Rotron |
288 | - |
|
数据表 |
Patriot | Box | Active | 48VDC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 51.2dB(A) | 22 W | CE, cUL, UL | 3475 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19031769AFAN AXIAL 175.5X111.8MM TD24B1 Comair Rotron |
550 | - |
|
数据表 |
Tarzan | Bulk | Active | 24VDC | Square - 175.5mm L x 175.5mm H | 325.0 CFM (9.10m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 5 lbs (2.3 kg) | Tubeaxial | Auto Restart, Locked Rotor Protection | 111.8mm | 65.2dB(A) | 36 W | cUL, UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19044019AFAN AXIAL 172X51MM MFXE24Z1D3-E2 Comair Rotron |
206 | - |
|
数据表 |
Mixtus | Box | Active | 24VDC | Round - 171.5mm Dia | 400.0 CFM (11.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 50.80mm | 69.0dB(A) | 74.4 W | CE, UL | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
17000184AFAN AXL 80X32MM CR08012LB327B00 Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 52.2 CFM (1.46m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 40.4dB(A) | 3 W | CE, cUL, TUV, UL | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031618AFAN AXIAL 120X32MM 24VDC MC24K3 Comair Rotron |
737 | - |
|
数据表 |
Muffin | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 118.0 CFM (3.30m³/min) | 0.505 in H2O (125.8 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 56.3dB(A) | 10.6 W | UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19030616AFAN AXIAL 80X32MM 24VDC ST24B3 Comair Rotron |
657 | - |
|
数据表 |
Sprint | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 40.9dB(A) | 3.3 W | CE, CSA, TUV, UL | 3440 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

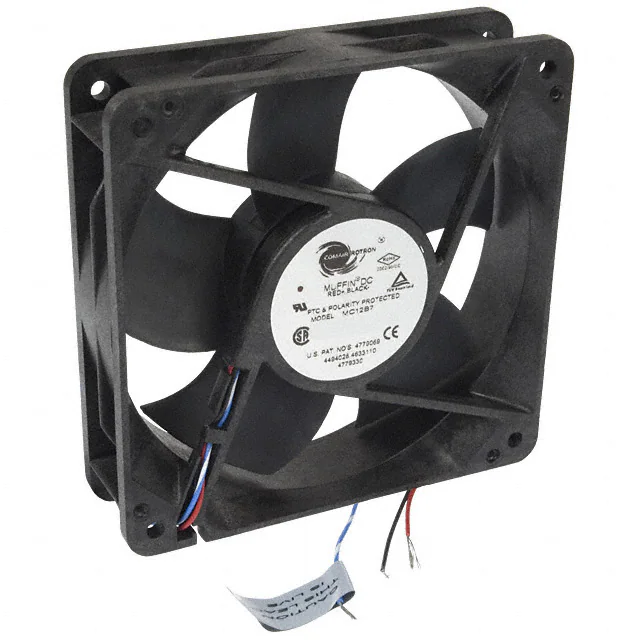

19030598AFAN AXIAL 120X32MM 12VDC MC12B7 Comair Rotron |
182 | - |
|
数据表 |
Muffin | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 47.8dB(A) | 7.9 W | CSA, TUV, UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
19030829AFAN AXIAL 80X32MM BALL 5V ST05B3 Comair Rotron |
277 | - |
|
数据表 |
Sprint | Box | Active | 5VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 40.9dB(A) | 2.3 W | CE, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

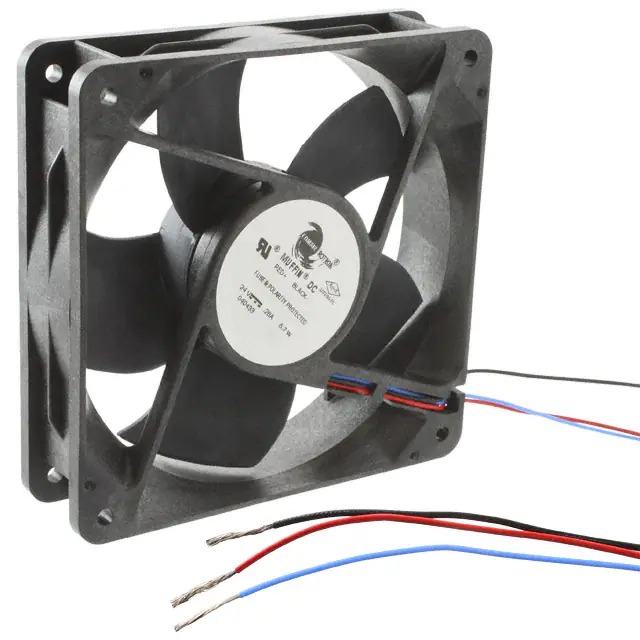

19040433AFAN AXIAL 120X32MM 24V MC24B3NDN Comair Rotron |
235 | - |
|
数据表 |
Muffin | Box | Active | 24VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 32.00mm | 47.8dB(A) | 5.5 W | UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
