直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19028868AFAN AXIAL 119.1X39.1MM MD12B2 Comair Rotron |
130 | - |
|
数据表 |
Muffin XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.12mm | 50.0dB(A) | 6 W | CE, UL | 3330 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
GDA1238-12BBFAN AXIAL 120X38MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 128.0 CFM (3.58m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.586 lb (265.81 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 43.5dB(A) | 7.2 W | - | 3000 RPM | - | 3 Wire Leads | - |
|
|
GDA1238-24BBFAN AXIAL 120X38MM 24VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 128.0 CFM (3.58m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.586 lb (265.81 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 41.9dB(A) | 14.4 W | - | 3000 RPM | - | 3 Wire Leads | - |
|
19032002AFAN AXIAL 79.8X41.8MM 24V SD24B2 Comair Rotron |
277 | - |
|
数据表 |
Sprite | Bulk | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
19030622AFAN BLOWER 120.7X31MM 24V BD24B7 Comair Rotron |
190 | - |
|
数据表 |
Biscuit | Bulk | Active | 24VDC | Square/Rounded - 120.7mm L x 120.7mm H | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 0.619 lb (280.77 g) | Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 31.00mm | 51.2dB(A) | 11.5 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19039646AFAN AXIAL 119X39MM MDD48K6S3 Comair Rotron |
125 | - |
|
数据表 |
Muffin XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 128.0 CFM (3.58m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 39.12mm | 53.2dB(A) | 7.7 W | CE, UL | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
19031085AFAN AXIAL 172X50.8MM 48V PQ48B4 Comair Rotron |
425 | - |
|
数据表 |
Patriot | Bulk | Active | 48VDC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 51.2dB(A) | 22 W | CE, cUL, UL | 3475 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
19031089AFAN AXIAL 171.5X50.8MM JQ12B4 Comair Rotron |
619 | - |
|
数据表 |
Major | Bulk | Active | 12VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 54.3dB(A) | 25.2 W | CE, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

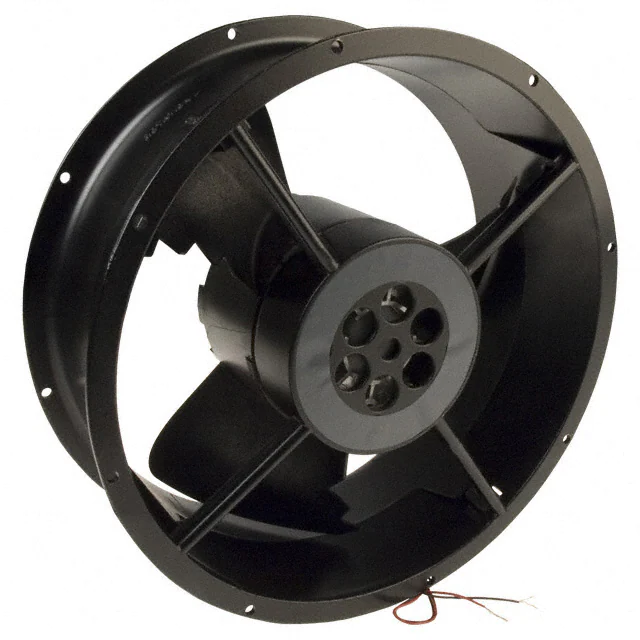

19031573AFAN AXIAL 254X88.9MM 24V CD24B3 Comair Rotron |
571 | - |
|
数据表 |
Caravel | Box | Active | 24VDC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | Auto Restart, Locked Rotor Protection | 88.90mm | 49.1dB(A) | 29 W | CE, cUL, UL | 1650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031856AFAN AXIAL 171.5X55MM 12V MT12B3 Comair Rotron |
47 | - |
|
数据表 |
Maltese | Bulk | Active | 12VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 55.00mm | 57.1dB(A) | 36 W | cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
