直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

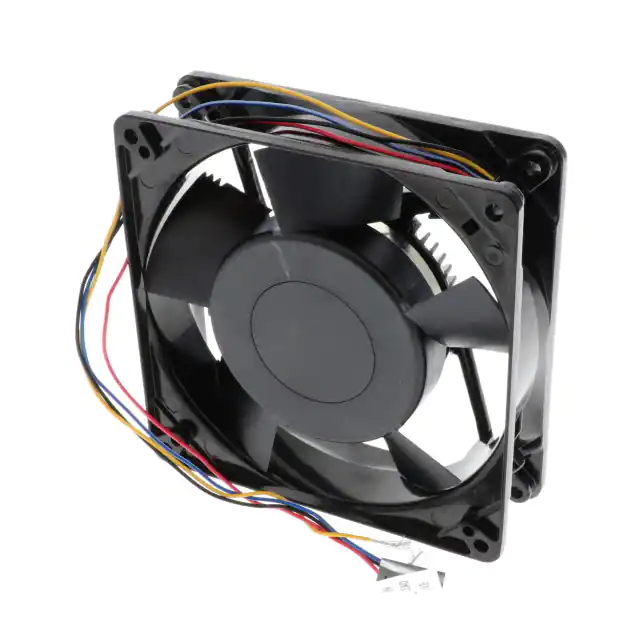

17001171AFAN AXIAL 24VDC GLD24B3E2X-E3 Comair Rotron |
316 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 53.6dB(A) | 15.1 W | CE, cUL, UL | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
19031200AFAN AXIAL 127X38.1MM 12V GL12B7 Comair Rotron |
225 | - |
|
数据表 |
Galaxy | Box | Active | 12VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 38.10mm | 53.6dB(A) | 16 W | UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19032364AFAN BLWR 160.7X50.2MM SPD24B1QDN Comair Rotron |
190 | - |
|
数据表 |
Spinnaker | Box | Active | 24VDC | Rectangular/Rounded - 160.7mm L x 161.3mm H | 60.0 CFM (1.68m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 2.1 lbs (952.5 g) | Blower | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 50.20mm | 57.0dB(A) | 30 W | UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19031767AFAN AXIAL 254X88.9MM 48V CD48B3 Comair Rotron |
284 | - |
|
数据表 |
Caravel | Bulk | Active | 48VDC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | Auto Restart, Locked Rotor Protection | 88.90mm | 49.1dB(A) | 30.2 W | CE, cUL, UL | 1640 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19041286AFAN AXIAL 172X50.8MM JQD48Z6E6X Comair Rotron |
218 | - |
|
数据表 |
Major | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 1.540 in H2O (383.6 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.0dB(A) | 36 W | CSA, UL | 4560 RPM | 14 ~ 167°F (-10 ~ 75°C) | 4 Position Rectangular Connector | - |
|
19031104AFAN BLOWER 80X32.4MM 24V WT24M3 Comair Rotron |
131 | - |
|
数据表 |
Whiffet | Box | Active | 24VDC | Square - 80mm L x 80mm H | 8.7 CFM (0.244m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.369 lb (167.38 g) | Blower | Auto Restart, Locked Rotor Protection | 32.40mm | 36.0dB(A) | 1.4 W | CE, cUL, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19032001AFAN AXIAL 79.8X41.8MM 12V SD12B2 Comair Rotron |
233 | - |
|
数据表 |
Sprite | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
19028885AFAN AXIAL 119.1X39.1MM MD12B5 Comair Rotron |
201 | - |
|
数据表 |
Muffin XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 39.12mm | 50.0dB(A) | 6 W | - | 3330 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19030615AFAN AXIAL 80X32MM 12VDC ST12B3 Comair Rotron |
140 | - |
|
数据表 |
Sprint | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 40.9dB(A) | 3.4 W | CSA, TUV, UL | 3400 RPM | 14 ~ 185°F (-10 ~ 85°C) | 2 Wire Leads | - |
|
19032527AFAN AXIAL 120X38.1MM 48V MS48B3 Comair Rotron |
193 | - |
|
数据表 |
Muffin XP | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 49.1dB(A) | 7.4 W | cUL, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
