直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19032105AFAN AXIAL 119.1X39.1MM MD28B5 Comair Rotron |
415 | - |
|
数据表 |
Muffin XL | Box | Active | 28VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 39.12mm | - | 6.5 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19028869AFAN AXIAL 119.1X39.1MM MD24B2 Comair Rotron |
470 | - |
|
数据表 |
Muffin XL | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.12mm | 50.0dB(A) | 6 W | CE, CSA, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

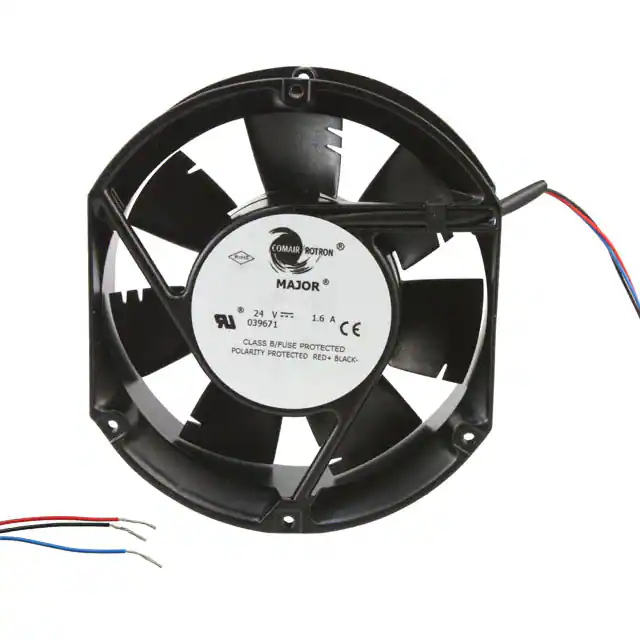

19039671AFAN AXIAL 171.4X50.8MM JQ24K7 Comair Rotron |
1,365 | - |
|
数据表 |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 283.0 CFM (7.92m³/min) | - | Ball | 0.02 lb (9.07 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 58.3dB(A) | 39 W | UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

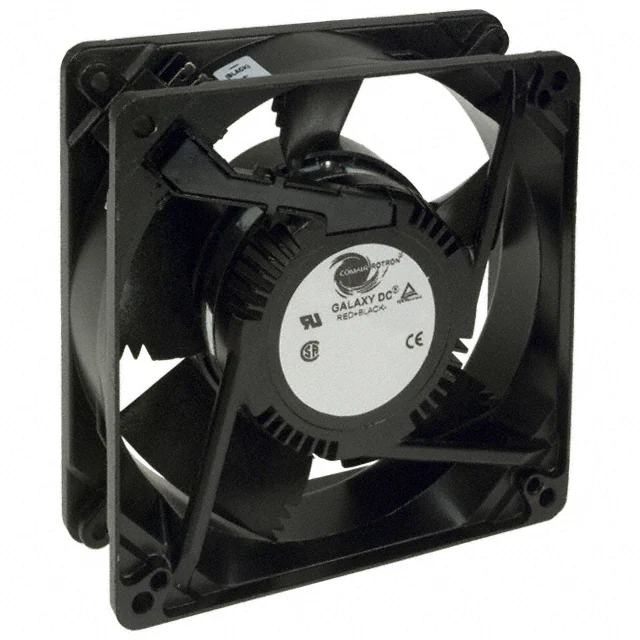

19031075AFAN AXIAL 127X38.1MM 24V GL24B4 Comair Rotron |
1,647 | - |
|
数据表 |
Galaxy | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 53.6dB(A) | 15 W | CE, UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
19031843AFAN AXIAL 171.5X55MM 24V MT24B3 Comair Rotron |
357 | - |
|
数据表 |
Maltese | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 55.00mm | 57.1dB(A) | 41 W | CE, cURus, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

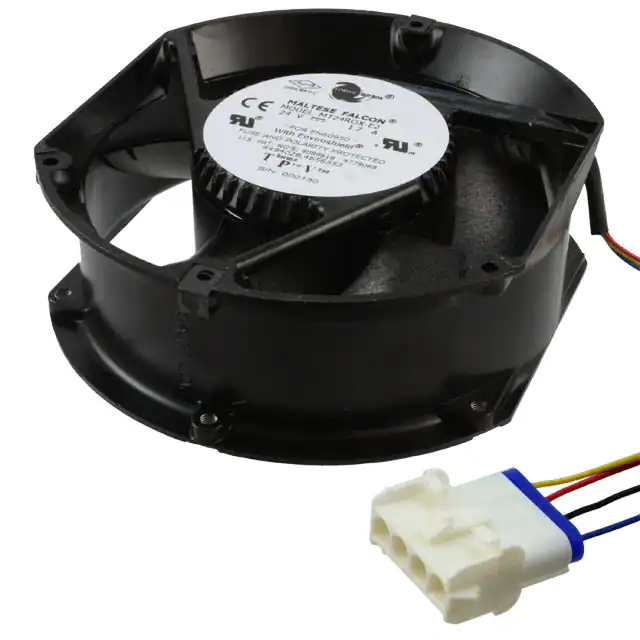

19041196AFAN AXIAL 171.5X55MM MT24R0X-E2 Comair Rotron |
483 | - |
|
数据表 |
Maltese | Box | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 345.0 CFM (9.66m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.00mm | 60.6dB(A) | 41 W | CE, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|

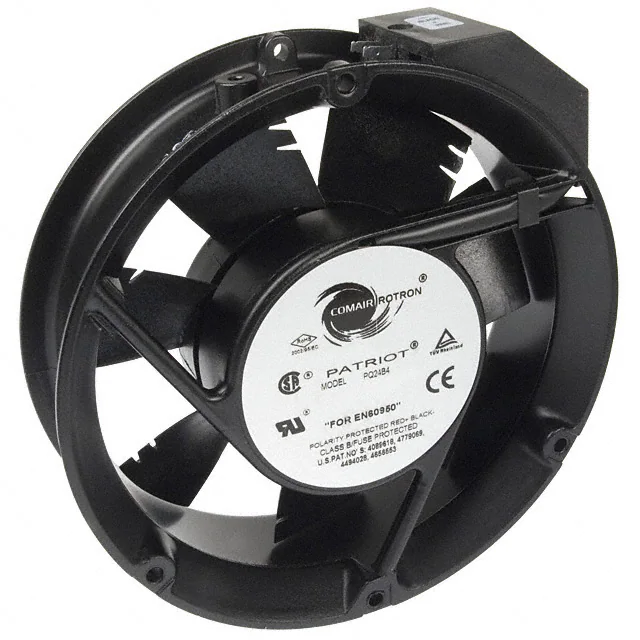

19031084AFAN AXIAL 172X50.8MM 24V PQ24B4 Comair Rotron |
228 | - |
|
数据表 |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 51.2dB(A) | 24 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
17001177AFAN AXIAL 24VDC GLD24Z3E2X-E3 Comair Rotron |
122 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 192.0 CFM (5.38m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 59.4dB(A) | 31.2 W | CE, cUL, UL | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

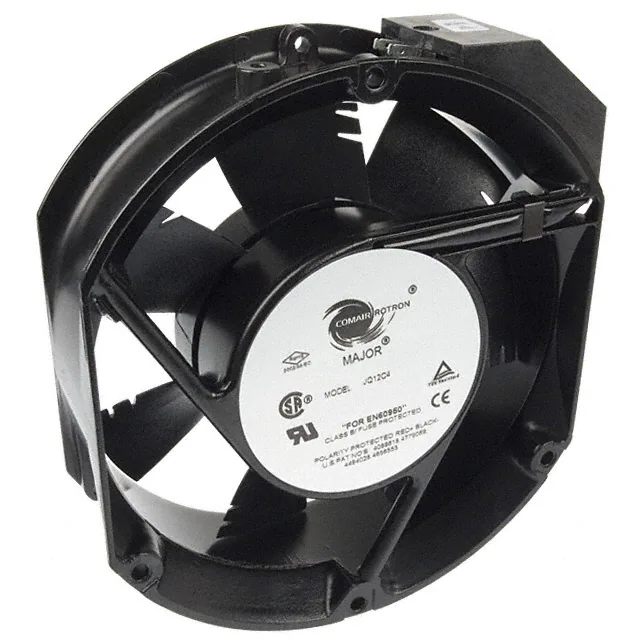

19031091AFAN AXIAL 171.5X50.8MM JQ48B4 Comair Rotron |
118 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 54.3dB(A) | 22 W | CE, cUL, UL | 3475 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

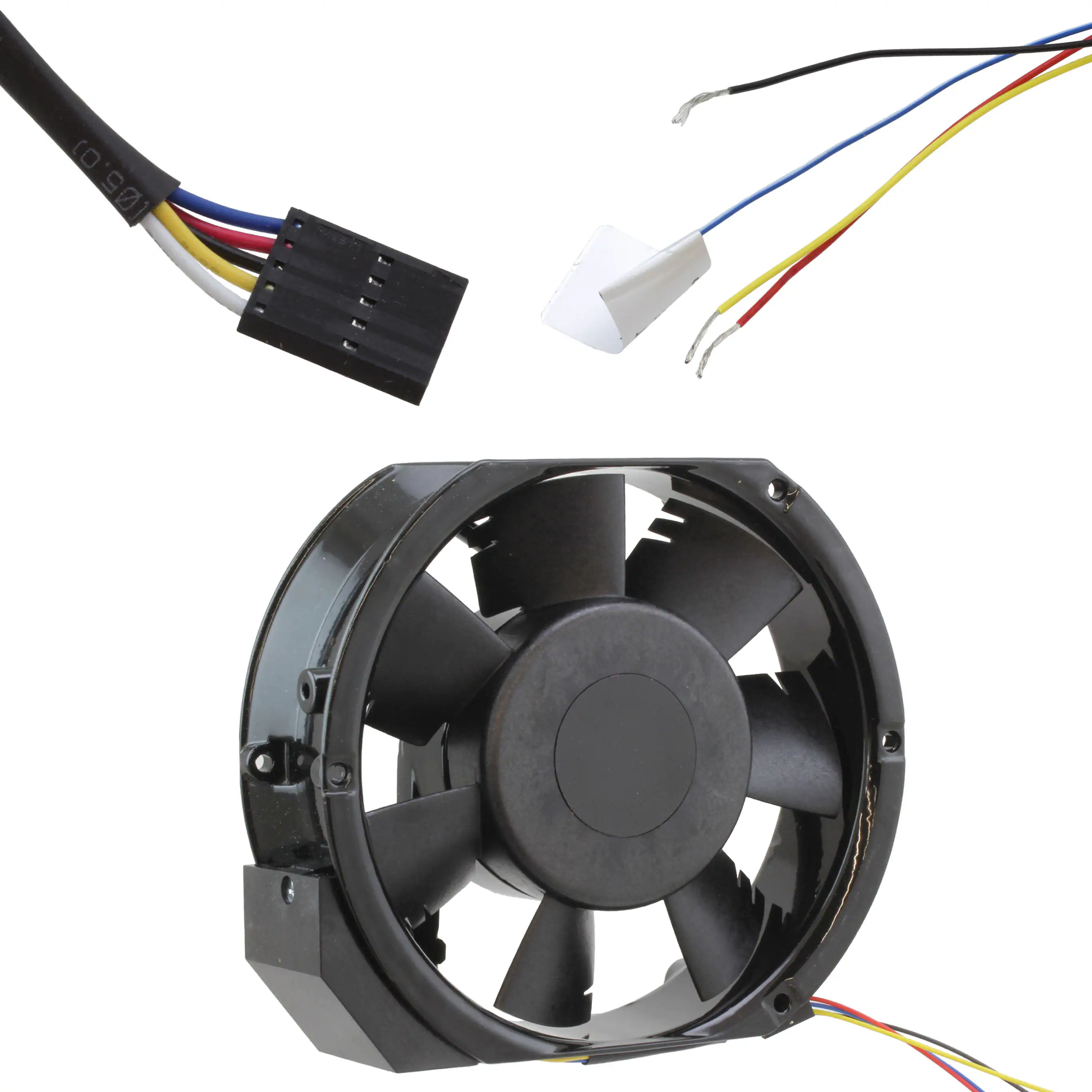

19039693AFAN AXIAL 171.4X50.8MM JQD48Z3A2 Comair Rotron |
317 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.2dB(A) | 35 W | CE, UL | 4450 RPM | -40 ~ 185°F (-40 ~ 85°C) | 5 Position Rectangular Connector | - |
