直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19030572AFAN AXIAL 120X32MM 24VDC MC24B3 Comair Rotron |
639 | - |
|
数据表 |
Muffin | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | - | Ball | 0.529 lb (239.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 47.8dB(A) | 6.7 W | CE, cUL, UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031101AFAN BLOWER 80X32.4MM 12V WT12B3 Comair Rotron |
832 | - |
|
数据表 |
Whiffet | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.0 CFM (0.420m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 0.369 lb (167.38 g) | Blower | Auto Restart, Locked Rotor Protection | 32.40mm | 51.4dB(A) | 5 W | CE, cUL, UL | 4050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19032526AFAN AXIAL 120X38.1MM 24V MS24B3 Comair Rotron |
252 | - |
|
数据表 |
Muffin XP | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 49.1dB(A) | 7 W | cUL, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19030621AFAN BLOWER 120.7X31MM 24V BD24B3 Comair Rotron |
222 | - |
|
数据表 |
Biscuit | Bulk | Active | 24VDC | Square/Rounded - 120.7mm L x 120.7mm H | 26.0 CFM (0.728m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 0.619 lb (280.77 g) | Blower | Auto Restart, Locked Rotor Protection | 31.00mm | 51.2dB(A) | 11.5 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19028935AFAN AXIAL 79.8X41.8MM 48V SD48B1 Comair Rotron |
431 | - |
|
数据表 |
Sprite | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19028886AFAN AXIAL 119.1X39.1MM MD24B5 Comair Rotron |
304 | - |
|
数据表 |
Muffin XL | Box | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 39.12mm | 50.0dB(A) | 6 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19028870AFAN AXIAL 119.1X39.1MM MD48B2 Comair Rotron |
104 | - |
|
数据表 |
Muffin XL | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.12mm | 50.0dB(A) | 5.8 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
19028866AFAN AXIAL 119.1X39.1MM MD24B1 Comair Rotron |
385 | - |
|
数据表 |
Muffin XL | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.12mm | 50.0dB(A) | 6 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031636AFAN AXIAL 127X38.1MM 24V GL24B7 Comair Rotron |
432 | - |
|
数据表 |
Galaxy | Box | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 38.10mm | 53.6dB(A) | 15 W | CE, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

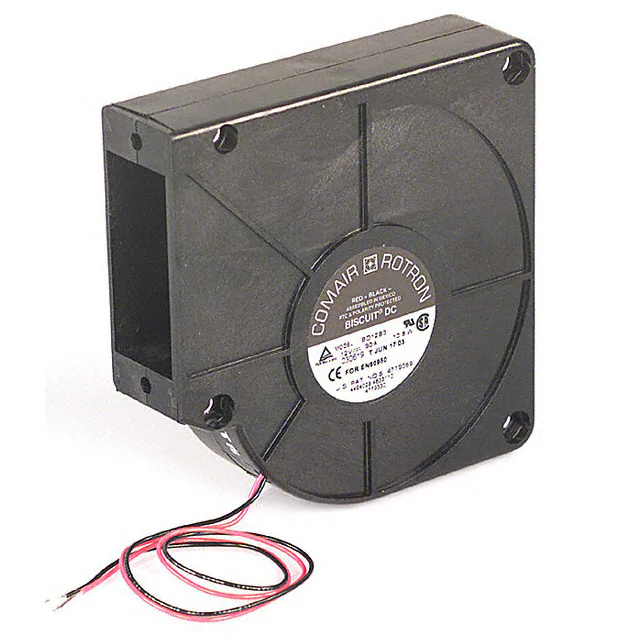

19030619AFAN BLOWER 120.7X31MM 12V BD12B3 Comair Rotron |
271 | - |
|
数据表 |
Biscuit | Bulk | Active | 12VDC | Square/Rounded - 120.7mm L x 120.7mm H | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 0.619 lb (280.77 g) | Blower | Auto Restart, Locked Rotor Protection | 31.00mm | 51.2dB(A) | 10.8 W | CE, UL | 3040 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
