直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0812H101FAN AXIAL 80X38MM 12VDC WIRE |
147 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 10.8 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G0624P4H001FAN AXIAL 60X25MM 24VDC WIRE |
631 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 6 W | cURus, TUV | 9500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
MS1238E48B-FHR-2EMFAN AXIAL 120X38MM 48VDC WIRE |
269 | - |
|
数据表 |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart | 38.00mm | 68.0dB(A) | - | - | 5000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
MS1238E24B-FHR-2EMFAN AXIAL 120X38MM 24VDC WIRE |
233 | - |
|
数据表 |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart | 38.00mm | 68.0dB(A) | - | - | 5000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

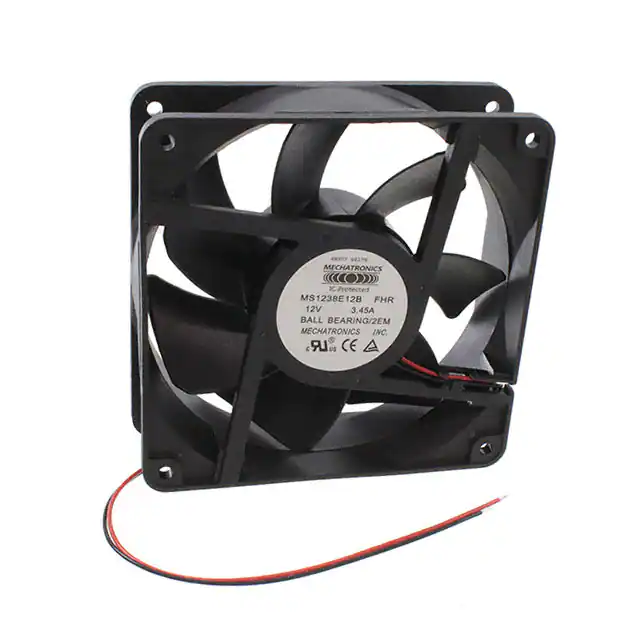

MS1238E12B-FHR-2EMFAN AXIAL 120X38MM 12VDC WIRE |
173 | - |
|
数据表 |
MS1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart | 38.00mm | 68.0dB(A) | - | - | 5000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
OD6038-24HHBXC10AFAN AXIAL 60X38MM 24VDC WIRE |
958 | - |
|
数据表 |
OD6038 XC | Box | Active | 24VDC | Square - 60mm L x 60mm H | 86.0 CFM (2.41m³/min) | 2.950 in H2O (734.8 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 30 W | cURus, TUV | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9RA1212G40011FAN AXIAL 120X25MM 12VDC WIRE |
132 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 6.6 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

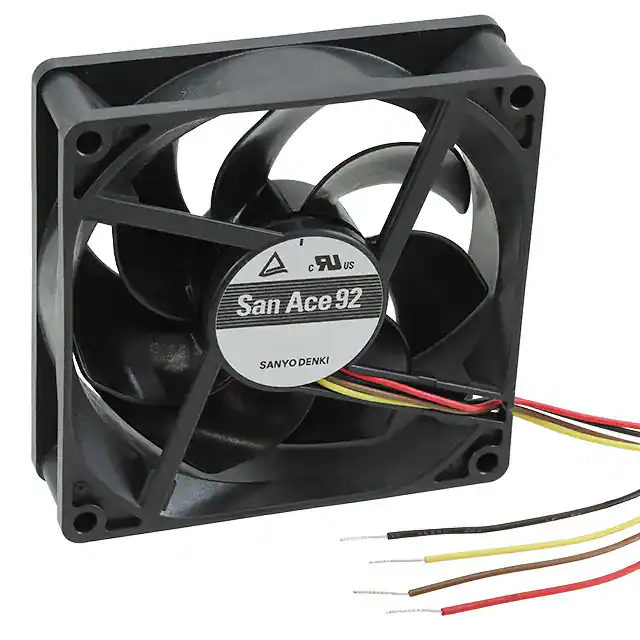

9GA0924P4J03FAN AXIAL 92X25MM 24VDC WIRE |
848 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 4.8 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
MS8038H24B1+6-FHR-2EMFAN AXIAL 80X38MM 24VDC WIRE |
180 | - |
|
数据表 |
MS8038-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 0.391 lb (177.35 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 77.0dB(A) | - | - | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
08020SA-24L-AT-00FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 34.0dB | 1.68 W | - | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-24J-AT-00FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 27.0dB | 1.2 W | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-12J-ET-00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
08020SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 27.0dB | 600 mW | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-24K-ET-00FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 31.0dB | 1.4 W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
109R0824M402FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 23.0dB(A) | 1.2 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
F6025H12B1-FHR-CCFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 4200 RPM | - | 3 Wire Leads | - |
|
|
F6025H12B1-RHR-CCFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 4200 RPM | - | 3 Wire Leads | - |
|
|
F6025H12B2-RSR-CCFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Sensor | 25.00mm | 31.0dB(A) | - | CE, cUL, TUV, UL | 3800 RPM | - | 3 Wire Leads | - |
|
F6025X24B-FHR-CC-GBFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 2 Wire Leads | - |
|
ODB6015-12HHB01AFAN BLOWER 57.25X15.2MM 12VDC |
0 | - |
|
数据表 |
ODB6015 | Box | Active | 12VDC | Rectangular/Rounded - 57.25mm L x 50.37mm H | 7.5 CFM (0.210m³/min) | 0.800 in H2O (199.3 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 15.20mm | 44.0dB | 3.84 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602524L2B-2T2FAN 60X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
