直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
08020SA-12L-EL-00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 34.0dB(A) | 1.08 W | - | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-24K-EL-00FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 31.0dB(A) | 1.44 W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-12J-EL-00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 27.0dB(A) | 600 mW | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-24K-AT-00FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 31.0dB | 1.44 W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-24M-AT-00FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 39.9 CFM (1.12m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 37.5dB | 2.16 W | - | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0612P4S0011FAN AXIAL 60X25MM 12VDC WIRE |
2,067 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.04 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

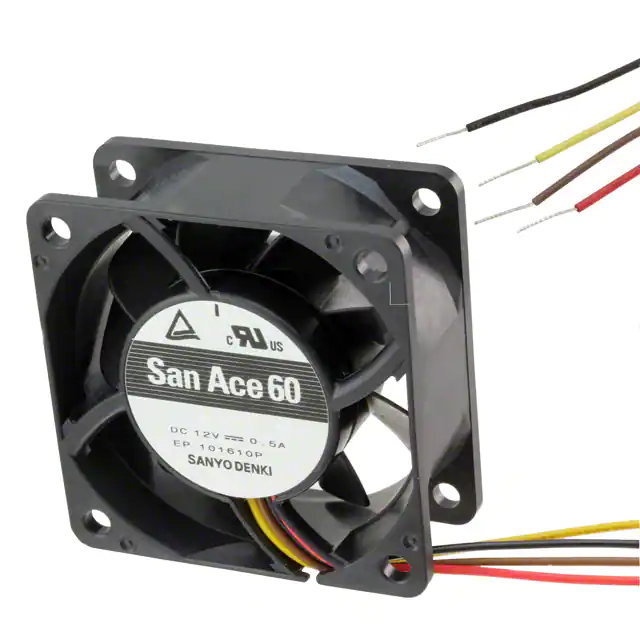

9G0612P4H0011FAN AXIAL 60X25MM 12VDC WIRE |
727 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 6 W | cURus, TUV | 9500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

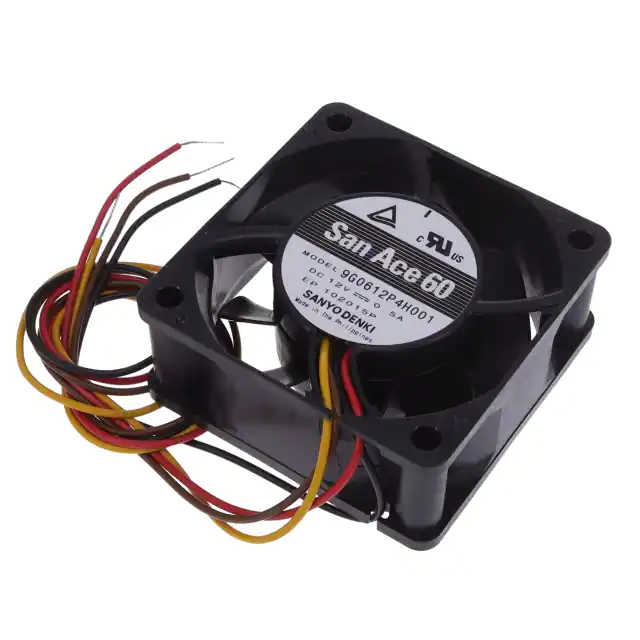

9G0612P4H001FAN AXIAL 60X25MM 12VDC WIRE |
556 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 6 W | cURus, TUV | 9500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
MS1238E12B1+6-FHRFAN AXIAL 120X38MM 12VDC WIRE |
623 | - |
|
数据表 |
MS1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 271.1 CFM (7.59m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 68.0dB(A) | - | - | 5000 RPM | - | 4 Wire Leads | - |
|
MS1238H24B1+6-FHRFAN AXIAL 120X38MM 24VDC WIRE |
187 | - |
|
数据表 |
MS1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 203.3 CFM (5.69m³/min) | 0.590 in H2O (147.0 Pa) | Ball | 0.667 lb (302.55 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | - | - | 4000 RPM | - | 4 Wire Leads | - |
|

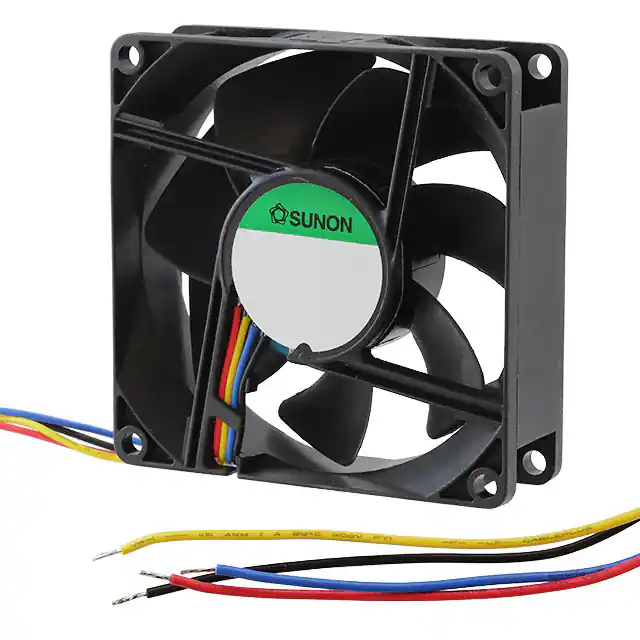

GF80321B1-000U-SC9FAN AXIAL 80X32MM 12VDC WIRE |
166 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 0.24 lb (108.86 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.00mm | 45.2dB(A) | 3.72 W | CE, CUR, TUV, UL | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
9G0924G101FAN AXIAL 92X38MM 24VDC WIRE |
241 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 13.2 W | CSA, TUV, UL | 5000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
AFB1212HHE-TP02FAN AXIAL 120X38MM 12VDC WIRE |
2,838 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 44.0dB(A) | 4.8 W | CE, CSA, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
GE92252B1-000U-AE9FAN AXIAL 92X25MM 24VDC WIRE |
1,531 | - |
|
数据表 |
GE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.249 lb (112.94 g) | Tubeaxial | Auto Restart | 25.00mm | 47.0dB(A) | 5.28 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
FFB0448EN-00EEYFAN AXIAL 40X28MM 48VDC WIRE |
269 | - |
|
数据表 |
FFB | Box | Not For New Designs | 48VDC | Square - 40mm L x 40mm H | 35.4 CFM (0.992m³/min) | 4.880 in H2O (1215.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 66.5dB(A) | 20.64 W | CE, cURus, TUV | 26500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
255NFAN AXIAL 25X8MM 5VDC WIRE |
821 | - |
|
数据表 |
250 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | - | Sintec | 0.011 lb (4.99 g) | Tubeaxial | - | 8.00mm | 16.0dB(A) | 400 mW | CE, CSA, UL, VDE | 9600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
252NFAN AXIAL 25X8MM 12VDC WIRE |
165 | - |
|
数据表 |
250 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | - | Sintec | 0.011 lb (4.99 g) | Tubeaxial | - | 8.00mm | 15.0dB(A) | 500 mW | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
.GN.jpg)
|
PMB1297PYB1-AY.(2).GNFAN BLOWER 97.2X33MM 12VDC WIRE |
853 | - |
|
数据表 |
PMB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 30.5 CFM (0.854m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 0.408 lb (185.07 g) | Blower | Auto Restart | 33.00mm | 55.8dB(A) | 8.6 W | CE, CUR, TUV, UL | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9HV0612P1J0011FAN AXIAL 60X38MM 12VDC WIRE |
1,053 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 66.4 CFM (1.86m³/min) | 7.000 in H2O (1743.6 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 68.0dB(A) | 32.4 W | CSA, TUV, UL | 21700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9G0824G101FAN AXIAL 80X38MM 24VDC WIRE |
1,201 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 13.4 W | CSA, TUV, UL | 6300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
