直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

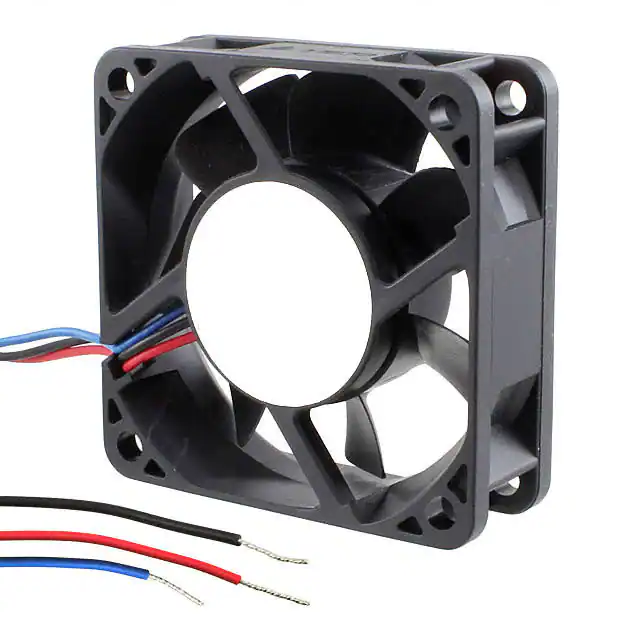

AFB0612VHD-AF00FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 29.1 CFM (0.815m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 0.124 lb (56.25 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 41.0dB(A) | 2.28 W | CE, CSA, UL, VDE | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
06023GA-12N-AL-00DC AXIAL FAN |
0 | - |
|
数据表 |
06023GA | Box | Active | 12VDC | Square/Rounded - 60.6mm L x 59.9mm H | 8.5 CFM (0.240m³/min) | 0.923 in H2O (230.0 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 23.00mm | 41.0dB | 3.12 W | - | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
06023GA-24N-AL-00DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
06023GA-12M-AT-00DC AXIAL FAN |
0 | - |
|
数据表 |
06023GA | Box | Active | 12VDC | Square/Rounded - 60.6mm L x 59.9mm H | 7.8 CFM (0.218m³/min) | 0.803 in H2O (200.0 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 23.00mm | 37.0dB | 2.76 W | - | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8025BG-160-484FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 62.1 CFM (1.74m³/min) | 0.610 in H2O (151.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 48.4dB(A) | 6.72 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0702548H2B-2T2FAN 70X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 37.0dB(A) | 6.24 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802548J2B-3T3FAN 80X25MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 7.2 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
AFB0412VHB-TP29FAN AXIAL 40X15MM 12VDC WIRE |
1,767 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 13.0 CFM (0.364m³/min) | 0.459 in H2O (114.3 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 36.5dB(A) | 2.16 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

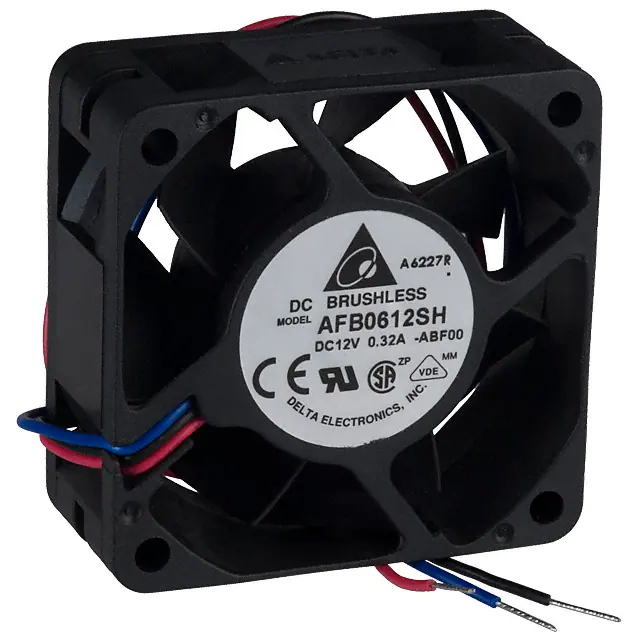

AFB0612SH-ABF00FAN AXIAL 60X25.4MM 12VDC WIRE |
8,760 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 34.2 CFM (0.958m³/min) | 0.422 in H2O (105.1 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 44.5dB(A) | 3.24 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

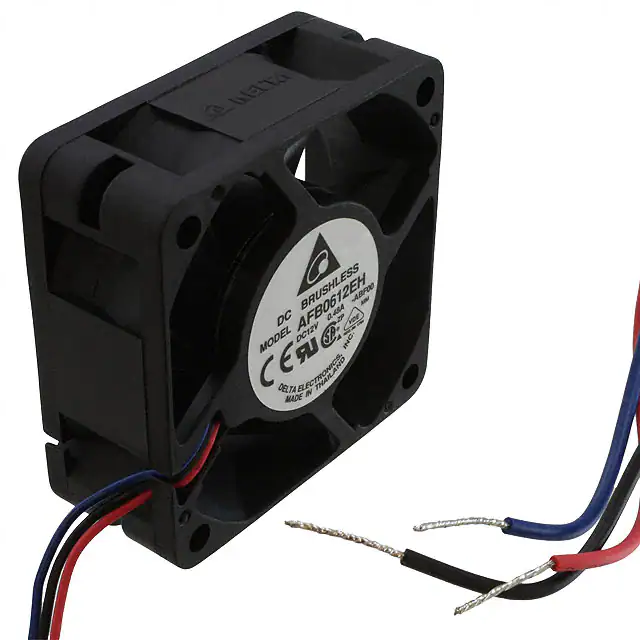

AFB0612EH-ABF00FAN AXIAL 60X25.4MM 12VDC WIRE |
1,178 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 46.5dB(A) | 4.56 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0624EH-ABR00FAN AXIAL 60X25.4MM 24VDC WIRE |
282 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 46.5dB(A) | 5.76 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9GA0412P3K01FAN AXIAL 40X28MM 12VDC WIRE |
979 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 61.0dB(A) | 11.04 W | CSA, TUV, UL | 22000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

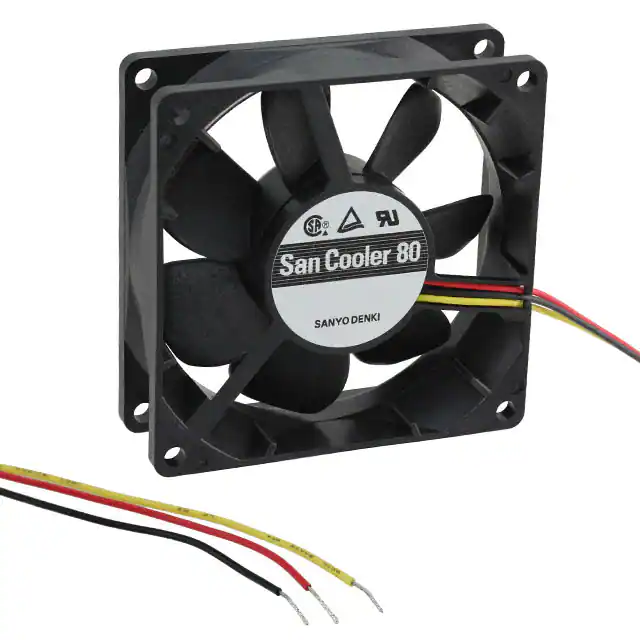

9A0812G401FAN AXIAL 80X25MM 12VDC WIRE |
1,550 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 4.56 W | CSA, TUV, UL | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|

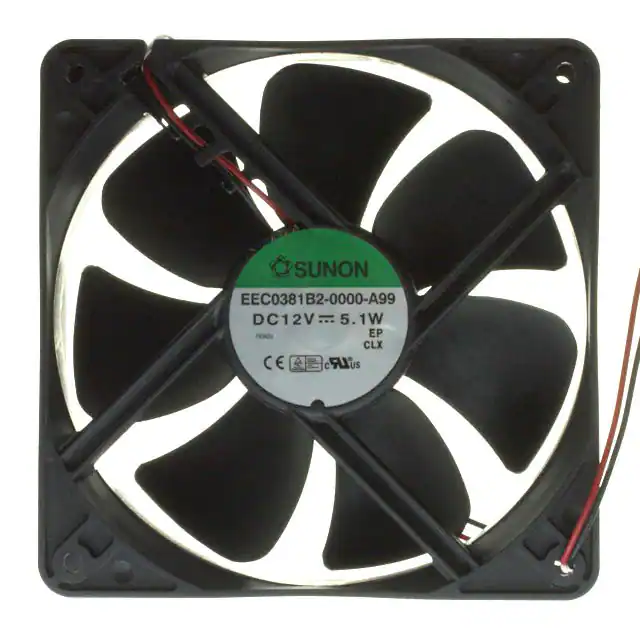

EEC0381B2-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
2,444 | - |
|
数据表 |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.472 lb (214.1 g) | Tubeaxial | Auto Restart | 38.00mm | 44.0dB(A) | 5.1 W | CE, CUR, TUV, UL | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0405MA-AFGEFAN AXIAL 40X10MM 5VDC RECT CONN |
1,177 | - |
|
数据表 |
AFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.7 CFM (0.160m³/min) | 0.104 in H2O (26.0 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 21.5dB(A) | 250 mW | CE, cURus, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
9GA0424P6H001FAN AXIAL 40X20MM 24VDC WIRE |
2,298 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.770 in H2O (191.8 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 40.0dB(A) | 1.92 W | CSA, TUV, UL | 12400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

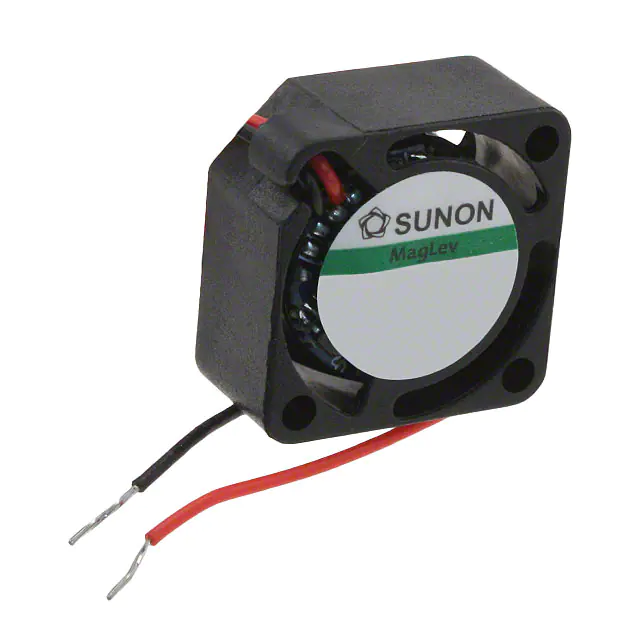

GM0517PDV2-8.GNFAN AXIAL 17X8MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 17mm L x 17mm H | 0.706 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.009 lb (4.08 g) | Tubeaxial | - | 8.00mm | 16.0dB(A) | 600 mW | CE, CUR, TUV, UL | 15000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0301005H2B-2T2FAN 30X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 29.0dB(A) | 350 mW | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
9GA0412P6G001FAN AXIAL 40X20MM 12VDC WIRE |
1,375 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 1.280 in H2O (318.0 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 47.0dB(A) | 2.76 W | CSA, TUV, UL | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0301005L2B-2T2FAN 30X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 17.0dB(A) | 150 mW | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
