直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

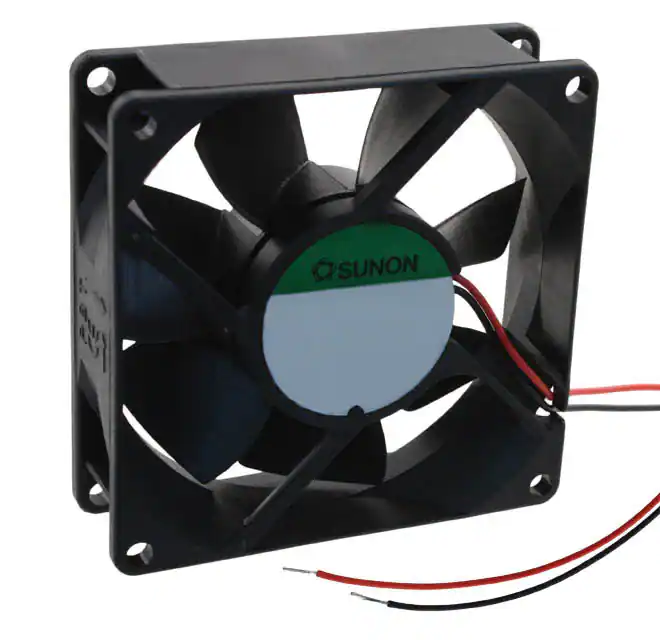

PMD4808PTB1-A.(2).GNFAN AXIAL 80X25MM 48VDC WIRE |
0 | - |
|
数据表 |
PMD | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 0.22 lb (99.79 g) | Tubeaxial | - | 25.00mm | 47.0dB(A) | 6.2 W | CE, CUR, TUV, UL | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

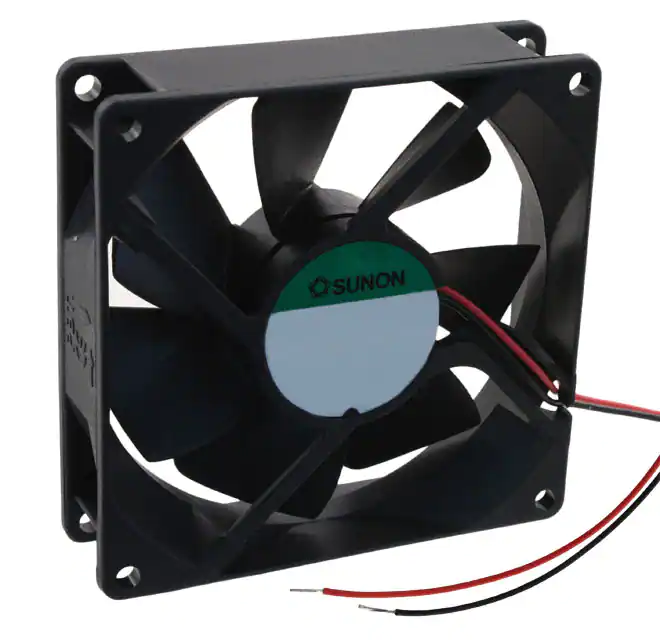

PMD4809PTB1-A.(2).GNFAN AXIAL 92X25MM 48VDC WIRE |
0 | - |
|
数据表 |
PMD | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 77.0 CFM (2.16m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | - | 25.00mm | 48.0dB(A) | 6.7 W | CE, CUR, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
(9238S).jpg)
|
CFM-9225B-230-356-22FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 35.6dB(A) | 3.6 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-9225B-220-269-22FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 33.4 CFM (0.935m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 26.9dB(A) | 1.2 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-9225B-225-317-22FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 31.7dB(A) | 1.92 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
(9232B)(9238B).jpg)
|
CFM-9225B-130-356-22FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 35.6dB(A) | 3.6 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0922512H2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 38.0dB(A) | 2.4 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922512J2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 25.0dB(A) | 1.08 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922512L2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.32 W | CE, cURus, TUV | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
MR3010E12B1+6-RSRFAN AXIAL 30X10MM 12VDC WIRE |
329 | - |
|
数据表 |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 7.7 CFM (0.216m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 34.0dB(A) | - | CE, cUL, TUV, UL | 11500 RPM | - | 4 Wire Leads | - |
|
9BD12SC6-1FAN BLOWER 76X20MM 12VDC WIRE |
488 | - |
|
数据表 |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 10.2 CFM (0.286m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 0.128 lb (58.06 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 43.0dB(A) | 3.36 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
AFC0612DB-F00FAN AXIAL 60X15MM 12VDC WIRE |
3,947 | - |
|
数据表 |
AFC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 29.2 CFM (0.818m³/min) | 0.517 in H2O (128.8 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 47.5dB(A) | 3.96 W | CE, TUV, UL | 7200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
BFB0512HH-F00FAN BLOWER 51.3X15MM 12VDC WIRE |
653 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square/Rounded - 51.3mm L x 51mm H | 4.6 CFM (0.129m³/min) | 0.866 in H2O (215.7 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 45.0dB(A) | 2.52 W | CE, CSA, UL, VDE | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

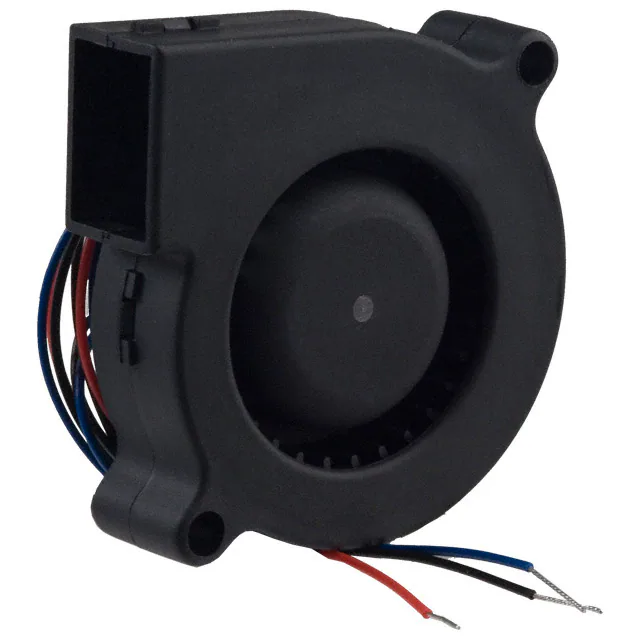

BFB0524H-R00FAN BLOWER 51.3X15MM 24VDC WIRE |
113 | - |
|
数据表 |
BFB | Box | Active | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 3.9 CFM (0.109m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Sensor | 15.00mm | 38.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
06025DA-12R-AU-02FAN AXIAL 60X25MM 12VDC WIRE |
563 | - |
|
数据表 |
06025DA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 45.6 CFM (1.28m³/min) | 1.170 in H2O (291.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 52.0dB | 8.04 W | CE, cULus, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
414FAN AXIAL 40X20MM 24VDC WIRE |
540 | - |
|
数据表 |
400 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sintec | 0.059 lb (26.76 g) | Tubeaxial | - | 20.00mm | 18.0dB(A) | 1 W | CSA, UL, VDE | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

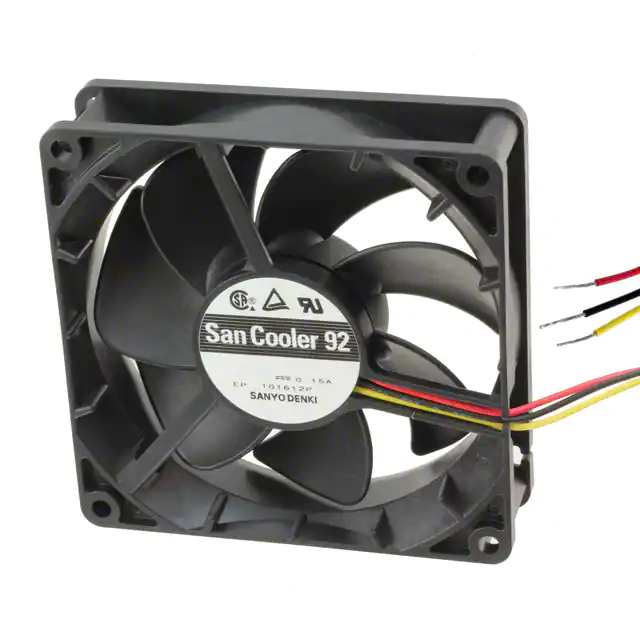

9A0912S401FAN AXIAL 92X25MM 12VDC WIRE |
744 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 3.24 W | CSA, TUV, UL | 3550 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
9GX3612P3K001FAN AXIAL 36X28MM 12VDC WIRE |
565 | - |
|
数据表 |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 24.4 CFM (0.683m³/min) | 3.365 in H2O (838.2 Pa) | Ball | 0.102 lb (46.27 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 66.0dB(A) | 15.6 W | CSA, TUV, UL | 24000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
|
DC0922512M2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 1.68 W | CE, cURus, TUV | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
AFB0612EHD-AF00FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 35.2 CFM (0.986m³/min) | 0.484 in H2O (120.6 Pa) | Ball | 0.124 lb (56.25 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 45.0dB(A) | 3.72 W | CE, CSA, UL, VDE | 6600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
