直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0424P6F001FAN AXIAL 40X20MM 24VDC WIRE |
484 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 7.4 CFM (0.207m³/min) | 0.319 in H2O (79.5 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 28.0dB(A) | 960 mW | CSA, TUV, UL | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
DC0301005M2B-2T2FAN 30X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 24.0dB(A) | 250 mW | CE, cURus | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
9GA0812P4H001FAN AXIAL 80X25MM 12VDC WIRE |
1,272 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 51.5 CFM (1.44m³/min) | 0.352 in H2O (87.7 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.64 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

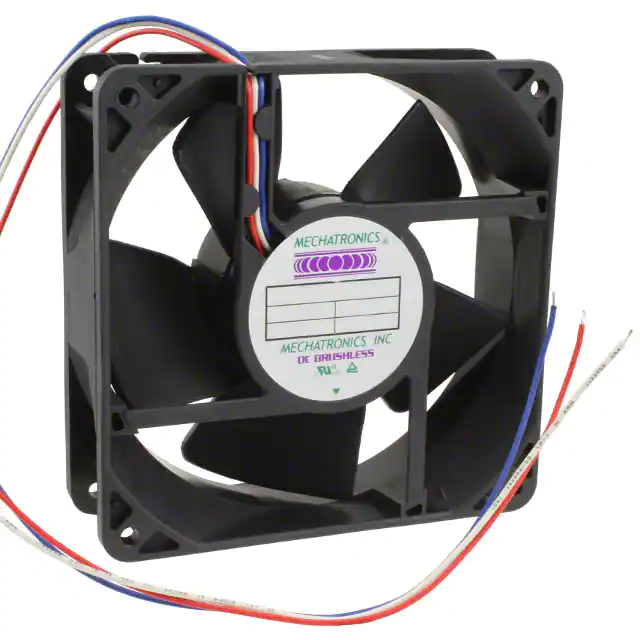

G1238E24B1-FSR-WSFAN AXIAL 119X38MM 24VDC WIRE |
853 | - |
|
数据表 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 49.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
EEC0252B3-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
2,526 | - |
|
数据表 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart | 25.00mm | 34.0dB(A) | 2 W | CE, CUR, TUV, UL | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EEC0252B2-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
1,090 | - |
|
数据表 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart | 25.00mm | 40.5dB(A) | 3.5 W | CE, CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0812HHD-AF00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 55.9 CFM (1.57m³/min) | 0.311 in H2O (77.5 Pa) | Ball | 0.161 lb (73.03 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 44.0dB(A) | 3.84 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0812MD-AF00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.182 in H2O (45.3 Pa) | Ball | 0.161 lb (73.03 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0712LB-F00FAN AXIAL 70X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 23.4 CFM (0.655m³/min) | 0.089 in H2O (22.2 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 26.5dB(A) | 960 mW | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MF40060V1-1000U-Q995VDC FAN 40X6MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 6.00mm | 29.3dB(A) | 0.44 W | CCC, CE, cURus, TUV, UKCA | 7000 RPM | - | 4 Wire Leads | - |
|
OD6025-12HBIP69KFAN AXIAL 60X25MM 12VDC WIRE |
253 | - |
|
数据表 |
OD6025-IP69K | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 1.8 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
OD1225-12HSFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 42.0dB(A) | 5.4 W | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1225-12LSFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 25.0dB(A) | 2.5 W | cURus, TUV | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1225-12MSFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 35.0dB(A) | 4 W | cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD6025-24HBIP69KFAN AXIAL 60X25MM 24VDC WIRE |
253 | - |
|
数据表 |
OD6025-IP69K | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 2.8 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
OD1225-24HSFAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 42.0dB(A) | 7.7 W | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1225-24LSFAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 25.0dB(A) | 2.4 W | cURus, TUV | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

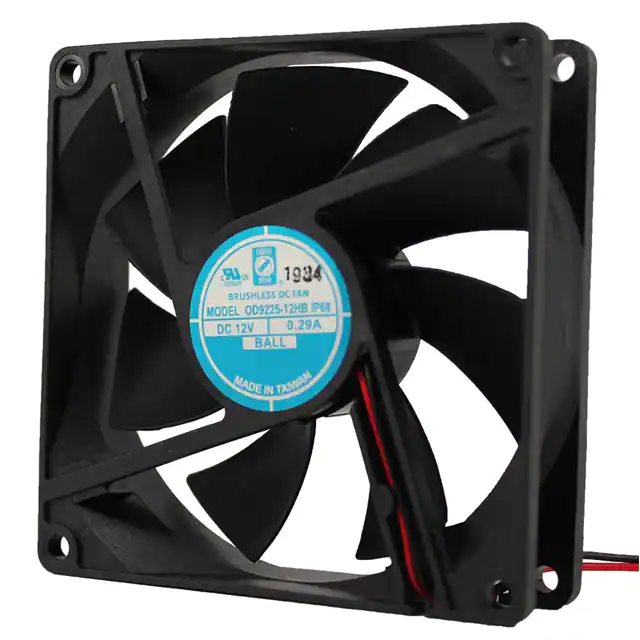

OD9225-12HBIP68FAN AXIAL 92X25MM 12VDC WIRE |
242 | - |
|
数据表 |
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.211 lb (95.71 g) | Tubeaxial | Auto Restart | 25.00mm | 35.0dB | 3 W | cURus, TUV | 2900 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OD1225-24MSFAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 35.0dB(A) | 4.1 W | cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

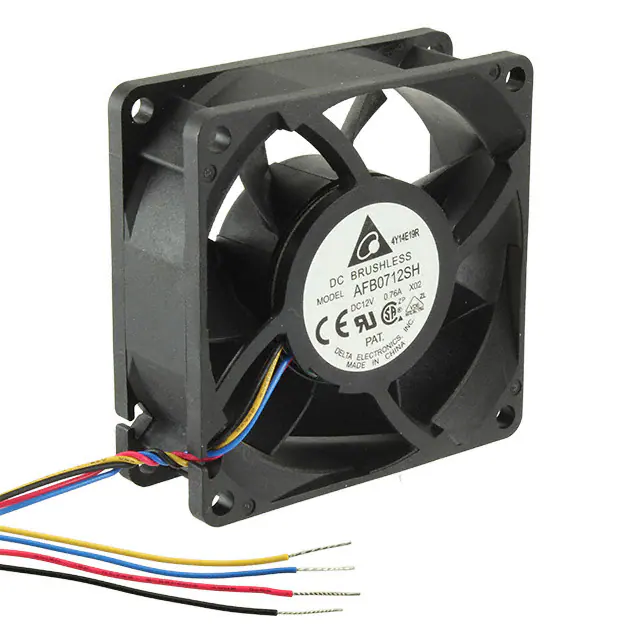

AFB0712SHX02FAN AXIAL 70X25.4MM 12VDC WIRE |
1,742 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 61.1 CFM (1.71m³/min) | 0.625 in H2O (155.7 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 50.5dB(A) | 7.8 W | CE, CSA, UL, VDE | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
