直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0312P3G001FAN AXIAL 38X28MM 12VDC WIRE |
1,965 | - |
|
数据表 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 15.9 CFM (0.445m³/min) | 1.850 in H2O (460.8 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 53.0dB(A) | 4 W | CSA, TUV, UL | 19000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
BFB0512VHD-F00FAN BLOWER 52.1X20MM 12VDC WIRE |
8,678 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 52.1mm L x 53.3mm H | 6.8 CFM (0.190m³/min) | 0.732 in H2O (182.3 Pa) | Ball | 0.057 lb (25.85 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 32.0dB(A) | 2.76 W | CE, CSA, UL, VDE | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

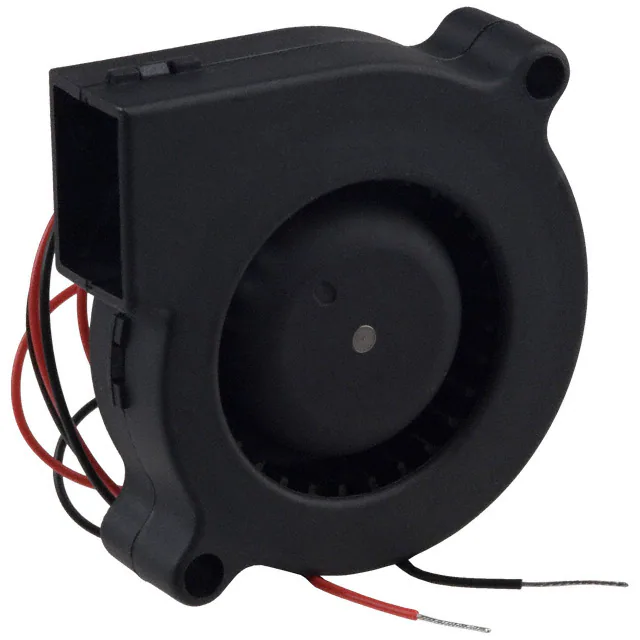

BFB0524HHFAN BLOWER 51.3X15MM 24VDC WIRE |
2,536 | - |
|
数据表 |
BFB | Tray | Active | 24VDC | Square/Rounded - 51.3mm L x 51mm H | 4.6 CFM (0.129m³/min) | 0.866 in H2O (215.7 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Protection | 15.00mm | 45.0dB(A) | 2.64 W | CE, CSA, UL, VDE | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EEC0251B2-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
2,756 | - |
|
数据表 |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart | 25.00mm | 40.5dB(A) | 3.4 W | CE, CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EEC0251B1-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
2,519 | - |
|
数据表 |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 5.4 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
PMD2408PMB2-A(2).GNFAN AXIAL 80X38MM 24VDC WIRE |
3,166 | - |
|
数据表 |
PMD | Box | Active | 24VDC | Square - 80mm L x 80mm H | 74.5 CFM (2.09m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 0.386 lb (175.09 g) | Tubeaxial | Auto Restart | 38.00mm | 51.6dB(A) | 7.2 W | CE, CUR, TUV, UL | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

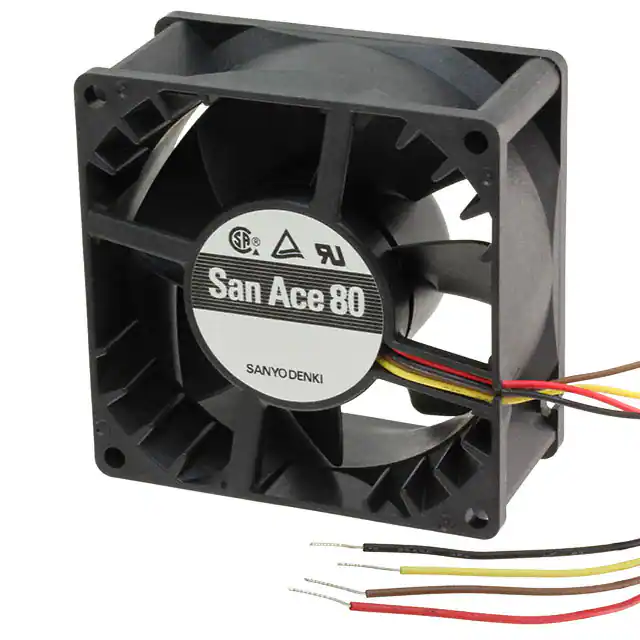

9GA0824P4H001FAN AXIAL 80X25MM 24VDC WIRE |
4,179 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 51.5 CFM (1.44m³/min) | 0.352 in H2O (87.7 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.4 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
FFB03612EHNYCLFAN AXIAL 36X28MM 12VDC WIRE |
3,207 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 36mm L x 36mm H | 21.0 CFM (0.588m³/min) | 1.700 in H2O (423.5 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 58.0dB(A) | 7.56 W | CE, cURus, VDE | 19000 RPM | 14 ~ 176°F (-10 ~ 80°C) | 4 Wire Leads | - |
|
AFB0624EH-AF00FAN AXIAL 60X25.4MM 24VDC WIRE |
1,433 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 46.5dB(A) | 5.76 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9GA0412P3J01FAN AXIAL 40X28MM 12VDC WIRE |
847 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.664m³/min) | 2.150 in H2O (535.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 54.0dB(A) | 5.88 W | CSA, TUV, UL | 18000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GA0412P3G01FAN AXIAL 40X28MM 12VDC WIRE |
606 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 21.5 CFM (0.602m³/min) | 1.810 in H2O (450.8 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 53.0dB(A) | 4.68 W | CSA, TUV, UL | 16500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0412P3M01FAN AXIAL 40X28MM 12VDC WIRE |
495 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 16.2 CFM (0.454m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 47.0dB(A) | 2.52 W | CSA, TUV, UL | 12500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
MEC0382V1-000U-A99FAN AXIAL 120X38MM 24VDC WIRE |
1,731 | - |
|
数据表 |
MagLev® MEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | Vapo-Bearing™ | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 48.0dB(A) | 9.2 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
414FHFAN AXIAL 40X10MM 24VDC WIRE |
736 | - |
|
数据表 |
400F | Box | Active | 24VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | - | Sintec | 0.038 lb (17.24 g) | Tubeaxial | - | 10.00mm | 26.0dB(A) | 900 mW | CSA, UL, VDE | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
405FFAN AXIAL 40X10MM 5VDC WIRE |
191 | - |
|
数据表 |
400F | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | - | Sintec | 0.038 lb (17.24 g) | Tubeaxial | - | 10.00mm | 22.1dB(A) | 700 mW | CSA, UL, VDE | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
AFB0612DH-TZUTFAN AXIAL 60X25.4MM 12VDC WIRE |
6,012 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 50.4 CFM (1.41m³/min) | 0.926 in H2O (230.7 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 55.0dB(A) | 10.08 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
MR3010H12B1+6-RSRFAN AXIAL 30X10MM 12VDC WIRE |
658 | - |
|
数据表 |
MA3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 31.6dB(A) | - | - | 10000 RPM | - | 4 Wire Leads | - |
B.jpg)
|
CFM-A225B-125-398-22FAN AXIAL 120X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 42.7dB(A) | 4.92 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-A225B-020-350-22FAN AXIAL 120X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 37.8dB(A) | 2.85 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
04028DA-12P-ALF-0DC AXIAL FAN |
0 | - |
|
数据表 |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 13.2 CFM (0.370m³/min) | 0.923 in H2O (230.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.00mm | 45.0dB | 2.16 W | - | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
