直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11938KA-24L-EA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
1,626 | - |
|
数据表 |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 108.4 CFM (3.03m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.40mm | 42.5dB | 7.4 W | - | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
11938KA-24M-EA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
1,041 | - |
|
数据表 |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 113.0 CFM (3.16m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.40mm | 46.5dB | 8.4 W | - | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EEC0252B1-000U-G99FAN AXIAL 120X25MM 24VDC WIRE |
2,636 | - |
|
数据表 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 44.5dB(A) | 5 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
ASB01703HA3-00CAHFAN BLOWER 17X3MM 3VDC RECT CONN |
914 | - |
|
数据表 |
ASB - Miniature | Box | Active | 3VDC | Square - 17mm L x 17mm H | 0.510 CFM (0.014m³/min) | 0.071 in H2O (17.6 Pa) | Sleeve | 0.004 lb (1.81 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 3.00mm | 30.0dB(A) | 180 mW | - | 12000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|
KDB0305HA3-00FAN BLOWER 30X3.5MM 5VDC RECT |
2,603 | - |
|
数据表 |
KDB - Miniature | Box | Active | 5VDC | Square - 30mm L x 30mm H | 0.950 CFM (0.027m³/min) | 0.946 in H2O (235.6 Pa) | Hydrodynamic | 0.012 lb (5.44 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 3.50mm | 42.0dB(A) | 1.75 W | cULus, TUV | 12500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant |
|
412F/2H-038FAN AXL 40X10MM 12VDC RECT CONN |
126 | - |
|
数据表 |
400F | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sleeve | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 26.0dB(A) | 800 mW | CE, CSA, UL, VDE | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Position Rectangular Connector | - |
|
9A0924S4021FAN AXIAL 92X25MM 24VDC WIRE |
584 | - |
|
数据表 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 39.0dB(A) | 3.6 W | CSA, TUV, UL | 3550 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

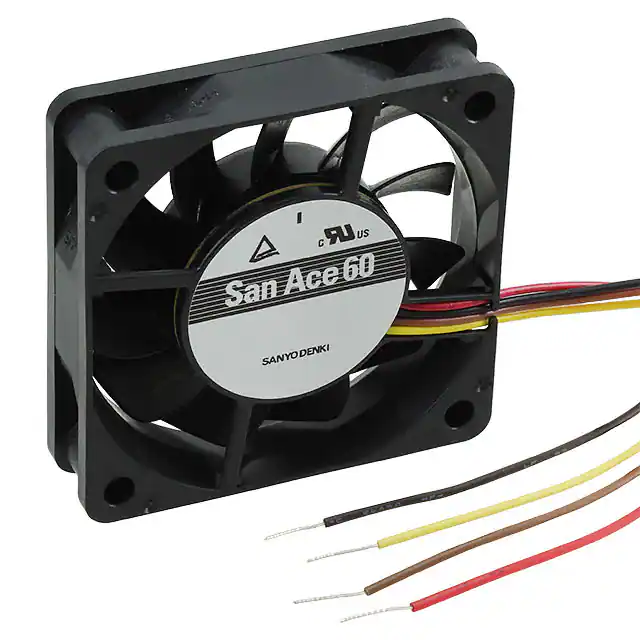

9GA0612P6S001FAN AXIAL 60X20MM 12VDC WIRE |
408 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | 0.326 in H2O (81.2 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 1.8 W | CSA, TUV, UL | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
FFB0812EHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
800 | - |
|
数据表 |
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 52.5dB(A) | 10.8 W | CE, CSA, UL, VDE | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
F6025X12B1+6-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
102 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 4 Wire Leads | IP57 - Dust Protected, Waterproof |
|
FFB0412SHNFAN AXIAL 40X28MM 12VDC WIRE |
14,094 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.0 CFM (0.672m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 54.5dB(A) | 6 W | CE, CSA, UL, VDE | 13000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
9GA0424P3G001FAN AXIAL 40X28MM 24VDC WIRE |
1,978 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 21.5 CFM (0.602m³/min) | 1.810 in H2O (450.8 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 53.0dB(A) | 5.28 W | CSA, TUV, UL | 16500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0424P3J001FAN AXIAL 40X28MM 24VDC WIRE |
1,897 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.664m³/min) | 2.150 in H2O (535.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 54.0dB(A) | 6.48 W | CSA, TUV, UL | 18000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GA0424P3H001FAN AXIAL 40X28MM 24VDC WIRE |
393 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 19.1 CFM (0.535m³/min) | 1.393 in H2O (347.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 50.0dB(A) | 3.84 W | CSA, TUV, UL | 14500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0612P9G001FAN AXIAL 60X10MM 12VDC WIRE |
282 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.9 CFM (0.613m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.078 lb (35.38 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 43.0dB(A) | 3.24 W | CSA, TUV, UL | 6200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|

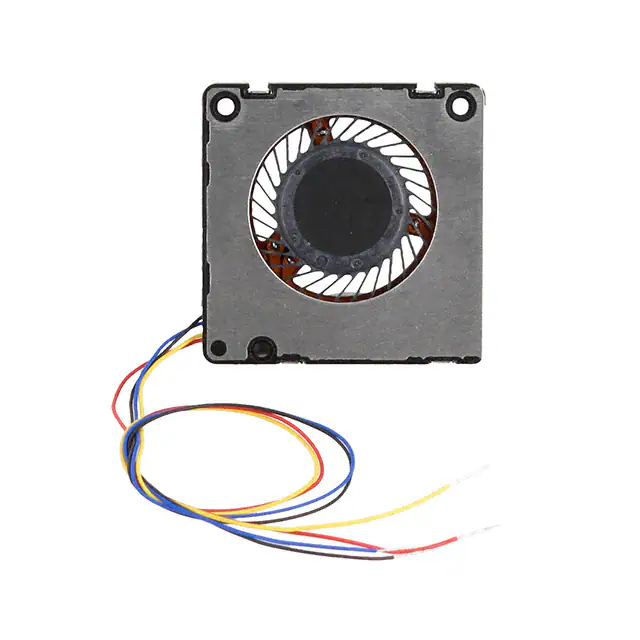

DB0300305H1A-BT0FAN BLOWER 30X3.2MM 5VDC WIRE |
1,253 | - |
|
数据表 |
Slim-Line | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 0.696 CFM (0.019m³/min) | 0.329 in H2O (82.0 Pa) | Ball | 0.001 lb (0.45 g) | Blower | PWM Control, Speed Sensor (Tach) | 3.20mm | 34.1dB(A) | 500 mW | - | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
BFB0512MA-CF00FAN BLOWER 50X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 2.9 CFM (0.081m³/min) | 0.383 in H2O (95.4 Pa) | Ball | 0.05 lb (22.68 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.30mm | 28.0dB(A) | 840 mW | CE, CSA, UL, VDE | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-6025BG-1100-535DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 42.9 CFM (1.22m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 53.5dB(A) | 10.56 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0702548U2B-3T3FAN 70X25MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 12.96 W | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0702548H2B-3T3FAN 70X25MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 6.24 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
