直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-A225V-122-340FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 34.0dB(A) | 1.94 W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-A225V-127-405FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 40.5dB(A) | 3.46 W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF40060V1-1000U-F995VDC FAN 40X6MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 6.00mm | 29.3dB(A) | 0.44 W | CCC, CE, cURus, TUV, UKCA | 7000 RPM | - | 3 Wire Leads | - |
|
|
MF40060V1-1000U-S995VDC FAN 40X6MM TACH/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 6.00mm | 29.3dB(A) | 0.44 W | CCC, CE, cURus, TUV, UKCA | 7000 RPM | - | 4 Wire Leads | - |
|
OD9225-24LBFAN AXIAL 92.5X25MM 24VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | - | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
04028DA-12N-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04028DA-12P-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 13.1 CFM (0.367m³/min) | 0.920 in H2O (229.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 45.0dB | 2.16 W | - | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04028DA-12L-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 13.4 CFM (0.375m³/min) | 0.387 in H2O (96.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 39.0dB | 1.68 W | - | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04028DA-12M-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
04028DA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 17.0 CFM (0.476m³/min) | 0.587 in H2O (146.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 44.5dB | 3.12 W | - | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0301005H2B-3T0FAN 30X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 29.0dB(A) | 350 mW | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0301005H2B-BT0FAN 30X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 29.0dB(A) | 350 mW | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0301005L2B-BT0FAN 30X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 17.0dB(A) | 150 mW | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0301005M2B-BT0FAN 30X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 24.0dB(A) | 250 mW | CE, cURus | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

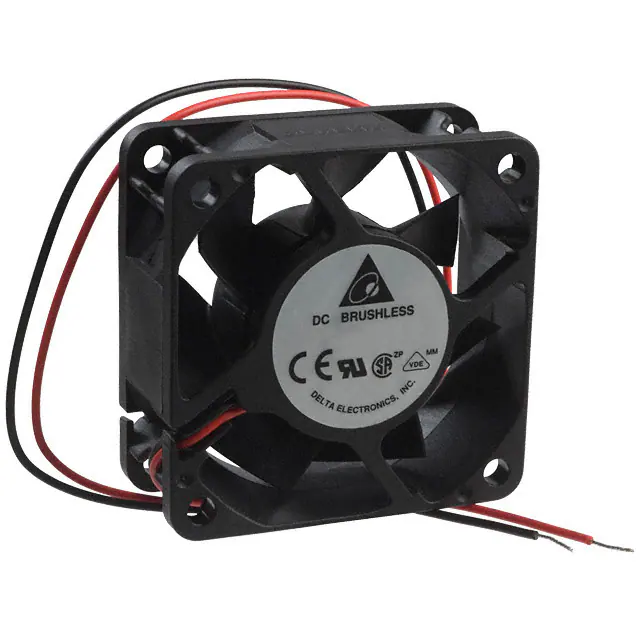

AFB0624HH-AFAN AXIAL 60X25.4MM 24VDC WIRE |
1,045 | - |
|
数据表 |
AFB | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.294 in H2O (73.2 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 40.0dB(A) | 2.64 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109BC12GC7-1FAN BLOWER 51X15MM 12VDC WIRE |
1,722 | - |
|
数据表 |
San Ace B52 | Box | Active | 12VDC | Square/Rounded - 51mm L x 52.6mm H | 4.4 CFM (0.123m³/min) | 0.860 in H2O (214.2 Pa) | Ball | 0.073 lb (33.11 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 43.0dB(A) | 1.44 W | CSA, TUV, UL | 6200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
MR9225X24B1+6-FSRFAN AXIAL 92X25MM 24VDC WIRE |
828 | - |
|
数据表 |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 107.0 CFM (3.00m³/min) | 0.580 in H2O (144.5 Pa) | Ball | 0.264 lb (119.75 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | - | CE, cUL, TUV, UL | 4800 RPM | - | 4 Wire Leads | - |
|

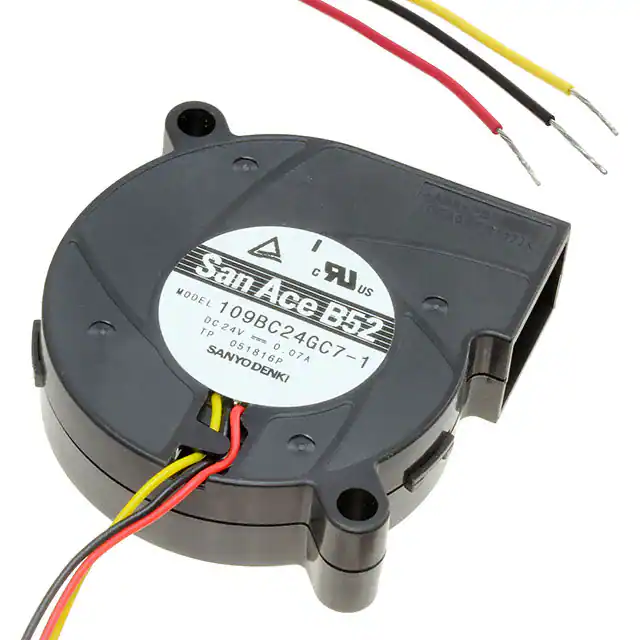

109BC24GC7-1FAN BLOWER 51X15MM 24VDC WIRE |
807 | - |
|
数据表 |
San Ace B52 | Box | Active | 24VDC | Square/Rounded - 51mm L x 52.6mm H | 4.4 CFM (0.123m³/min) | 0.860 in H2O (214.2 Pa) | Ball | 0.073 lb (33.11 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 43.0dB(A) | 1.68 W | CSA, TUV, UL | 6200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

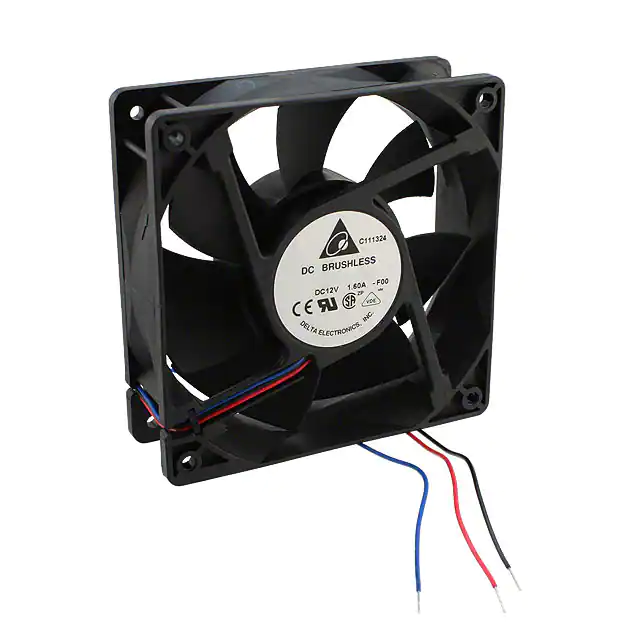

AFB1212SHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
4,245 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 0.564 lb (255.83 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 12.6 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

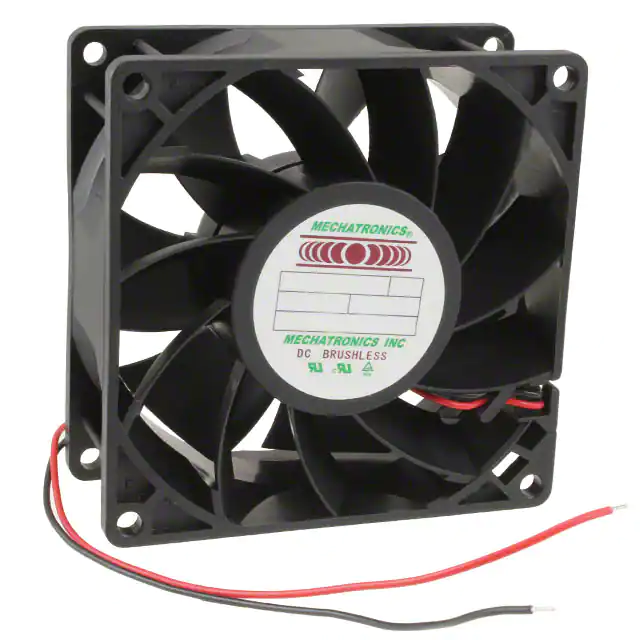

MD9238X24B-FSRFAN AXIAL 92X38MM 24VDC WIRE |
199 | - |
|
数据表 |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 58.4dB(A) | - | CE, TUV, UL | 5400 RPM | - | 2 Wire Leads | - |
|
AFB0812SH-TP12FAN AXIAL 80X25.4MM 12VDC WIRE |
2,831 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 46.0dB(A) | 3.6 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
