直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD3510-03HB02AFAN AXIAL 35X10MM BALL 3VDC WIRE |
0 | - |
|
数据表 |
OD3510 | Bulk | Active | 3VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
DC0922512V2B-3T0FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 4.92 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0802524I2B-BT4FAN 80X25MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 37.0dB(A) | 3.12 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0802524L2B-BT4FAN 80X25MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 42.0dB(A) | 4.8 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0922524V2B-2T0FAN 92X25MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 49.0dB(A) | 9.84 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0802524M2B-BT4FAN 80X25MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 44.0dB(A) | 6 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
G6015M12B-RHR-CCFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Conformal Coating | 15.00mm | 30.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
AF40200VX-1000U-GL95VDC FAN 40X20MM ALARM IP52 |
0 | - |
|
数据表 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | - | 20.00mm | 30.5dB(A) | 0.9 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 2 Wire Leads | IP52 |
|
|
AF40201VX-1000U-GL912VDC FAN 40X20MM ALARM IP52 |
0 | - |
|
数据表 |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | - | 20.00mm | 30.5dB(A) | 0.92 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 2 Wire Leads | IP52 |
|
|
11925SA-24Q-EAD-0FAN AXIAL 119X25MM 24VDC WIRE |
214 | - |
|
数据表 |
11925SA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 113.0 CFM (3.16m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 44.0dB | 4.8 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109P0405H901FAN AXIAL 40X10MM BALL 5VDC WIRE |
1,157 | - |
|
数据表 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.042 lb (19.05 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 800 mW | CSA, TUV, UL | 6200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
109P0412H901FAN AXIAL 40X10MM 12VDC WIRE |
447 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.042 lb (19.05 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 840 mW | CSA, TUV, UL | 6200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
AFB1212VHEFAN AXIAL 120X38MM 12VDC WIRE |
689 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 48.0dB(A) | 7.2 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
405FAN AXIAL 40X20MM 5VDC WIRE |
1,597 | - |
|
数据表 |
400 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sintec | 0.059 lb (26.76 g) | Tubeaxial | - | 20.00mm | 18.0dB(A) | 900 mW | CSA, UL, VDE | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
BFB0512HA-CX3DFAN BLOWER 50X10.3MM 12VDC WIRE |
1,899 | - |
|
数据表 |
BFB | Box | Not For New Designs | 12VDC | Square - 50mm L x 50mm H | 3.5 CFM (0.098m³/min) | 0.563 in H2O (140.2 Pa) | Ball | 0.05 lb (22.68 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.30mm | 32.5dB(A) | 1.44 W | CE, cURus, VDE | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
412FAN AXIAL 40X20MM 12VDC WIRE |
1,809 | - |
|
数据表 |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sintec | 0.059 lb (26.76 g) | Tubeaxial | - | 20.00mm | 18.0dB(A) | 900 mW | CSA, UL, VDE | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
BFB04505HHA-CZMRFAN BLOWER 45X10.3MM 5VDC |
2,222 | - |
|
数据表 |
BFB | Box | Active | 5VDC | Square - 45mm L x 45mm H | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection | 10.30mm | 35.5dB(A) | 1.25 W | CE, cURus, VDE | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
BFB04512HHA-DV52FAN BLOWER 45X10.3MM 12VDC WIRE |
2,074 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square - 45mm L x 45mm H | 3.6 CFM (0.101m³/min) | 0.598 in H2O (149.0 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.30mm | 36.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

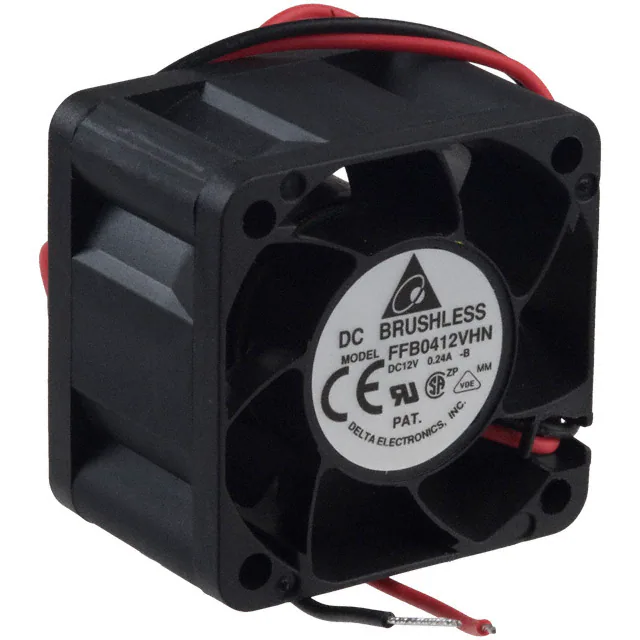

FFB0412VHN-BFAN AXIAL 40X28MM 12VDC WIRE |
289 | - |
|
数据表 |
FFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 45.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EFB0412VHD-SP05FAN AXIAL 40X20MM 12VDC WIRE |
6,664 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 32.5dB(A) | 1.44 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
