直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0602512H2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 3.36 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
CBM-A232B-120-457-22FAN BLOWER 119.3X32MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.00mm | 45.8dB(A) | 4.56 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MEC0381V1-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
2,372 | - |
|
数据表 |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | Vapo-Bearing™ | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 48.0dB(A) | 10 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0351005W2B-3T0FAN 35X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 540 mW | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MEC0381V2-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
306 | - |
|
数据表 |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 44.0dB(A) | 5.1 W | CE, CUR, TUV, UL | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0802024H2B-BT4FAN 80X20MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 5.76 W | CE, cURus | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
MFC0251V1-000U-A99Thermal Products |
696 | - |
|
数据表 |
MF | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 4.2 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0802024U2B-BT4FAN 80X20MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 43.0dB(A) | 7.2 W | CE, cURus | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|

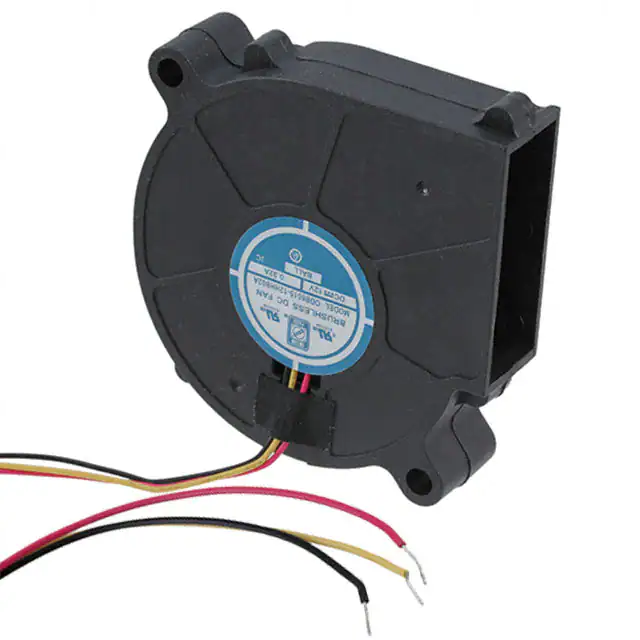

ODB6015-12HHB02AFAN BLOWER 57.25X15.2MM 12VDC |
503 | - |
|
数据表 |
ODB6015 | Bulk | Active | 12VDC | Rectangular/Rounded - 57.25mm L x 50.37mm H | 7.4 CFM (0.207m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 0.077 lb (34.93 g) | Blower | Locked Rotor Sensor | 15.20mm | 44.0dB | 3.84 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0251012M2B-2T2FAN 25X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 24.0dB(A) | 720 mW | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|

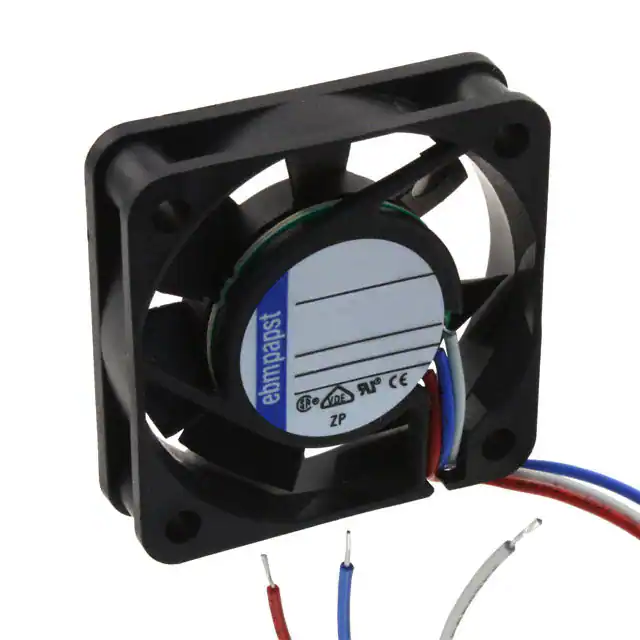

414 F/2FAN AXIAL 40X10MM 24VDC WIRE |
448 | - |
|
数据表 |
400F | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | - | Sintec | 0.038 lb (17.24 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 22.1dB(A) | 800 mW | CSA, UL, VDE | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0251012L2B-2T2FAN 25X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 20.0dB(A) | 600 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
11925SA-24L-EAD-0FAN AXIAL 119X25MM 24VDC WIRE |
1,537 | - |
|
数据表 |
11925SA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 67.1 CFM (1.88m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 30.0dB | 1.44 W | - | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF40060V1-1000U-H995VDC FAN 40X6MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 6.00mm | 29.3dB(A) | 0.44 W | CCC, CE, cURus, TUV, UKCA | 7000 RPM | - | 3 Wire Leads | - |
|
FFB0412VHN-BF00FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 45.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CBM-A232S-120-457-20FAN BLOWER 119.3X32MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-120S | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 32.00mm | 45.8dB(A) | 4.56 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-A232S-220-457-20FAN BLOWER 119.3X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-120S | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 32.00mm | 45.8dB(A) | 4.32 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-A232S-225-481-20FAN BLOWER 119.3X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-120S | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 32.00mm | 48.2dB(A) | 8.64 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MF40060V1-000U-S99FAN AXIAL 40X6.9MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 6.90mm | 29.9dB(A) | 440 mW | CE, CUR, TUV, UL | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
OD3010-03LLB01AFAN AXIAL 30X10.2MM 3VDC WIRE |
0 | - |
|
数据表 |
OD3010 | Bulk | Active | 3VDC | Square - 30mm L x 30mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 10.20mm | - | - | TUV, UR | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
