直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0812MD-AFAN AXIAL 80X20MM 12VDC WIRE |
4,449 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.182 in H2O (45.3 Pa) | Ball | 0.161 lb (73.03 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 36.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-3828BF-1235-614-20FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 22.1 CFM (0.619m³/min) | 3.210 in H2O (800.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 61.4dB(A) | 15.36 W | CE, cURus, TUV | 23500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0251012L2B-BT0FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 20.0dB(A) | 600 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0251012M2B-BT0FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 24.0dB(A) | 720 mW | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0251005M2B-3T0FAN 25X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 24.0dB(A) | 300 mW | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0251005L2B-3T0FAN 25X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 20.0dB(A) | 250 mW | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0724LB-F00FAN AXIAL 70X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 24VDC | Square - 70mm L x 70mm H | 23.4 CFM (0.655m³/min) | 0.089 in H2O (22.2 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 26.5dB(A) | 1.44 W | CE, CSA, UL, VDE | 2800 RPM | - | 3 Wire Leads | - |
|
|
DC0801524U2B-BT4FAN 80X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 43.0dB(A) | 11.52 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0801524H2B-BT4FAN 80X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 3.84 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
MS2006M05D-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
0 | - |
|
数据表 |
MS2006 | Box | Active | 12VDC | Square - 20mm L x 20mm H | 0.780 CFM (0.022m³/min) | 0.080 in H2O (20.0 Pa) | Sleeve | 0.007 lb (3.18 g) | Tubeaxial | - | 6.50mm | 21.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
CFM-A238V-121-370FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 37.0dB(A) | 3.33 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB0512VHD-SP01FAN BLOWER 52.1X31.5MM 12VDC |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 12VDC | Square/Rounded - 52.1mm L x 53.3mm H | 6.1 CFM (0.171m³/min) | 0.644 in H2O (160.4 Pa) | Ball | 0.057 lb (25.85 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.50mm | 32.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

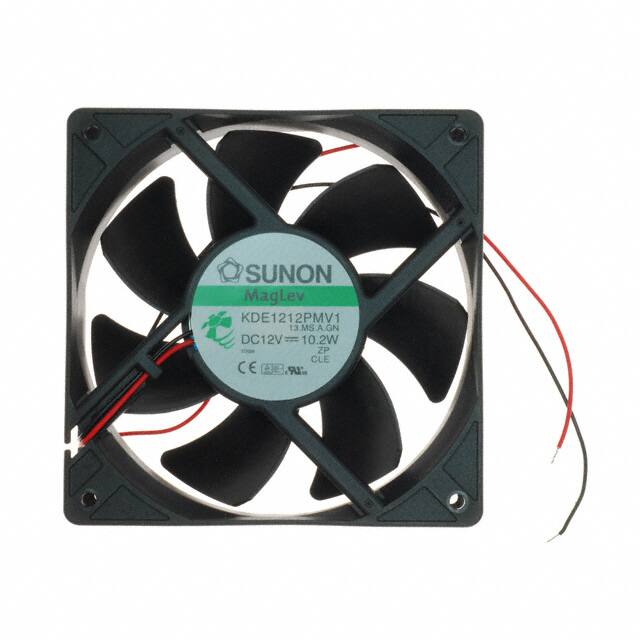

KDE1212PMV1.13.MS.A.GNFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® KDE | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | 0.661 lb (299.82 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 10.2 W | CE, CUR, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD6025-12HBIP68FAN AXIAL 60X25MM 12VDC WIRE |
1,109 | - |
|
数据表 |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (55.0 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 1.8 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
DC0602512L2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 31.0dB(A) | 1.44 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
109P0405H902FAN AXIAL 40X10MM BALL 5VDC WIRE |
1,372 | - |
|
数据表 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.042 lb (19.05 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 25.0dB(A) | 800 mW | CSA, TUV, UL | 6200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
AFB0412SHB-SP04FAN AXIAL 40X15MM 12VDC WIRE |
443 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 41.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602512M2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 1.8 W | CE, cURus, TUV | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602512J2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 26.0dB(A) | 960 mW | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
MEC0381V3-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
3,420 | - |
|
数据表 |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 37.0dB(A) | 2.9 W | CE, CUR, TUV, UL | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
