直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB04512HHA-CF00FAN BLOWER 45X10.3MM 12VDC WIRE |
1,792 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square - 45mm L x 45mm H | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.30mm | 35.5dB(A) | 1.56 W | CE, CSA, UL, VDE | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BFB04512VHDFAN BLOWER 45X20MM 12VDC WIRE |
1,686 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 6.0 CFM (0.168m³/min) | 0.557 in H2O (138.7 Pa) | Ball | 0.038 lb (17.24 g) | Blower | Locked Rotor Protection | 20.00mm | 30.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB04505HHA-CF00FAN BLOWER 45X10.3MM 5VDC WIRE |
324 | - |
|
数据表 |
BFB | Box | Active | 5VDC | Square - 45mm L x 45mm H | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.30mm | 35.5dB(A) | 1.25 W | CE, cURus, VDE | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8025BG-170-517-22FAN AXIAL 80X25.4MM 12VDC WIRE |
151 | - |
|
数据表 |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 72.4 CFM (2.03m³/min) | 0.840 in H2O (209.2 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 51.8dB(A) | 9 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MEC0252V1-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
1,562 | - |
|
数据表 |
MagLev® MEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 0.359 lb (162.84 g) | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 5 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

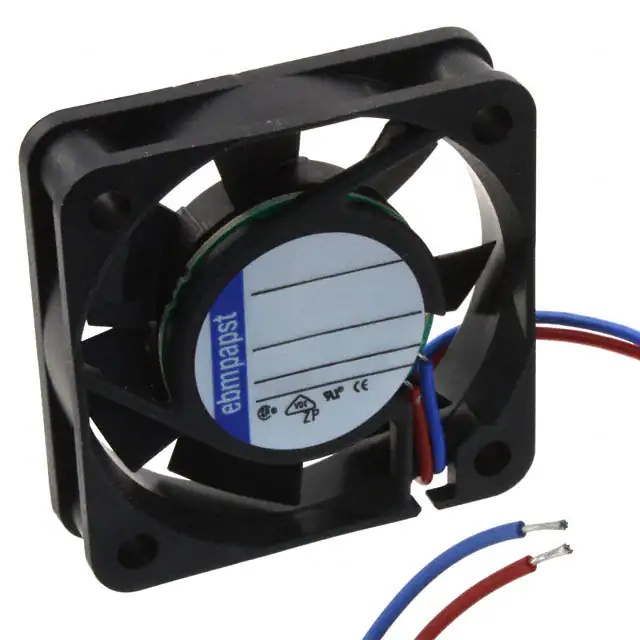

414FFAN AXIAL 40X10MM 24VDC WIRE |
1,157 | - |
|
数据表 |
400F | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | - | Sintec | 0.038 lb (17.24 g) | Tubeaxial | - | 10.00mm | 22.1dB(A) | 800 mW | CSA, UL, VDE | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

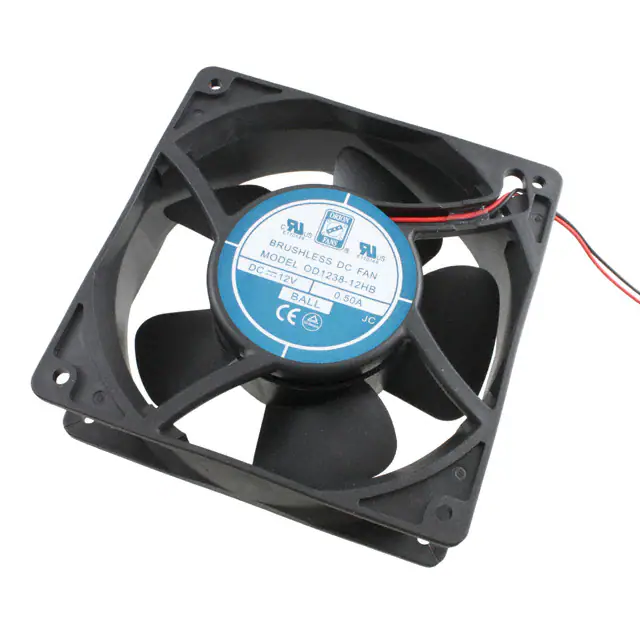

OD1238-12HBFAN AXIAL 120X38MM 12VDC WIRE |
2,475 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart | 38.00mm | 44.1dB(A) | 6 W | CE, cURus, TUV, UR | 2895 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
08028GS-12N-AA-00FAN BLOWER 78.9X28MM 12VDC WIRE |
178 | - |
|
数据表 |
08028GS | Box | Active | 12VDC | Rectangular/Rounded - 78.9mm L x 79.7mm H | 17.0 CFM (0.476m³/min) | 1.075 in H2O (267.8 Pa) | Sleeve | - | Blower | Auto Restart | 28.00mm | 40.0dB | 4.32 W | - | 3650 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
CFM-9232B-130-398-20FAN AXIAL 92.2X32MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.00mm | 39.9dB(A) | 3.84 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

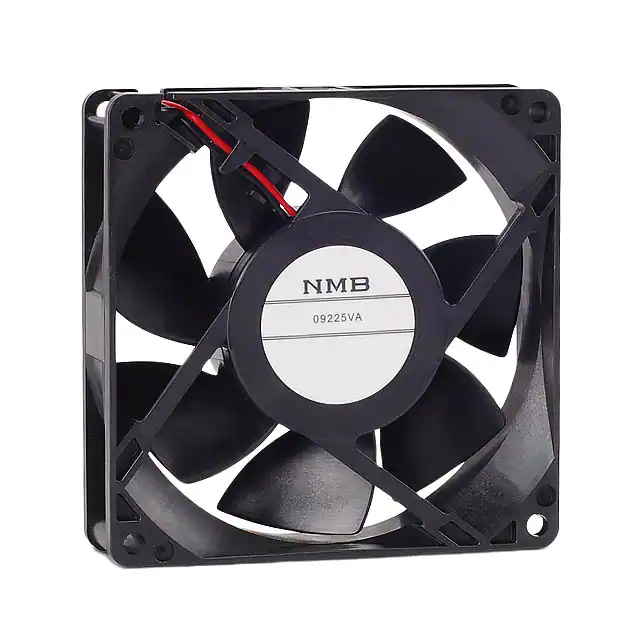

09225VA-12Q-CA-00FAN AXIAL 92X25MM 12VDC WIRE |
10,943 | - |
|
数据表 |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 51.0dB | 8.64 W | - | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
9GA0412P6H001FAN AXIAL 40X20MM 12VDC WIRE |
8,171 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.770 in H2O (191.8 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 40.0dB(A) | 1.68 W | CSA, TUV, UL | 12400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

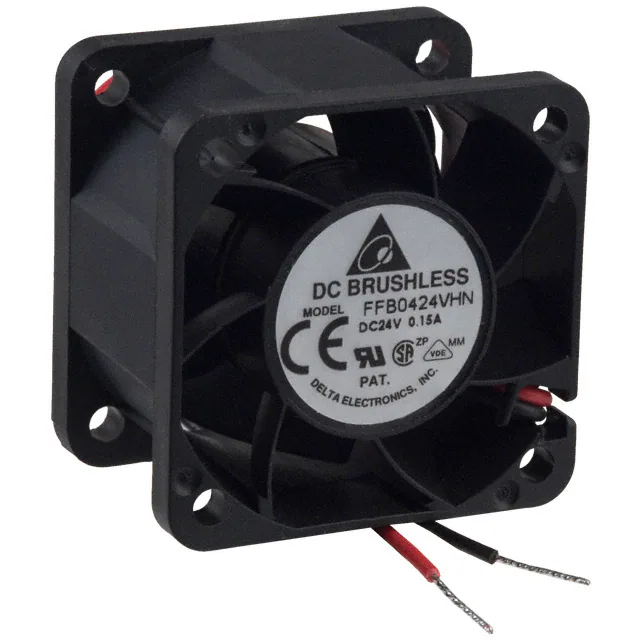

FFB0424VHNFAN AXIAL 40X28MM 24VDC WIRE |
1,449 | - |
|
数据表 |
FFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 45.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
FFB0412VHNFAN AXIAL 40X28MM 12VDC WIRE |
974 | - |
|
数据表 |
FFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 45.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0812SH-F00FAN AXIAL 80X25.4MM 12VDC WIRE |
2,802 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 40.0dB(A) | 4.08 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0812VHB-F00FAN AXIAL 80X15MM 12VDC WIRE |
1,319 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 39.2 CFM (1.10m³/min) | 0.188 in H2O (46.8 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 39.5dB(A) | 2.28 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD2510-12HBFAN AXIAL 25X10MM 12VDC WIRE |
1,365 | - |
|
数据表 |
OD2510 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.7 CFM (0.076m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.022 lb (9.98 g) | Tubeaxial | Auto Restart | 10.00mm | 31.0dB | 1.08 W | cURus, TUV | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD2510-05MBFAN AXIAL 25X10MM BALL 5VDC WIRE |
745 | - |
|
数据表 |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.022 lb (9.98 g) | Tubeaxial | Auto Restart | 10.00mm | 24.0dB | 600 mW | cURus, TUV | 10000 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
OD2510-12MBFAN AXIAL 25X10MM 12VDC WIRE |
522 | - |
|
数据表 |
OD2510 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | 0.022 lb (9.98 g) | Tubeaxial | Auto Restart | 10.00mm | 24.0dB | 960 mW | cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MS8025H12B-FHR-2EMFAN AXIAL 80X25.2MM 12VDC WIRE |
269 | - |
|
数据表 |
MS8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 70.5 CFM (1.97m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 0.172 lb (78.02 g) | Tubeaxial | Auto Restart | 25.20mm | 50.0dB(A) | - | - | 5000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
MS8025H24B-FHR-2EMFAN AXIAL 80X25.2MM 24VDC WIRE |
183 | - |
|
数据表 |
MS8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 70.5 CFM (1.97m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 0.172 lb (78.02 g) | Tubeaxial | Auto Restart | 25.20mm | 50.0dB(A) | - | - | 5000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
