直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0412K3013FAN AXIAL 40X28MM 12VDC WIRE |
2,978 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.8 CFM (0.582m³/min) | 1.365 in H2O (340.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 50.0dB(A) | 6.6 W | CSA, TUV, UL | 15500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0424R3013FAN AXIAL 40X28MM 24VDC WIRE |
371 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 18.0 CFM (0.504m³/min) | 1.057 in H2O (263.3 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 47.0dB(A) | 6 W | CSA, TUV, UL | 14000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
412FHFAN AXIAL 40X10MM 12VDC WIRE |
1,264 | - |
|
数据表 |
400F | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | - | Sintec | 0.038 lb (17.24 g) | Tubeaxial | - | 10.00mm | 26.0dB(A) | 800 mW | CSA, UL, VDE | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
OD9225-12HB01AFAN AXIAL 92.5X25MM 12VDC WIRE |
142 | - |
|
数据表 |
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 60.2 CFM (1.69m³/min) | 0.025 in H2O (6.2 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 38.0dB | - | cURus, TUV | 3325 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
AFB0412VB-AFAN AXIAL 40X15MM 12VDC WIRE |
379 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.2 CFM (0.426m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 46.0dB(A) | 2.52 W | cURus, TUV | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB0712HH-AWPHFAN BLOWER 75.7X25MM 12VDC WIRE |
2,374 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 15.3 CFM (0.428m³/min) | 0.977 in H2O (243.4 Pa) | Ball | - | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 51.0dB(A) | 4.08 W | CE, cURus, VDE | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

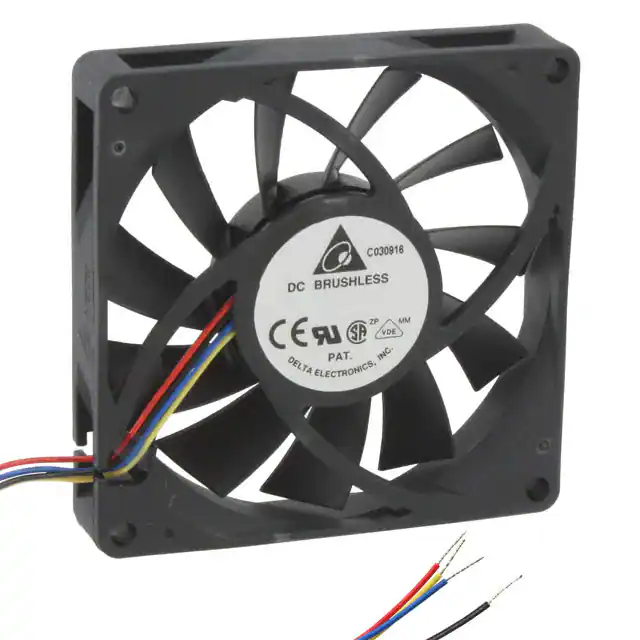

EFC0812DB-F00FAN AXIAL 80X15MM 12VDC WIRE |
487 | - |
|
数据表 |
EFC | Box | Active | 12VDC | Square - 80mm L x 80mm H | 48.8 CFM (1.37m³/min) | 0.171 in H2O (42.6 Pa) | Ball | 0.148 lb (67.13 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | 41.0dB(A) | 3.96 W | CE, CSA, UL, VDE | 3800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
AFB0912SH-AF00FAN AXIAL 92X25.4MM 12VDC WIRE |
1,598 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | 0.267 lb (121.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 53.0dB(A) | 9 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
412FMFAN AXIAL 40X10MM 12VDC WIRE |
552 | - |
|
数据表 |
400F | Box | Active | 12VDC | Square - 40mm L x 40mm H | 3.5 CFM (0.098m³/min) | - | Sintec | 0.038 lb (17.24 g) | Tubeaxial | - | 10.00mm | 16.5dB(A) | 600 mW | CSA, UL, VDE | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
DC0602548L2B-2T0FAN 60X25MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 31.0dB(A) | 5.76 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0602524L2B-3T0FAN 60X25MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602524J2B-3T0FAN 60X25MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 4.8 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602524M2B-3T0FAN 60X25MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 3.6 W | CE, cURus | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0702524H2B-BT4FAN 70X25MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.12 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0702548M2B-BT4FAN 70X25MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 4.32 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0702524U2B-BT4FAN 70X25MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 6.48 W | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0922512U2B-2T2FAN 92X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 45.0dB(A) | 3.6 W | CE, cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0301012U2B-2T2FAN 30X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 31.0dB(A) | 1.08 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
CFM-9232B-230-398-20FAN AXIAL 92.2X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.00mm | 39.9dB(A) | 3.6 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB0512HHA-CFAN BLOWER 50X10.3MM 12VDC WIRE |
12,027 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 4.0 CFM (0.112m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 0.05 lb (22.68 g) | Blower | Locked Rotor Protection | 10.30mm | 37.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
