直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0602512H2B-BT0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.126 lb (57.15 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 3.36 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0602548H2B-2T0FAN 60X25MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 13.44 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0602548J2B-2T0FAN 60X25MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 26.0dB(A) | 9.6 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0602524H2B-3T0FAN 60X25MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 6.72 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MR8025E12B1+6-FSRFAN AXIAL 80X25MM 12VDC WIRE |
229 | - |
|
数据表 |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 67.0 CFM (1.88m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 44.2dB(A) | - | CE, cUL, TUV, UL | 4800 RPM | - | 4 Wire Leads | - |
|

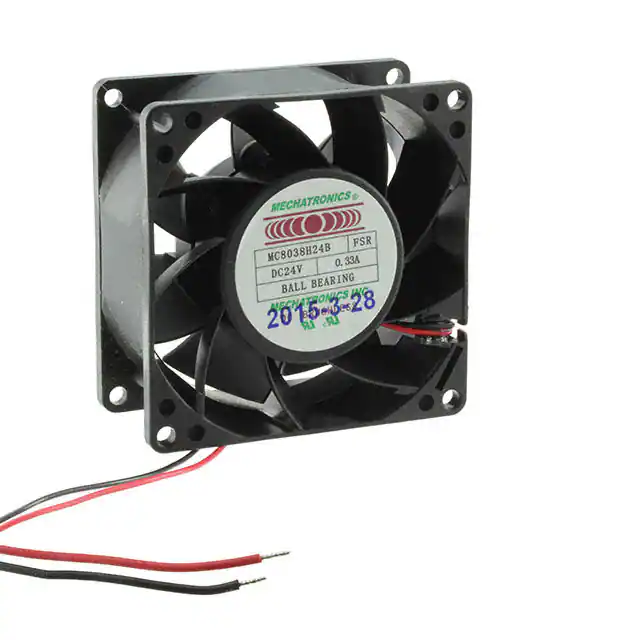

MC8038H24B-FSRFAN AXIAL 80X38MM 24VDC WIRE |
300 | - |
|
数据表 |
MC8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 48.2dB(A) | - | cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
109R0624M401FAN AXIAL 60X25MM 24VDC WIRE |
1,151 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | 960 mW | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109R0612S401FAN AXIAL 60X25MM 12VDC WIRE |
345 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.04 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109R0612G401FAN AXIAL 60X25MM 12VDC WIRE |
158 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 2.88 W | CSA, TUV, UL | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
AFB0412HHA-TA5FFAN AXIAL 40X10MM 12VDC WIRE |
2,268 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 31.5dB(A) | 600 mW | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
DC0402012V2B-BT0FAN AXIAL 40X20MM 12VDC WIRE |
309 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 19.8 CFM (0.554m³/min) | 1.440 in H2O (358.7 Pa) | Ball | 0.045 lb (20.41 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 53.0dB(A) | 4.92 W | CE, cURus, TUV | 16000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
FAD1-12032EBHW12FAN AXIAL 120X32.3MM 48VDC WIRE |
190 | - |
|
数据表 |
FAD1-12032 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 111.7 CFM (3.13m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 0.469 lb (212.73 g) | Tubeaxial | - | 32.30mm | 43.3dB(A) | 5.28 W | CE, cURus, TUV | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G6015M24B-RGR-EMFAN AXIAL 60X15MM 24VDC WIRE |
158 | - |
|
数据表 |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|
FFB0824EHEFAN AXIAL 80X38MM 24VDC WIRE |
4,694 | - |
|
数据表 |
FFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 52.5dB(A) | 12 W | CE, CSA, UL, VDE | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD1225-24MBFAN AXIAL 120X25MM 24VDC WIRE |
1,541 | - |
|
数据表 |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 35.0dB(A) | 4.1 W | CE, cURus, TUV, UR | 2500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

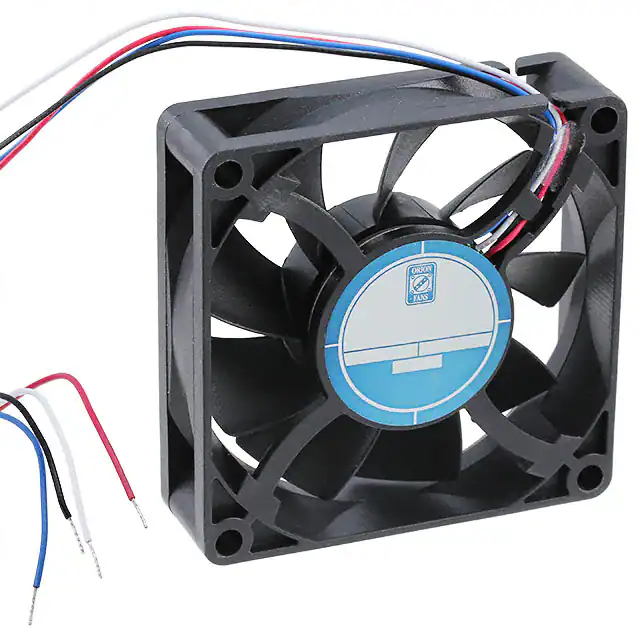

OD7020-12HHB10AFAN AXIAL 70X20MM 12VDC WIRE |
194 | - |
|
数据表 |
OD7020 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 45.0 CFM (1.26m³/min) | - | Ball | 0.137 lb (62.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | 43.0dB | 5.04 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
AFB0712HHBFAN AXIAL 70X15MM 12VDC WIRE |
912 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 37.5 CFM (1.05m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 38.5dB(A) | 3.12 W | CE, CSA, UL, VDE | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

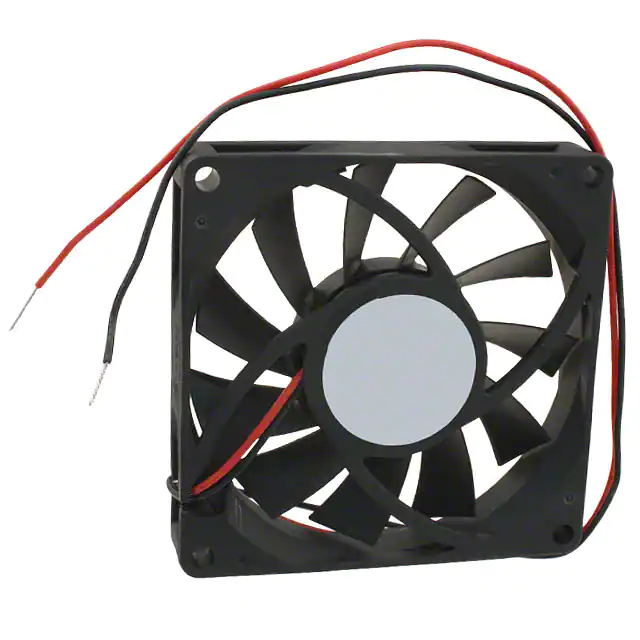

EFB0812HBFAN AXIAL 80X15MM 12VDC WIRE |
311 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.134 in H2O (33.5 Pa) | Ball | 0.148 lb (67.13 g) | Tubeaxial | - | 15.00mm | 37.0dB(A) | 2.52 W | CE, CSA, UL, VDE | 3300 RPM | - | 2 Wire Leads | - |
|
06015VE-12P-CT-00FAN AXIAL 60X15MM 12VDC WIRE |
195 | - |
|
数据表 |
06015VE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | 0.272 in H2O (67.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 36.5dB(A) | 1.56 W | CE, cULus, VDE | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
AFB0812HHFAN AXIAL 80X25.4MM 12VDC WIRE |
134 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 37.4 CFM (1.05m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 34.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
