直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-5015V-247-290-20FAN AXIAL 50X15MM 24VDC WIRE |
15 | - |
|
数据表 |
CFM-50V | Tray | Active | 24VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.083 lb (37.65 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 29.0dB(A) | 0.82 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
08015SS-24N-AL-00FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
08015SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 33.9 CFM (0.949m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 34.0dB | 2.88 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

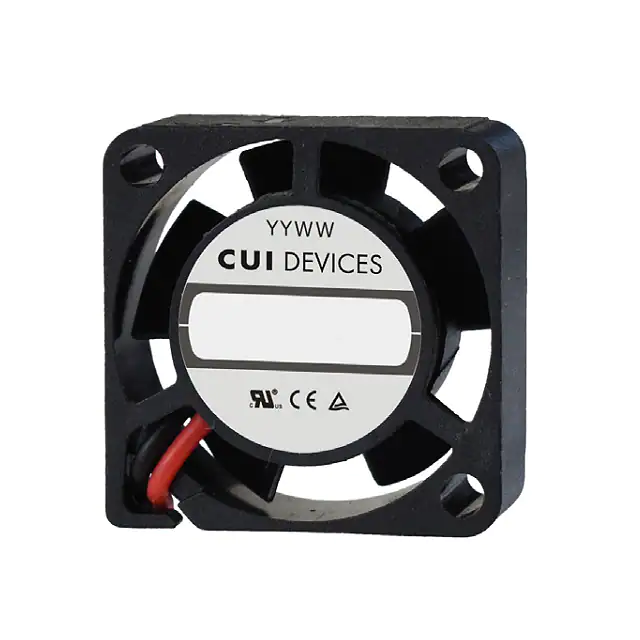

CFM-2510B-170-140FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.00mm | 14.1dB(A) | 720 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-2510B-1100-218FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.00mm | 21.8dB(A) | 960 mW | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-2510B-0100-218FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.00mm | 21.8dB(A) | 1.05 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6010C-150-326-22DC AXIAL FAN, 60 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-60C | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.1 CFM (0.507m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.50mm | 36.3dB(A) | 2.76 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
08025SS-24Q-AT-D0FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 54.7 CFM (1.53m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 39.5dB | 5.04 W | - | 4100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
06025SA-24L-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
19 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 23.5dB | 1 W | - | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-2510B-1130-275FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.5 CFM (0.070m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.00mm | 27.5dB(A) | 1.32 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06025SA-24Q-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 35.0dB | 2.4 W | - | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
ASB0312MA-DF00FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
ASB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | 0.017 lb (7.71 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 23.0dB(A) | 720 mW | cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08025SA-24N-AA-D0FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 30.0dB | 1.92 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-4007C-165-295-22DC BLOWER, 40 MM SQUARE, 7 MM, 1 |
0 | - |
|
数据表 |
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 1.9 CFM (0.053m³/min) | 0.710 in H2O (176.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | - | 7.00mm | 29.5dB(A) | 1.68 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
06025SA-12Q-AL-D0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 35.0dB | 3.4 W | - | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-4020BF-095-342-20FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 34.2dB(A) | 2.25 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4550HQ/EG50060S1-C391-S9AFAN BLOWER 81.8X17.2MM 5VDC RECT |
6 | - |
|
数据表 |
EG | Box | Active | 5VDC | Rectangular/Rounded - 81.8mm L x 81.3mm H | 6.3 CFM (0.176m³/min) | 0.820 in H2O (204.3 Pa) | Sleeve | 0.101 lb (45.81 g) | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 17.20mm | 40.2dB(A) | 1.9 W | CE, CSA, CUR, TUV, UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
AUB0912HH-CF00FAN AXIAL 92X25.4MM 12VDC |
5 | - |
|
数据表 |
AUB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.216 in H2O (53.9 Pa) | Superflo | 0.231 lb (104.78 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 41.0dB(A) | 3.96 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

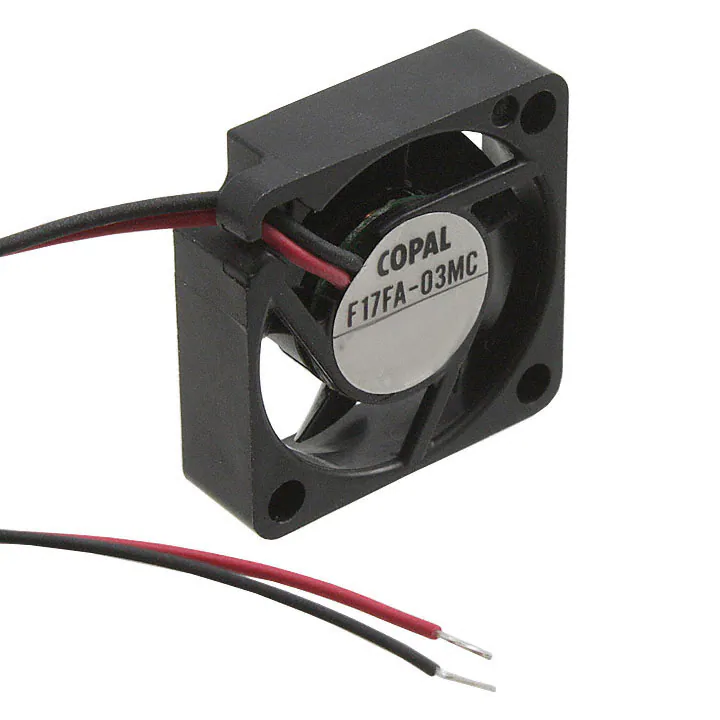

F17FA-03MCFAN AXIAL 17X5MM 3.3VDC WIRE |
1 | - |
|
数据表 |
F17FA | Tray | Active | 3.3VDC | Square - 17mm L x 17mm H | 0.353 CFM (0.010m³/min) | 0.024 in H2O (6.0 Pa) | Sleeve | - | Tubeaxial | - | 5.00mm | 5.0dB(A) | - | - | 7000 RPM | 32 ~ 140°F (0 ~ 60°C) | 2 Wire Leads | - |
|
F8025X24B-FSR-TEFFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 51.0 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
CFM-A225B-120-350FAN AXIAL 120X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 37.8dB(A) | 2.76 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
