直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

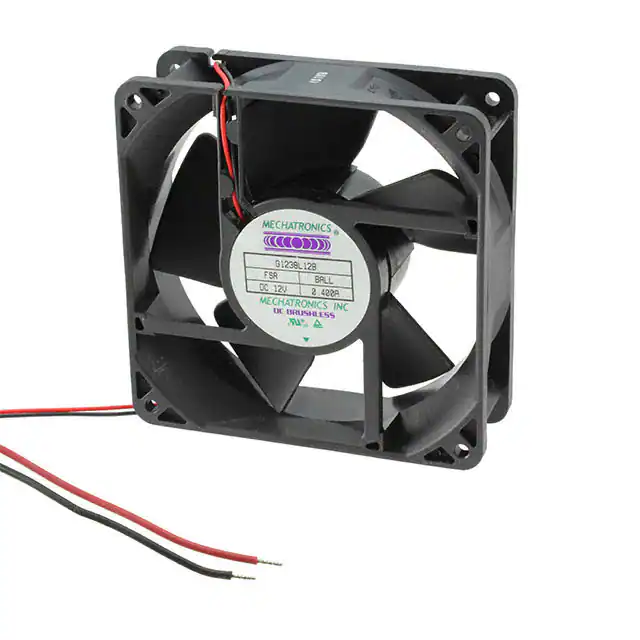

G1238L12B-FSRFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
CBM-A232B-230-521-20FAN BLOWER 119.3X32MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-120B-2 | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 27.7 CFM (0.776m³/min) | 1.350 in H2O (336.3 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 32.00mm | 52.1dB(A) | 12.96 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9RA0612P4J0011FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 41.0dB(A) | 4.2 W | cURus, TUV | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9G0612G101FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 18.5 W | CSA, TUV, UL | 11800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
AFC0712DB-F00FAN AXIAL 70X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFC | Box | Active | 12VDC | Square - 70mm L x 70mm H | 42.0 CFM (1.18m³/min) | 0.327 in H2O (81.4 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 46.5dB(A) | 4.2 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
|
11938KA-24N-EA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
3 | - |
|
数据表 |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 129.9 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.40mm | 50.0dB | 12 W | - | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9GA0424P6G001FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 1.280 in H2O (318.0 Pa) | Ball | 0.078 lb (35.38 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 47.0dB(A) | 3.12 W | CSA, TUV, UL | 16000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9S0812H401FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 39.5 CFM (1.11m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 2.76 W | CSA, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FFB0924SHEFAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 52.5dB(A) | 9.6 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FFB0412UHN-TYYKFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Not For New Designs | 12VDC | Square - 40mm L x 40mm H | 27.1 CFM (0.759m³/min) | 2.111 in H2O (525.8 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 58.5dB(A) | 7.8 W | CE, CSA, UL, VDE | 18500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
11925SE-24R-FTD-WFAN AXIAL 119X25MM 24VDC WIRE |
2 | - |
|
数据表 |
11925SE | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 128.2 CFM (3.59m³/min) | 0.357 in H2O (88.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 7.2 W | CE, cULus, VDE | 3500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9GA0824H7002FAN AXIAL 80X15MM 24VDC WIRE |
3 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.144 lb (65.32 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 29.0dB(A) | 1.2 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
FFB0924EHE-F00FAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 12 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
9A0824G4011FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 5.04 W | CSA, TUV, UL | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109R0824G401FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 4.8 W | CSA, TUV, UL | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
9S0912M401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | 1.32 W | CSA, TUV, UL | 2250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0624G6002FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 31.1 CFM (0.871m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 0.156 lb (70.76 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 43.0dB(A) | 2.88 W | CSA, TUV, UL | 6850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
AFB1212HHEFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 44.0dB(A) | 5.52 W | CE, CSA, UL, VDE | 2900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
GF60252BX-1000U-ADPFAN 60X25MM 24VDC GR487 |
5 | - |
|
数据表 |
GF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 54.8 CFM (1.53m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 55.4dB(A) | 13.08 W | CCC, CE, cURus, TUV | 12900 RPM | - | 2 Wire Leads | - |
|
FFB1212EH-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 56.4dB(A) | 17.4 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
