直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
06015KA-12M-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
1 | - |
|
数据表 |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.9 CFM (0.445m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 31.0dB | 1.6 W | - | 4100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
BFB0305HA-CF00FAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 29.0dB(A) | 650 mW | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DB0751512M2B-2T0FAN BLOWER 77X15.5MM 12VDC WIRE |
0 | - |
|
数据表 |
DB | Box | Active | 12VDC | Rectangular/Rounded - 77mm L x 75mm H | 9.7 CFM (0.272m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Blower | Locked Rotor Protection | 15.50mm | 47.0dB(A) | 3.84 W | CE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
CBM-5015BF-175-459-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 | - |
|
数据表 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 4.8 CFM (0.134m³/min) | 1.240 in H2O (308.9 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.00mm | 45.9dB(A) | 3.96 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
08020SA-12L-EA-00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | - | 20.00mm | 34.0dB | 1.08 W | - | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0601512U2B-2T0FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 37.0dB(A) | 2.04 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
04020VA-12M-AA-00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 29.0dB | 1 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025CBHW12-AFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 33.1dB(A) | 2.76 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6025BF-190-479FAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.720 in H2O (179.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 47.9dB(A) | 8.28 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4132/MF30100V1-1000U-A99FAN AXIAL 30X10MM VAPO 5VDC |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart | 10.00mm | 23.0dB(A) | 600 mW | cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
06025SA-12S-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 42.5dB | 4.1 W | - | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0824VHFAN AXIAL 80X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 38.0dB(A) | 3.36 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06025SE-24R-FT-DWFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
06025SE | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 30.0 CFM (0.840m³/min) | 0.405 in H2O (100.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 38.5dB(A) | 2.4 W | CE, cULus, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
9A0624H402FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 28.0dB(A) | 1.44 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0424H701FAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 28.0dB(A) | 1.92 W | CSA, TUV, UL | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
G8032M12B-RSR-L15FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.286 lb (129.73 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 38.0dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 2 Wire Leads | - |
|
|
9GA0412G7002FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.7 CFM (0.356m³/min) | 0.770 in H2O (191.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 42.0dB(A) | 2.04 W | CSA, TUV, UL | 13100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

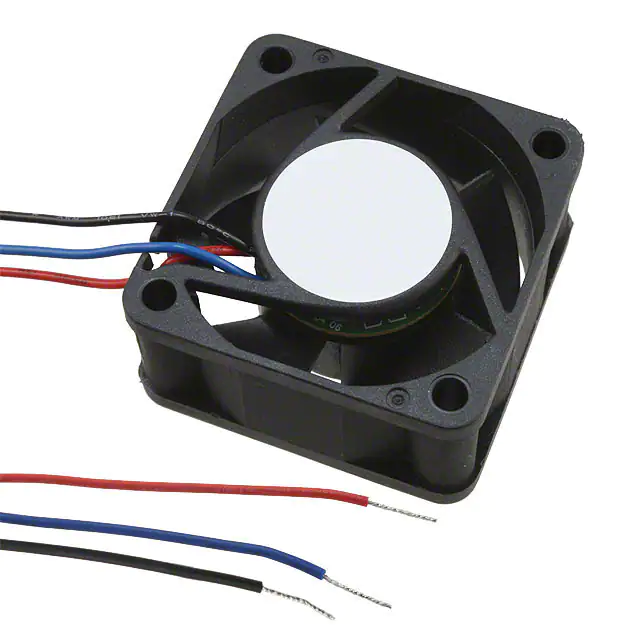

EFB0412MD-R00FAN AXIAL 40X20MM 12VDC WIRE |
1 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 24.0dB(A) | 720 mW | CE, CSA, UL, VDE | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

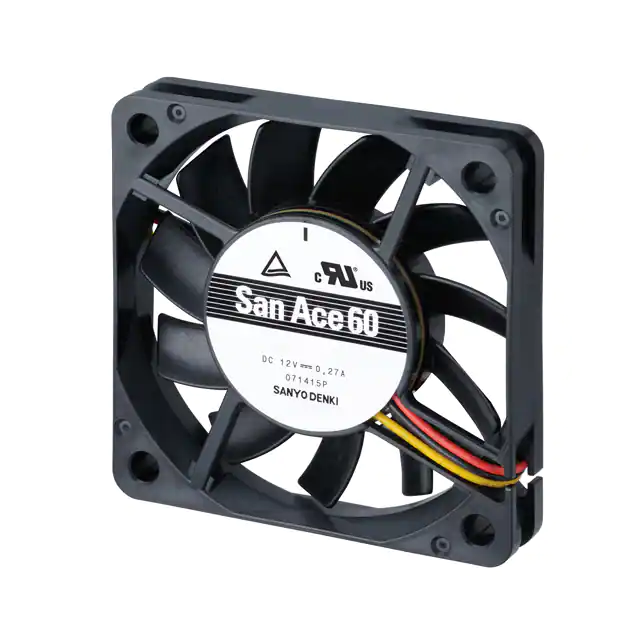

9GA0612H9001FAN AXIAL 60X10MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 17.6 CFM (0.493m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 37.0dB(A) | 1.68 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109P0624W601FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 31.0dB(A) | 1.68 W | CSA, TUV, UL | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
