直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0412EN-EFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 38.0 CFM (1.06m³/min) | 7.430 in H2O (1850.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 70.5dB(A) | 31.2 W | CE, cURus, TUV | 32500 RPM | 14 ~ 176°F (-10 ~ 80°C) | 4 Wire Leads | - |
|
AFB0824GHEFAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 99.0 CFM (2.77m³/min) | 1.006 in H2O (250.6 Pa) | Ball | 0.344 lb (156.04 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 54.0dB(A) | 15.6 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

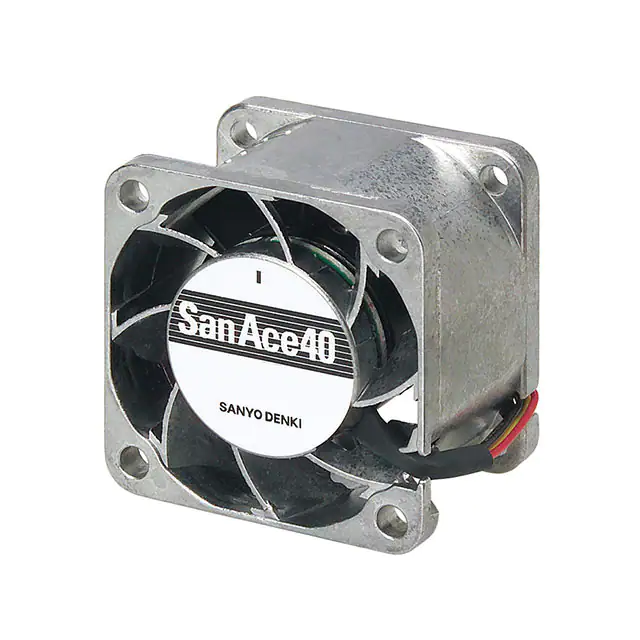

9GE0412P3J03FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 24.4 CFM (0.683m³/min) | 1.378 in H2O (343.2 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 56.0dB(A) | 7.8 W | CSA, TUV, UL | 15000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
THA0412BNFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
THA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 29.5 CFM (0.826m³/min) | 2.400 in H2O (597.8 Pa) | Ball | 0.102 lb (46.27 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 59.0dB(A) | 10.68 W | CE, cURus, TUV | 19000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0824H7D001FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.144 lb (65.32 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 29.0dB(A) | 1.2 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
AFC0612DE-AF00FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
AFC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 66.7 CFM (1.87m³/min) | 1.739 in H2O (433.2 Pa) | Ball | 0.258 lb (117.03 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 61.5dB(A) | 18 W | CE, TUV, UL | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9WP0412H6001FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 33.0dB(A) | 1.2 W | CSA, TUV, UL | 8000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9GA0624P1K03FAN AXIAL 60X38MM 24VDC WIRE |
3 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 53.0 CFM (1.48m³/min) | 2.400 in H2O (597.8 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 59.0dB(A) | 12 W | CSA, TUV, UL | 14800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GA0912P4S03FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 59.0 CFM (1.65m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.4 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0912P4G03FAN AXIAL 92X25MM 12VDC WIRE |
3 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 68.1 CFM (1.91m³/min) | 0.326 in H2O (81.2 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 3.36 W | CSA, TUV, UL | 4400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9G0624P4S001FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.16 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
AFB1224SHE-T50FFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 12 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
612NLEFAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 12.4 CFM (0.347m³/min) | - | Ball | 0.146 lb (66.22 g) | Tubeaxial | - | 25.40mm | 16.0dB(A) | 400 mW | CE, CSA, UL, VDE | 2500 RPM | -4 ~ 185°F (-20 ~ 85°C) | 2 Wire Leads | - |
|
9RA1212P4G001FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 6.6 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9L0412H301FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40L | Box | Active | 12VDC | Square - 40mm L x 40mm H | 13.1 CFM (0.367m³/min) | 0.426 in H2O (106.1 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Speed Sensor (Tach) | 28.00mm | 40.0dB(A) | 1.8 W | CSA, TUV, UL | 8400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

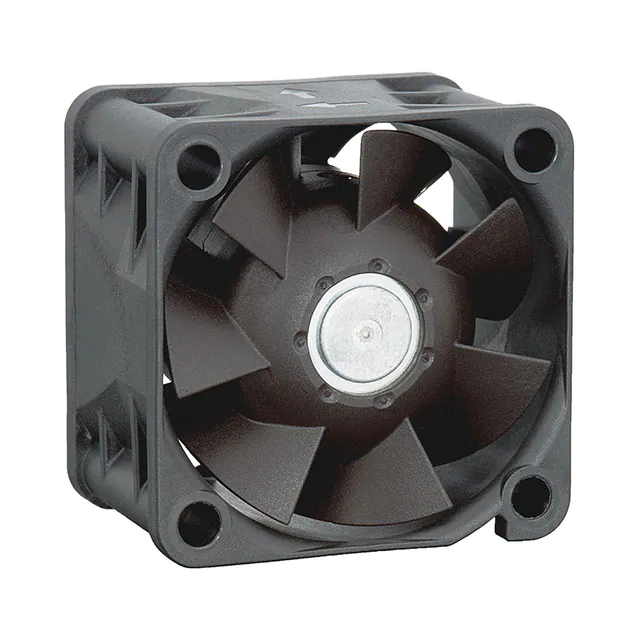

422JNFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
420J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 18.3 CFM (0.512m³/min) | - | Ball | 0.099 lb (44.91 g) | Tubeaxial | - | 28.00mm | 48.0dB(A) | 4 W | CSA, UL, VDE | 14000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9G0848G101FAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 13 W | CSA, TUV, UL | 6300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9CRA0412P4K03FAN AXIAL DUAL 40X48MM 12VDC |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 32.5 CFM (0.910m³/min) | 2.610 in H2O (650.1 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.00mm | 64.0dB(A) | 19.2 W | cURus, TUV | 17500 Front, 11700 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
PFC0648SE-00P8FAN AXIAL 60X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PFC | Box | Active | 48VDC | Square - 60mm L x 60mm H | 65.3 CFM (1.83m³/min) | 3.503 in H2O (872.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 69.0dB(A) | 24.96 W | CE, cURus, TUV | 17000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | - |
|
9HVA0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 37.1 CFM (1.04m³/min) | 9.240 in H2O (2300.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 71.0dB(A) | 31.2 W | cURus, TUV | 38000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
