直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BCB1012UH-F00FAN BLOWER 97.2X25MM 12VDC WIRE |
0 | - |
|
数据表 |
BCB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 35.3 CFM (0.988m³/min) | 4.053 in H2O (1009.6 Pa) | Ball | 0.391 lb (177.35 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 67.8dB(A) | 38.4 W | CE, CSA, UL, VDE | 9300 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
9GA0812P1G61FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 100.6 CFM (2.82m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 14.4 W | CSA, TUV, UL | 10500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
PFB0612EE-EFAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 77.0 CFM (2.16m³/min) | 7.310 in H2O (1820.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 68.6dB(A) | 42 W | CE, cURus, TUV | 25500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
414J/2HHFAN AXIAL 40X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
400J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 14.1 CFM (0.395m³/min) | - | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 46.0dB(A) | 3.6 W | - | 13000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
4414MFAN AXIAL 119X38MM 24VDC WIRE |
1 | - |
|
数据表 |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 108.3 CFM (3.03m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 42.0dB(A) | 4.1 W | - | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
OD1238-24HBVXC10AFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1238 VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB | 40.8 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
8218JNFAN AXIAL 80X38MM 48VDC WIRE |
4 | - |
|
数据表 |
8200J | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 78.0 CFM (2.18m³/min) | - | Ball | 0.353 lb (160.12 g) | Tubeaxial | - | 38.00mm | 55.0dB(A) | 11 W | - | 8400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9WPA0412H6001FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 34.0dB(A) | 900 mW | CE, cURus, TUV, UR | 8800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
PFB1224UHEFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 66.5dB(A) | 48 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
PFB1224UHE-R00FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 66.5dB(A) | 48 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
9BFB24P2H003FAN BLOWER 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B120 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 56.5 CFM (1.58m³/min) | 5.020 in H2O (1250.0 Pa) | Ball | 0.75 lb (340.19 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | 62.0dB(A) | 26.4 W | cURus, TUV | 3750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9WPA0612P4G001FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 56.0dB(A) | 11.16 W | - | 12000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9TD12P6G001FAN IMP MTRZD 70X20MM 12VDC |
0 | - |
|
数据表 |
San Ace C70 | Bulk | Active | 12VDC | Round - 70mm Dia | 39.9 CFM (1.12m³/min) | 2.240 in H2O (557.9 Pa) | Ball | 0.199 lb (90.26 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 20.00mm | 61.0dB(A) | 12 W | cURus, TUV | 9200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
3214JHFAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
3200J | Box | Active | 24VDC | Square - 92mm L x 92mm H | 86.0 CFM (2.41m³/min) | - | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 38.00mm | 55.0dB(A) | 9 W | CSA, UL, VDE | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
MA1751H24B1+6-FSRFAN AXIAL 172X50.8MM 24VDC WIRE |
0 | - |
|
数据表 |
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 243.6 CFM (6.82m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 50.80mm | 58.4dB(A) | - | cUL, TUV, UL | 2850 RPM | - | 4 Wire Leads | - |
|
634NU-004FAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
630U | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | - | Ball | 0.154 lb (69.85 g) | Tubeaxial | - | 25.40mm | 34.0dB(A) | 1.6 W | UL | 5900 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

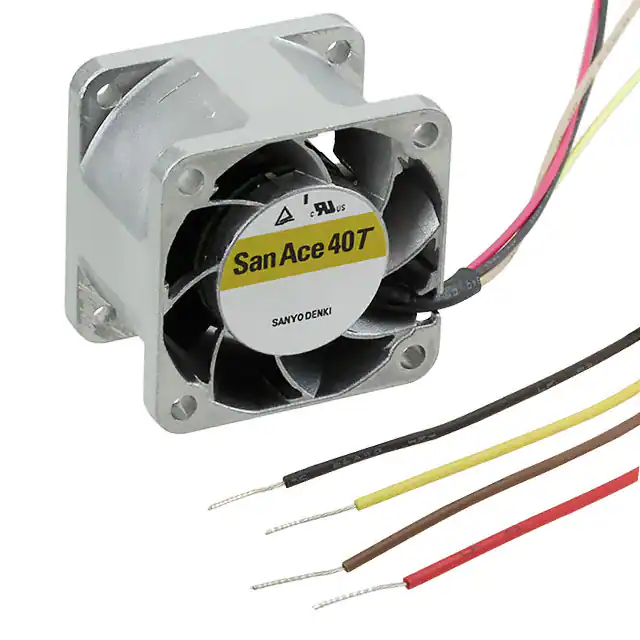

9GT0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40T | Box | Active | 12VDC | Square - 40mm L x 40mm H | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 48.0dB(A) | 3.72 W | CSA, TUV, UL | 11700 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|

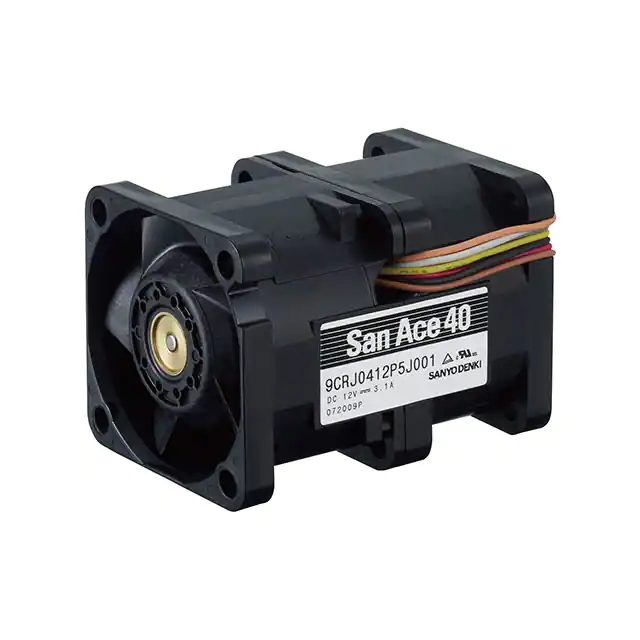

9CRJ0412P5J001FAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 37.4 CFM (1.05m³/min) | 9.640 in H2O (2401.2 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 72.0dB(A) | 37.2 W | - | 36200 Front, 3200 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
9LG0648P4S001FAN AXIAL 60X25MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 48VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.224 in H2O (304.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.64 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GA1224P4G0011FAN AXIAL 120X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 57.0dB(A) | 11.28 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
