直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG0924P1F001FAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | 0.604 lb (273.97 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 12 W | CSA, TUV, UL | 7000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9WPA0924S400192X25MM 24VDC IP68 HIGH PERF TAC |
0 | - |
|
数据表 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
614J/2HHPR-010FAN AXIAL 60X32MM 24VDC WIRE |
0 | - |
|
数据表 |
600J | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 48.9 CFM (1.37m³/min) | 2.288 in H2O (570.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | 62.0dB(A) | 14.2 W | CE, UL, VDE | 15000 RPM | -40 ~ 172°F (-40 ~ 78°C) | 4 Wire Leads | - |
|

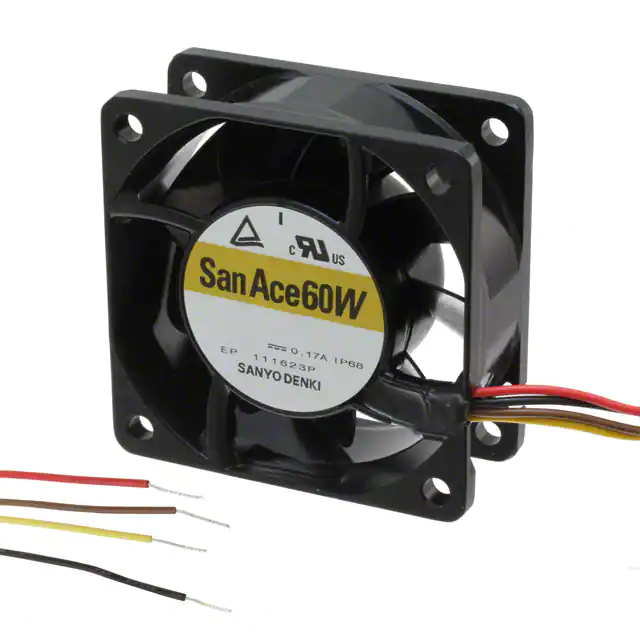

9WL0612P4J001FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 4.68 W | CSA, TUV, UL | 8650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
EFB1548VHG-TP14FAN AXIAL 172X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
EFB | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.0dB(A) | 23.52 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
8315100162FAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
AxiForce | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 126.5 CFM (3.54m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 76.0dB(A) | 44 W | - | 16500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
8315100165FAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
AxiForce | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 103.0 CFM (2.88m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 71.0dB(A) | 25 W | - | 13200 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WL0924P1F001FAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92W | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 12 W | cURus, TUV | 7000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

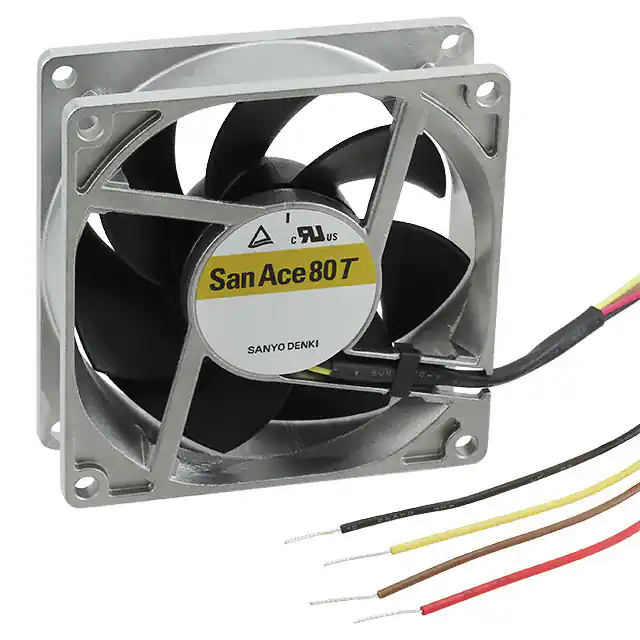

9GT0824P4S001FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80T | Box | Active | 24VDC | Square - 80mm L x 80mm H | 65.7 CFM (1.84m³/min) | 0.574 in H2O (143.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 46.0dB(A) | 5.28 W | CSA, TUV, UL | 6700 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|
19040396AFAN AXIAL 254X88.9MM 24V CD24R7X |
0 | - |
|
数据表 |
Caravel | Box | Active | 24VDC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 88.90mm | 47.5dB(A) | 29 W | CSA, TUV, UL | 1650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
_Series.JPG)
|
6224NFAN AXL 171.5X50.8MM 24VDC TERM |
1 | - |
|
数据表 |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 241.3 CFM (6.76m³/min) | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 55.0dB(A) | 18 W | CE, CSA, UL, VDE | 3400 RPM | -4 ~ 162°F (-20 ~ 72°C) | 2 Terminals | - |
|

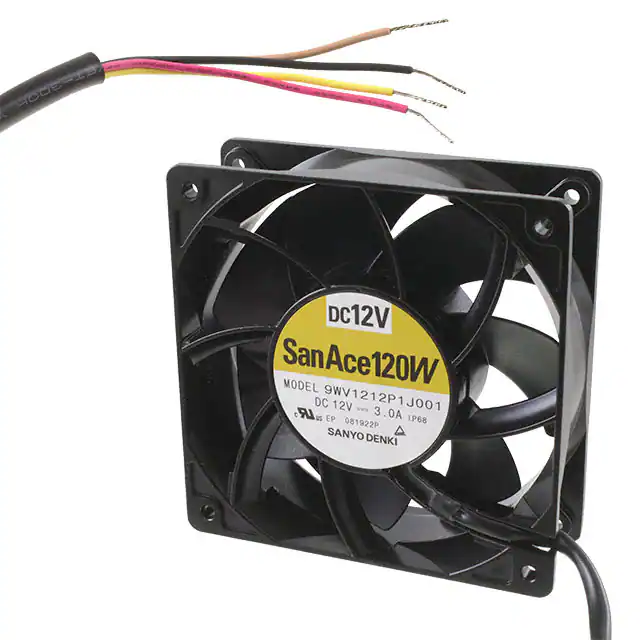

9WV1212P1J001FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9CRA0948P0G601FAN AXIAL DUAL 92X76MM 48VDC |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 205.0 CFM (5.74m³/min) | 6.630 in H2O (1651.4 Pa) | Ball | 1.1 lbs (510.0 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.00mm | 81.0dB(A) | 105.6 W | cURus, TUV | 13300 Front, 12200 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
9LG1248P1G001FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | 0.926 lb (420.03 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 38.4 W | CSA, TUV, UL | 6550 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
OD254AP-24HB10AFAN AXIAL 254X89MM 24VDC WIRE |
0 | - |
|
数据表 |
OD254 | Bulk | Active | 24VDC | Round - 254mm Dia | 850.0 CFM (23.80m³/min) | 0.830 in H2O (206.7 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 89.00mm | 64.0dB | 64 W | cURus, TUV | 2500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|
4114N/2H8PFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 336.0 CFM (9.41m³/min) | - | Ball | 0.937 lb (425.02 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 78.0dB(A) | 120 W | - | 11000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|
|
THD2348MU-00FAN AXIAL 240X100MM 48VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 48VDC | Round - 240mm Dia | 915.0 CFM (25.62m³/min) | 2.291 in H2O (570.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 100.00mm | 70.0dB(A) | 180 W | CE, cURus, TUV | 5000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
F175G3-061-D0540FAN IMP MTRZD 175X69MM 24VDC |
0 | - |
|
数据表 |
F175 | Bulk | Active | 24VDC | Round - 175mm Dia | 476.7 CFM (13.35m³/min) | 2.970 in H2O (740.0 Pa) | Ball | - | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 69.00mm | 73.0dB(A) | 88.8 W | CE, cURus | 4200 RPM | -22 ~ 140°F (-30 ~ 60°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9W2TJ24P0H001FAN IMP MTRZD 133X91MM 24VDC |
0 | - |
|
数据表 |
San Ace 133W | Box | Active | 24VDC | Round - 133mm Dia | 225.0 CFM (6.30m³/min) | 1.590 in H2O (396.1 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 91.00mm | 61.0dB(A) | 28.8 W | - | 4150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
W3G300-BV12-41FAN AXIAL 340X76.5MM 13VDC RECT |
0 | - |
|
数据表 |
W2G300 | Bulk | Active | 13VDC | Round - 340mm Dia | 942.4 CFM (26.39m³/min) | - | Ball | - | Tubeaxial | - | 76.50mm | 75.0dB(A) | 220 W | EAC | 3200 RPM | -40 ~ 185°F (-40 ~ 85°C) | 6 Position Rectangular Connector | - |
