直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K3G097-AP46-01FAN BLOWER CF 139.5X351MM 26VDC |
0 | - |
|
数据表 |
K3G097AP | Bulk | Active | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 294.5 CFM (8.25m³/min) | 2.377 in H2O (592.0 Pa) | Ball | - | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 351.0mm | 70.0dB(A) | 320 W | EAC | 3500 RPM | - | 4 Position Rectangular Connector | - |
|
CFM-4010C-165-251FAN AXIAL 40X10.5MM 12VDC WIRE |
5 | - |
|
数据表 |
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 10.50mm | 25.1dB(A) | 720 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

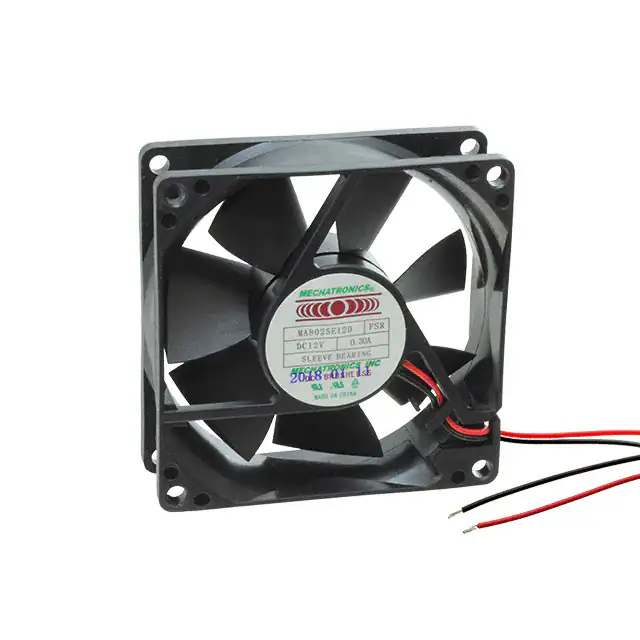

MA8025E12D-FSRFAN 80X25MM SLEEVE 12VDC WIRE |
25 | - |
|
数据表 |
MA8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Sleeve | - | - | - | 25.00mm | - | - | cUL, UL | - | - | 2 Wire Leads | - |
|
MF50151V1-1000U-G99FAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | 0.073 lb (33.11 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 33.0dB(A) | 870 mW | cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-4010V-170-273-20FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 27.3dB(A) | 710 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-4020CF-235-114FAN AXIAL 40X20MM 24VDC WIRE |
15 | - |
|
数据表 |
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 20.00mm | 11.4dB(A) | 960 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-4020CF-095-342FAN AXIAL 40X20MM 5VDC WIRE |
21 | - |
|
数据表 |
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 20.00mm | 34.2dB(A) | 2.35 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CBM-4010C-160-267FAN BLOWER 39.5X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-40C | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 1.8 CFM (0.050m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | - | 10.00mm | 26.7dB(A) | 1.32 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EF60252S1-1000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
EF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | 0.101 lb (45.81 g) | Tubeaxial | Auto Restart | 25.00mm | 27.0dB(A) | 1.2 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-4020CF-295-342-20FAN AXIAL 40X20MM 24VDC WIRE |
17 | - |
|
数据表 |
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 34.2dB(A) | 360 mW | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-4020CF-075-306-20FAN AXIAL 40X20MM 5VDC WIRE |
1 | - |
|
数据表 |
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.6dB(A) | 1.6 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-3007CF-085-264-20DC AXIAL FAN, 30 MM SQUARE, 7 MM |
7 | - |
|
数据表 |
CFM-30CF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 2.8 CFM (0.078m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 7.50mm | 26.4dB(A) | 1 W | CE, cURus, TUV | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
4149/EF80251S1-1000U-A99FAN AXIAL 80X25MM 12VDC |
0 | - |
|
数据表 |
EF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 0.167 lb (75.75 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB(A) | 1.44 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|

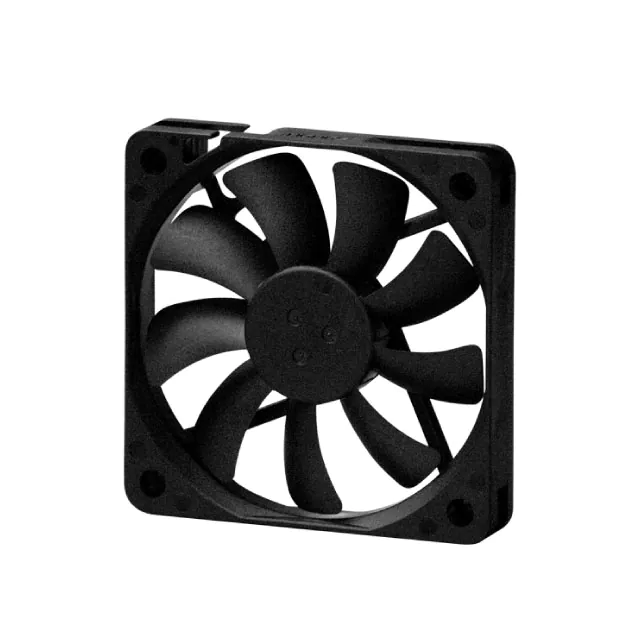

MF60101V1-1000U-G99FAN AXIAL 60X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 16.3 CFM (0.456m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.051 lb (23.13 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 28.5dB(A) | 1.3 W | cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-3007CF-0110-320-22DC AXIAL FAN, 30 MM SQUARE, 7 MM |
7 | - |
|
数据表 |
CFM-30CF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 3.6 CFM (0.101m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 7.50mm | 32.0dB(A) | 1.2 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-4010C-265-251FAN AXIAL 40X10.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-40C | Box | Active | 24VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 10.50mm | 25.1dB(A) | 1.2 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-2010CF-160-066DC AXIAL FAN, 20 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 0.600 CFM (0.017m³/min) | 0.030 in H2O (7.5 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 10.30mm | 6.6dB(A) | 600 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6015V-139-292-20FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 22.8 CFM (0.638m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.078 lb (35.38 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 29.2dB(A) | 950 mW | CE, cURus, TUV | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08015SS-24L-AA-00FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
08015SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 26.8 CFM (0.750m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 15.00mm | 27.5dB | 1.68 W | - | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-3010B-0130-373-22FAN AXIAL 30X10.5MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.1 CFM (0.115m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.50mm | 37.3dB(A) | 2.55 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
