直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0412H3D013FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Sensor | 28.00mm | 37.0dB(A) | 2.34 W | CSA, TUV, UL | 8700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
07530GA-12M-AA-00FAN BLOWER 75.7X30MM 12VDC WIRE |
4 | - |
|
数据表 |
07530GA | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 10.5 CFM (0.294m³/min) | 0.440 in H2O (109.6 Pa) | Ball | - | Blower | Auto Restart | 30.00mm | 38.5dB | 3.48 W | - | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9S0912P4F011FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.68 W | CSA, TUV, UL | 2650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
109R0605M402FAN AXIAL 60X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 20.0dB(A) | 650 mW | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109R0612G402FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 39.0dB(A) | 2.88 W | CSA, TUV, UL | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
MC8038U24B-FSRFAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
MC8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 95.6 CFM (2.68m³/min) | 1.150 in H2O (286.5 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 60.2dB(A) | - | cUL, TUV, UL | 6800 RPM | - | 2 Wire Leads | - |
|

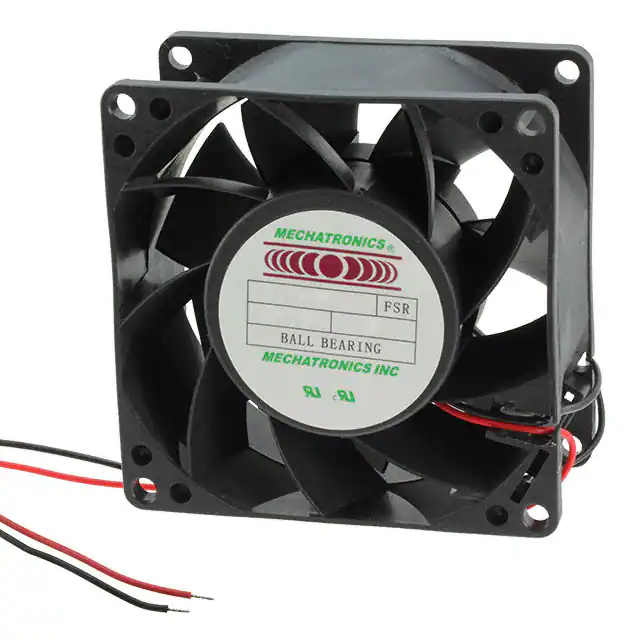

MC8038U12B-FSRFAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 95.6 CFM (2.68m³/min) | 1.150 in H2O (286.5 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 60.2dB(A) | - | cUL, TUV, UL | 6800 RPM | - | 2 Wire Leads | - |
|
109R0624D4D01FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 37.0dB(A) | 2.88 W | CSA, TUV, UL | 5150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109R0612S4D01FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 2.04 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
AFB0824HHFAN AXIAL 80X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.4 CFM (1.05m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 34.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
F6025X24B1-FHR-WS-EMFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 3 Wire Leads | IP57 - Dust Protected, Waterproof |
|
ODB5115-12LBFAN BLOWER 51.11X15MM 12VDC WIRE |
0 | - |
|
数据表 |
ODB5115 | Bulk | Active | 12VDC | Rectangular/Rounded - 51.11mm L x 47.76mm H | 2.4 CFM (0.067m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.059 lb (26.76 g) | Blower | - | 15.00mm | 32.0dB | 840 mW | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
11925SA-12N-EAD-0FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
11925SA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 37.0dB | 2.88 W | - | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
04028VE-24N-CT-00FAN AXIAL 40X28.1MM 24VDC WIRE |
3 | - |
|
数据表 |
04028VE | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 14.5 CFM (0.406m³/min) | 0.840 in H2O (209.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.10mm | 44.5dB(A) | 2.4 W | CE, cULus, VDE | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
04028VE-12N-CT-00FAN AXIAL 40X28.1MM 12VDC WIRE |
0 | - |
|
数据表 |
04028VE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 14.5 CFM (0.406m³/min) | 0.840 in H2O (209.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.10mm | 44.5dB(A) | 2.76 W | CE, cULus, VDE | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
G9225E24B1-FSR-TTL-EMFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 3 Wire Leads | - |
|
MS8038H48B-FHR-2EMFAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MS8038-H | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 0.391 lb (177.35 g) | Tubeaxial | Auto Restart | 38.00mm | 77.0dB(A) | - | - | 10000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
F1238X24BT-FSRFAN AXIAL 119X38MM 24VDC TERM |
0 | - |
|
数据表 |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.536 lb (243.13 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.00mm | 45.0dB(A) | - | CE, cUL, TUV, UL | 3100 RPM | - | 2 Terminals | - |
|
9GA0412P3J011FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.664m³/min) | 2.150 in H2O (535.0 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 54.0dB(A) | 5.88 W | CSA, TUV, UL | 18000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9RA0612J40011FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 41.0dB(A) | 4.2 W | cURus, TUV | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
